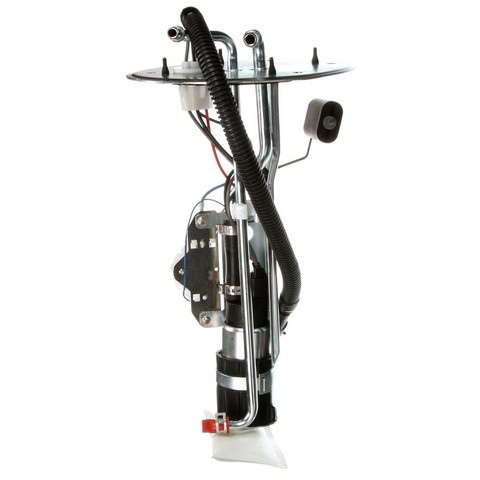

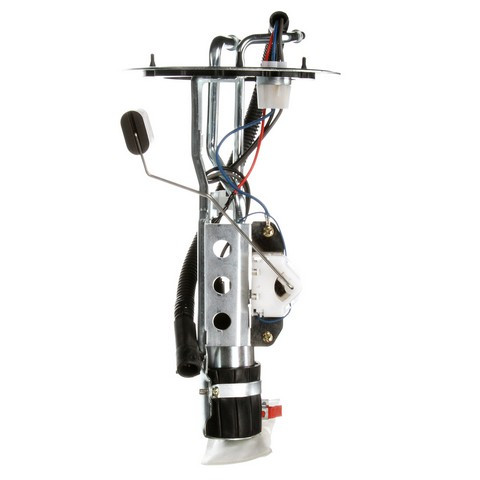

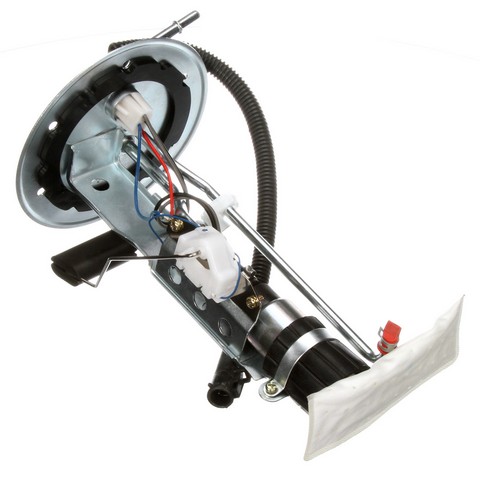

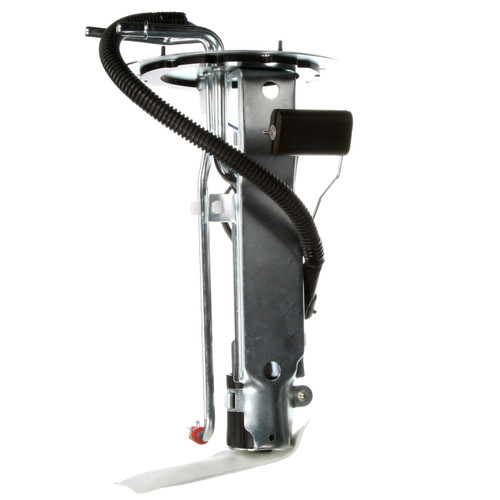

Delphi HP10127 fuel pump and sender assembly for the 2003 Ford E-150 V6 4.2L, V8 4.6L or 5.4L and other vehicles carries fuel from the tank to the engine. Every Delphi fuel pump is built to Delphi's OE standards, and the float arm reports the fuel level to the gauge.
- The Delphi pump is designed for extreme temperatures and quick engine starts
- Metal tubes are routed so they never touch the tank, which removes noise and vibration during operation
- Float height when empty and float retention are set to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Designed to give fast pressure performance and system integrity with less energy
Quick facts
- Part: Delphi HP10127 fuel pump and sender assembly
- Fits: 2003 Ford E-150 V6 4.2L, V8 4.6L or 5.4L and other vehicles
- Condition: New
A hard start, stalling or an erratic fuel gauge can point to a worn assembly, but a clogged fuel filter, a failed relay or a damaged wire can be behind them too, so find the cause before you buy. If the pump or float arm is at fault, this Delphi fuel pump assembly replaces them.
Fits
It is listed for a wide range of Ford models. It is a direct-fit replacement for the 2003 Ford E-150 V6 4.2L, V8 4.6L or 5.4L, the 2003 Ford E-150 Club Wagon V6 4.2L, V8 4.6L or 5.4L and the 2003 Ford E-250 V6 4.2L, V8 4.6L or 5.4L, and each takes one. If your vehicle is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box
One fuel pump and sender assembly with float arm, six bolts, seven washers, two retainer clips and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the assembly.
- An instruction sheet comes with the part.
Frequently Asked Questions
Is this the right E-150 fuel pump for a 2003 Ford E-150 with the V8 5.4L?
Yes. Delphi HP10127 is listed for the 2003 Ford E-150 with the V6 4.2L, V8 4.6L or 5.4L, and each takes one.
What parts come with the Delphi fuel pump assembly HP10127?
Delphi HP10127 comes with the float arm, six bolts, seven washers, two retainer clips and an instruction sheet.
Is the float on this Delphi fuel pump replacement set for correct gauge readings?
Yes. Its empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Do I need to clean the fuel tank when installing this fuel pump and sender assembly?
Yes. The fuel tank should be checked and cleaned before this assembly goes in, and the instruction sheet that comes with it covers the steps.
Can a wrong gas gauge reading mean the sender on this fuel pump hanger is worn?
It can, since the float arm sets the gauge reading, but a gauge or wiring fault can cause it too. If the sender is the cause, Delphi HP10127 replaces it with a new float arm.
