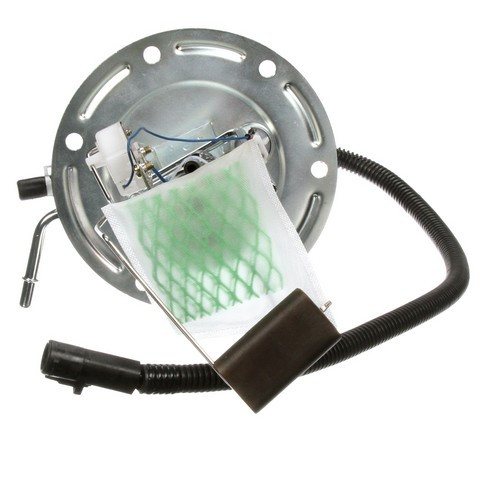

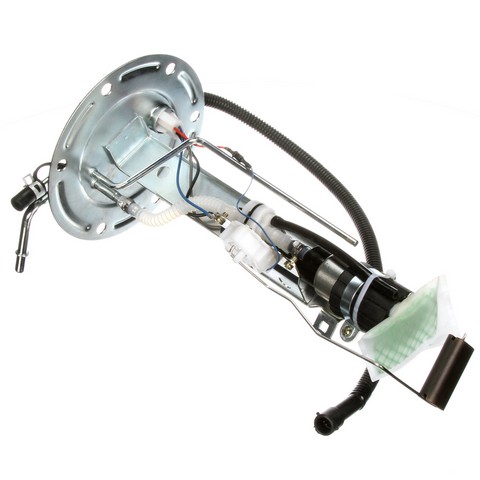

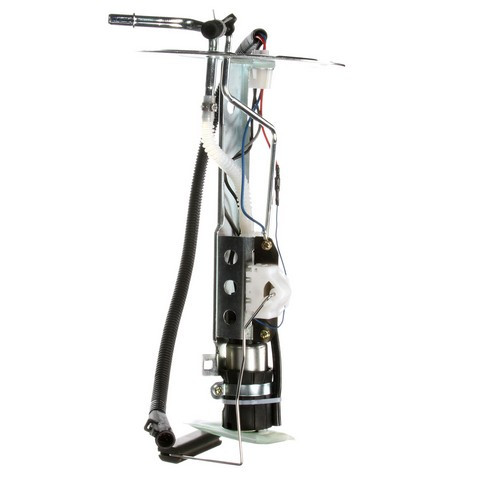

Delphi HP10216 fuel pump and sender assembly for the 2004 Ford E-450 Super Duty V8 5.4L, the 2004-2008 E-450 Super Duty V10 6.8L, the 2006-2008 E-450 Super Duty V8 5.4L and other vehicles pumps fuel from the tank toward the engine while its float arm reports the fuel level to the gauge. As a Delphi fuel pump, it is built to Delphi's OE standards.
- Delphi pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes in the hanger are routed so they never contact the tank, which eliminates noise and vibration during operation
- Empty float height and float retention are set for correct gas gauge readings
- Designed for fast pressure performance and system integrity with less energy use
- Lower amperage draw puts less load on the vehicle's electrical system
- Fuel pump and sender assembly is validated and tested
Quick facts
- Part: Delphi HP10216 fuel pump and sender assembly
- Fits: the 2004 Ford E-450 Super Duty V8 5.4L, the 2004-2008 E-450 Super Duty V10 6.8L, the 2006-2008 E-450 Super Duty V8 5.4L and other vehicles
Hard starting or stalling can be signs of a worn pump, but those signs alone do not prove it; a clogged fuel filter is another common cause. If the pump is the cause, this Delphi fuel pump assembly replaces the pump and sender together.
Fits
It is listed for a wide range of Ford models, including the 2004-2006 Ford E-250 V8 4.6L and the 2004-2008 E-250 V8 5.4L, and the 2004-2008 E-350 Super Duty V8 5.4L or V10 6.8L; each takes one.
Specifications
- Quantity per vehicle: 1
- Construction: fuel pump and sender assembly with float arm and metal tubes
In the box

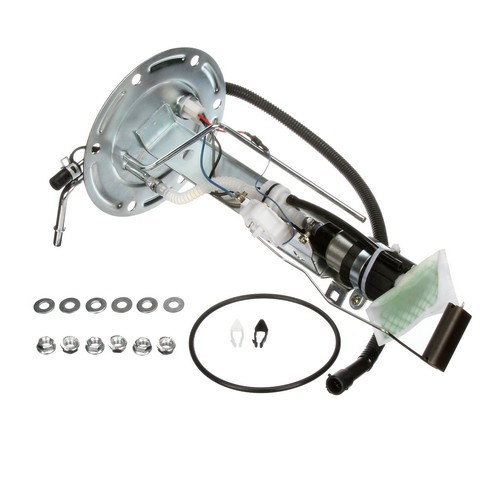

One fuel pump and sender assembly with float arm, one seal, six nuts, six washers, two retainer clips and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the assembly.
- An instruction sheet comes with the part for the steps.
Interchange: 953-4033 · 4C2Z 9H307-CB · 6C2Z 9H307-CA · PFS-298
E2437S · DHP10216 · F1448A · P76304 · P76545H · P76545S · AFS0903S · RE0903S · D0095H · A30138 · SP1396 · SP2091H · USEP2437S
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E2437S, DHP10216, F1448A, P76304, P76545H, P76545S, 953-4033, AFS0903S, RE0903S, 4C2Z 9H307-CB, 6C2Z 9H307-CA, PFS-298, D0095H, A30138, SP1396, SP2091H, USEP2437S
Frequently Asked Questions
Is this Ford E-250 fuel pump the right one for a 2004-2006 model with the V8 4.6L?
Yes. Delphi HP10216 is listed for the 2004-2006 Ford E-250 V8 4.6L and the 2004-2008 E-250 V8 5.4L, one per vehicle. If your vehicle isn't named here, look up its year and engine in the "Vehicles it fits" section.
Is this Delphi fuel pump replacement sold with the nuts and retainer clips?
Yes. Delphi HP10216 comes with the float arm, a seal, six nuts, six washers, two retainer clips and an instruction sheet.
Will the float on this fuel pump and sender assembly read the gas gauge correctly?
Yes. The empty float height and float retention on this fuel pump and sender assembly match OE specifications, which sets up a correct gas gauge reading.
What signs can mean a fuel pump and sender assembly is wearing out?
Engine sputtering, a whine from the tank or a gas gauge that reads wrong can be signs. A shop can test the fuel system to confirm.
Does Delphi HP10216 replace the number 6C2Z 9H307-CA?
Yes. 6C2Z 9H307-CA is one of the numbers Delphi HP10216 replaces, along with 4C2Z 9H307-CB and 953-4033.
