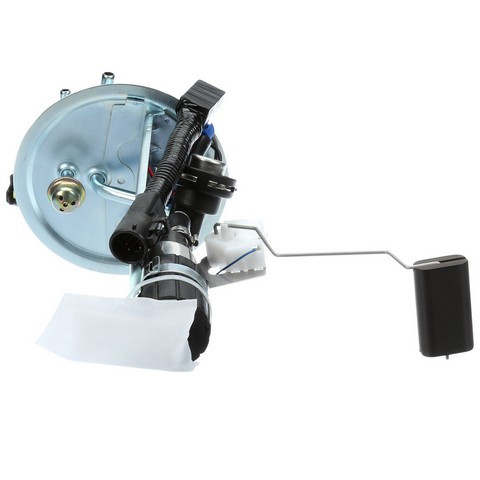

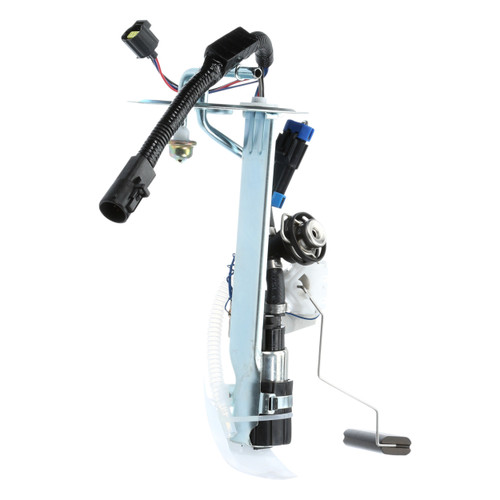

Delphi HP10213 fuel pump and sender assembly for the 1999 Ford Ranger V6 3.0L and other vehicles pumps fuel and reports tank level. Delphi builds its fuel pumps to its own OE standards.
- Pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which removes noise and vibration while driving
- Float height when empty and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested assembly
Quick facts
- Part: Delphi HP10213 fuel pump and sender assembly
- Fits: 1999 Ford Ranger V6 3.0L and other vehicles
- Condition: New
A hard start, sputtering or a gas gauge that reads wrong can mean the pump or float arm is wearing out. A blown fuel pump fuse can look much the same, so check that fuse by eye with the engine off before you replace the assembly.
Fits
This fuel pump and sender assembly fits the 1999 Ford Ranger V6 3.0L and the 1999 Mazda B3000 V6 3.0L. The 1999 Ford Ranger V6 3.0L takes one.
Specifications
- Quantity per vehicle: 1
- Type: fuel pump hanger assembly with float arm
- Condition: New
In the box
One fuel pump and sender assembly with float arm, one seal, two retainer clips and an instruction sheet.
Installation notes
- Check and clean the fuel tank when the assembly is out.
- An instruction sheet comes with the part.
Interchange: XL5Z 9H307-CB · XL5Z 9H307-CG · ZZR3-13-350 · ZZR3-13-350B · PFS-425
4011132 · E2258 · E2260S · DHP10213 · 67150 · 67157 · 69128 · P74889S · P76538 · RE0325S · A30355 · C0071H · E16091 · SP1180 · SP2064H · USEP2260S
This part cross-references / interchanges with the following part numbers:
4011132, E2258, E2260S, DHP10213, 67150, 67157, 69128, P74889S, P76538, RE0325S, XL5Z 9H307-CB, XL5Z 9H307-CG, A30355, ZZR3-13-350, ZZR3-13-350B, PFS-425, C0071H, E16091, SP1180, SP2064H, USEP2260S
Frequently Asked Questions
Is this the right fuel pump for the 1999 Ford Ranger V6 3.0L?
Yes. Delphi HP10213 fits the 1999 Ford Ranger V6 3.0L, and the 1999 Mazda B3000 V6 3.0L takes the same assembly.
Does the HP10213 come with a seal and retainer clips?
Yes. The Delphi HP10213 comes with the float arm, a seal, two retainer clips and an instruction sheet.
Do I need to clean the tank when changing a Delphi fuel pump?
Yes. Checking and cleaning the fuel tank is part of the job when the assembly is out, and the instruction sheet that comes with the part covers the steps.
Could a gas gauge that reads wrong mean the sender assembly is failing?
It can. A worn float arm or pump can show up as an erratic gauge or hard starting, but other causes are possible, so a shop can test fuel pressure to confirm.
Does the Delphi fuel pump assembly replace number XL5Z 9H307-CB?
Yes. XL5Z 9H307-CB is one of the numbers this assembly replaces, and Delphi HP10213 is the part number to look for.
