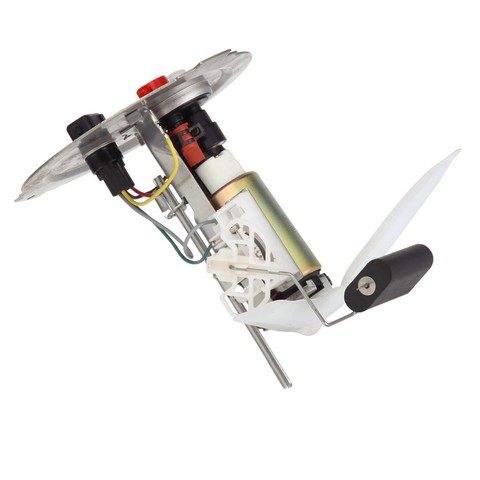

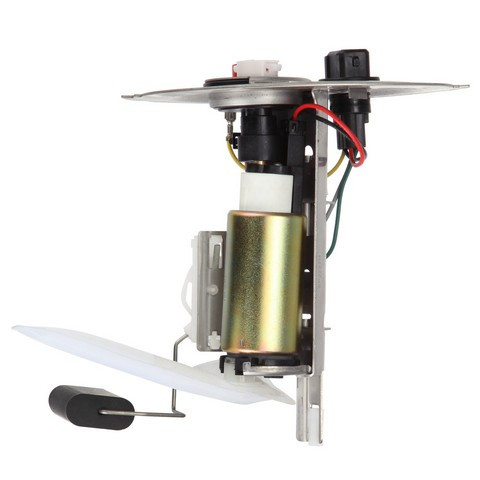

Delphi HP10224 fuel pump and sender assembly for the 1998-1999 Ford Contour V6 2.5L and other vehicles moves fuel from the tank toward the engine and sends the fuel level to the gauge. This Delphi fuel pump hanger assembly comes with a float arm and seal, and it works as a Delphi fuel pump replacement when the original pump or sender is the problem.
- Delphi pump designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank at any point, which removes noise and vibration while driving
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
Quick facts
- Part: Delphi HP10224 fuel pump and sender assembly
- Fits: 1998-1999 Ford Contour V6 2.5L and other vehicles
- Condition: New
Hard starting, sputtering under load, a whine from the tank or a fuel gauge that reads wrong can point to a worn pump or sender. A clogged fuel filter is another common source of weak fuel delivery, so these signs alone do not prove this assembly is at fault.
Fits
This Delphi fuel pump assembly fits the 1998-1999 Ford Contour V6 2.5L, the 1998-1999 Mercury Mystique V6 2.5L and the 1999 Mercury Cougar V6 2.5L, with one assembly per car.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V6-2.5L
Build and materials
- Construction: hanger assembly with float arm and seal
- Condition: New
In the box

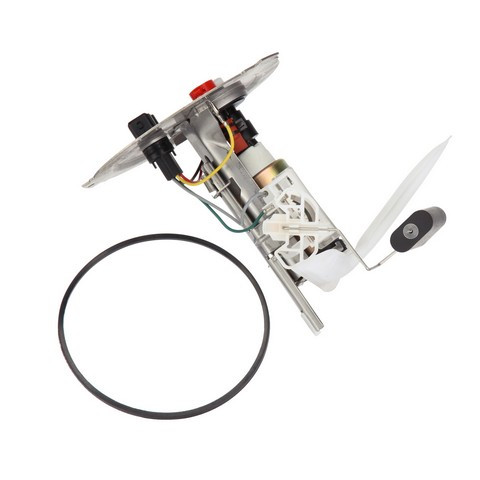

One fuel pump and sender assembly with float arm, a seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the assembly.
- The instruction sheet in the box covers the steps.
Interchange: 951-0016 · F8RZ 9350-AA · F8RZ 9H307-AE · PFS-216
4010115 · 4010155 · E2471 · CHP10224 · 69131 · 69134 · P74869S · P88004 · E16006 · SP1113 · SP2188H · SP2227H
This part cross-references / interchanges with the following part numbers:
4010115, 4010155, E2471, CHP10224, 69131, 69134, P74869S, P88004, 951-0016, F8RZ 9350-AA, F8RZ 9H307-AE, PFS-216, E16006, SP1113, SP2188H, SP2227H
Frequently Asked Questions
Is Delphi HP10224 the 1998 Ford Contour fuel pump for the 1998-1999 Ford Contour V6 2.5L?
Yes. Delphi HP10224 is listed for the 1998-1999 Ford Contour V6 2.5L, with one assembly per car.
What comes with the Delphi HP10224 hanger besides the pump?
The Delphi HP10224 fuel pump and sender assembly ships with its float arm, a seal and an instruction sheet.
Will the float arm on this hanger give a correct gas gauge reading?
Yes. The empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
What can a whine from the tank mean on this fuel pump and sender assembly?
A whine from the tank, hard starting or a gauge that reads wrong can mean the pump or sender is wearing. A shop can test fuel pressure to confirm.
Should the fuel tank be cleaned before installing this hanger assembly?
Yes. Check and clean the fuel tank first, and follow the instruction sheet that comes with Delphi HP10224 for the steps.
