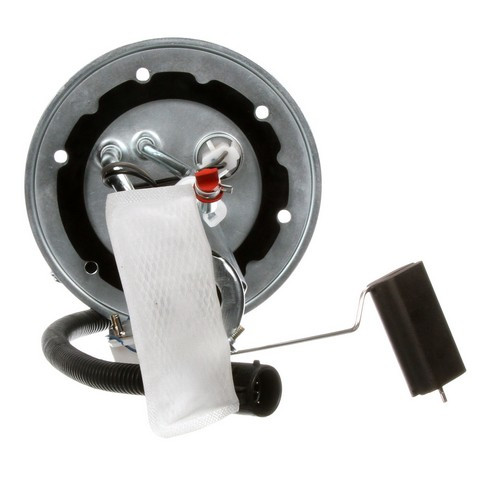

Delphi HP10128 fuel pump and sender assembly for the 1997-1998 Ford Explorer V6 4.0L or V8 5.0L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump comes as a hanger assembly with a float arm that reads the fuel level, and it is built to Delphi's OE standards.
- Designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed so they never touch the tank, which removes noise and vibration while driving
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw, so less load on the vehicle's electrical system
- Validated and tested design with lower failure rates
Quick facts
- Part: Delphi HP10128 fuel pump and sender assembly
- Fits: 1997-1998 Ford Explorer V6 4.0L or V8 5.0L and other vehicles
- Condition: New
Hard starting, stumbling under load or a fuel gauge that reads wrong can mean the pump or sender is wearing out. None of these alone proves the pump is the problem; a clogged fuel filter can act much the same way.
Fits
It fits the 1997-1998 Ford Explorer V6 4.0L or V8 5.0L, the 1997-1998 Mercury Mountaineer V8 5.0L and the 1998 Mountaineer V6 4.0L, with one assembly per vehicle.
Specifications
- Quantity per vehicle: 1
- Type: fuel pump hanger assembly with float arm
- Condition: New
In the box

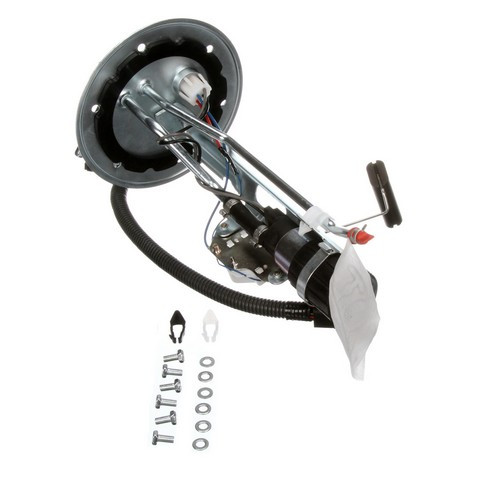

One fuel pump and sender assembly with float arm, six bolts, six washers, two retainer clips and an instruction sheet.
Installation notes
- An instruction sheet comes with the part for the installation steps.
- Check and clean the fuel tank when installing the pump.
Interchange: 951-0008 · 953-4093 · F7PU 9H307-BD · F7PZ 9H307-BD · F7PZ 9H307-BE · PFS-58
4010118 · 4017374 · E2266S · E2471 · DHP10128 · F1277A · 67155 · 69128 · 69134 · HS2328173 · P74178 · P74805S · AFS0198S · RE0198S · C0076H · A30087 · E16006 · SP1113 · SP2266H · USEP2266S
This part cross-references / interchanges with the following part numbers:
4010118, 4017374, E2266S, E2471, DHP10128, F1277A, 67155, 69128, 69134, HS2328173, P74178, P74805S, 951-0008, 953-4093, AFS0198S, RE0198S, F7PU 9H307-BD, F7PZ 9H307-BD, F7PZ 9H307-BE, PFS-58, C0076H, A30087, E16006, SP1113, SP2266H, USEP2266S
Frequently Asked Questions
Is this fuel pump for the 1997-1998 Ford Explorer V6 4.0L or V8 5.0L the same part for both engines?
Yes. Delphi HP10128 is listed for the 1997-1998 Ford Explorer with the V6 4.0L and with the V8 5.0L, and each Explorer takes one.
Does the 1998 Mercury Mountaineer V6 4.0L use this same assembly?
Yes. Delphi HP10128 is listed for the 1998 Mercury Mountaineer V6 4.0L and for the 1997-1998 Mountaineer V8 5.0L.
What does this Delphi fuel pump assembly include?
Delphi HP10128 comes with the float arm, six bolts, six washers, two retainer clips and an instruction sheet.
Will this Delphi Technologies fuel pump give a correct fuel gauge reading?
Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Should the fuel tank be cleaned before installing this pump?
Yes, the tank should be checked and cleaned during installation, and an instruction sheet comes in the box with the part.
