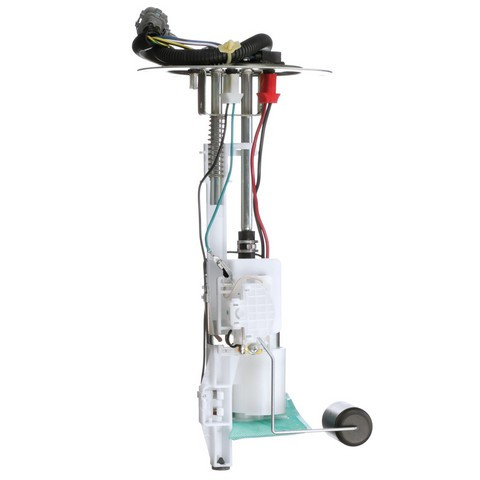

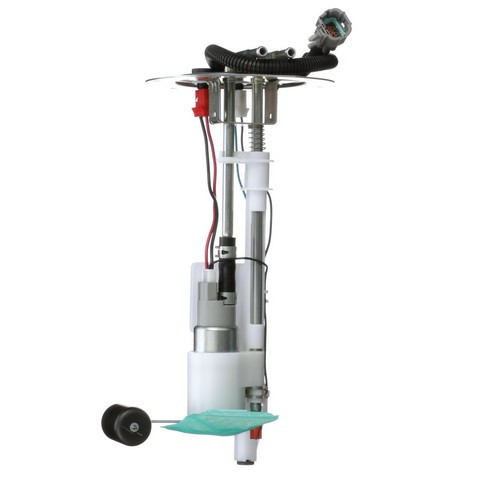

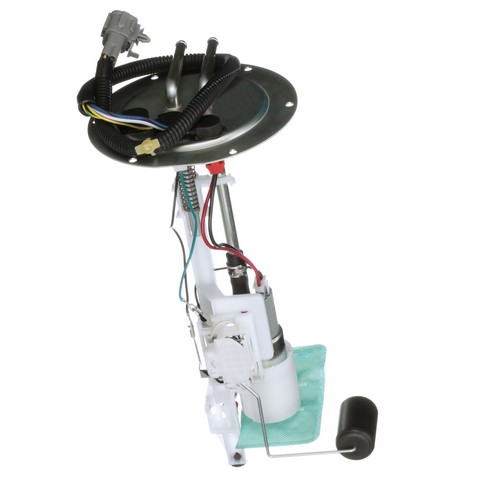

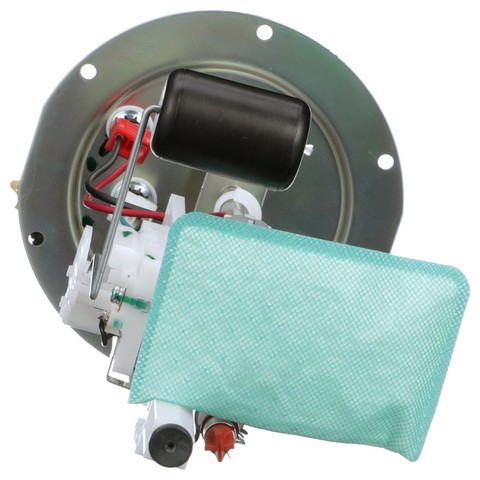

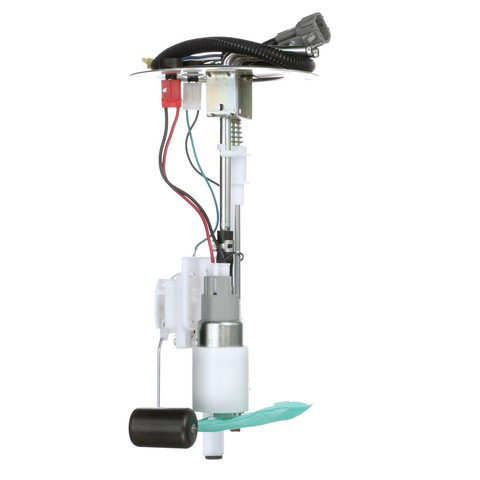

Delphi HP10257 fuel pump hanger for the 1998-2004 Nissan Frontier 4-cylinder 2.4L mounts in the fuel tank and carries the float arm and metal tubes. The float arm tracks the fuel level for the gas gauge.
- Hanger designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed to stay clear of the tank at every point, which removes noise and vibration during operation
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
Quick facts
- Part: Delphi HP10257 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: 1998-2004 Nissan Frontier 4-cylinder 2.4L
- Condition: New
A gas gauge that reads wrong, hard starting or an engine that stalls can mean the hanger is wearing out. Before you replace this hanger, rule out the fuel filter, the pump fuse and relay, and the wiring, since problems there can also lead to hard starting or stalling; a shop can test fuel pressure.
Fits
This hanger fits the 1998-2004 Nissan Frontier 4-cylinder 2.4L, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: L4-2.4L
Build and materials
- Construction: hanger assembly with float arm
- Tubes: metal
- Tank seal: included
- Fuel line retainers: 2 included
- Condition: New
In the box
One fuel pump hanger with float arm, one instruction sheet, one tank seal and two fuel line retainers.
Installation notes
- Check and clean the fuel tank before installing.
- The instruction sheet in the box covers the steps.
Interchange: 951-0007 · 17040-3S505 · 17040-3S515 · 17040-5S105
4011064 · E8229 · E8441S · DHP10257 · P76214 · P76550M · P90003 · A30235 · E16009 · SP1118 · SP4016M · USEP8441S
This part cross-references / interchanges with the following part numbers:
4011064, E8229, E8441S, DHP10257, P76214, P76550M, P90003, 951-0007, 17040-3S505, 17040-3S515, 17040-5S105, A30235, E16009, SP1118, SP4016M, USEP8441S
Frequently Asked Questions
Does the Delphi HP10257 fit the 1998-2004 Nissan Frontier 4-cylinder 2.4L?
Yes. Delphi HP10257 is listed for the 1998-2004 Nissan Frontier 4-cylinder 2.4L, and that engine takes one.
What comes with the Delphi HP10257 fuel pump hanger assembly?
The Delphi HP10257 comes with the hanger and float arm, an instruction sheet, a tank seal and two fuel line retainers.
Does the float on this fuel pump hanger affect the gas gauge reading?
Yes. Empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Will the metal tubes on this hanger rattle against the tank?
No. The metal tubes are routed so they do not contact the tank at any point, which removes noise and vibration during operation.
Should I clean the tank before installing this fuel pump hanger?
Yes. Check and clean the fuel tank first. The instruction sheet that comes with the Delphi HP10257 covers the steps.
