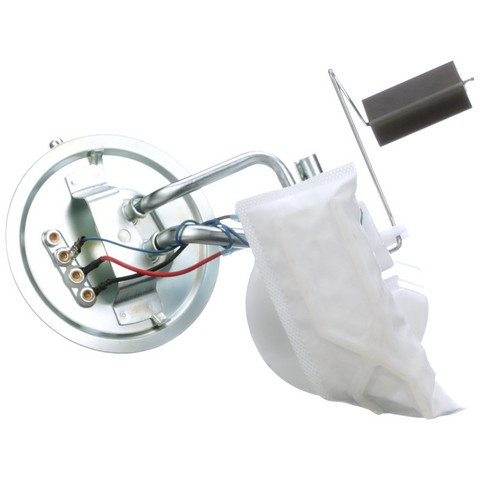

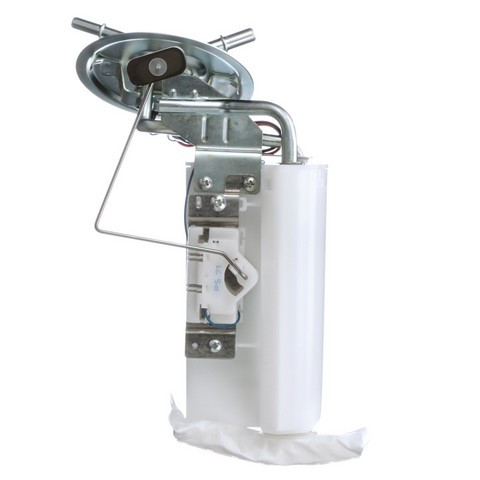

Delphi HP10273 fuel pump hanger for the 1990-1991 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L and other vehicles supports the fuel pump inside the tank. Its float arm reports the fuel level to the gas gauge.
- Designed to operate under extreme temperatures with quick engine starts
- Metal tubes are routed so they do not contact the tank at any point, which removes noise and vibration while driving
- Empty float height and float retention are set for a correct gas gauge reading
- Validated and tested before being matched to its vehicle application
- Lower amperage draw puts less load on the vehicle's electrical system
Quick facts
- Part: Delphi HP10273 fuel pump hanger
- Also called: fuel pump hanger assembly
- Fits: 1990-1991 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L and other vehicles
- Condition: New
A gas gauge that reads wrong, a noisy tank or hard starting can mean the hanger is wearing out. These signs alone do not prove the hanger is at fault, since a clogged fuel filter can also make an engine hard to start.
Fits
The vehicles it fits include the 1990-1991 Ford F-150 6-cylinder 4.9L, V8 5.0L or 5.8L, the 1990-1991 Ford F-250 6-cylinder 4.9L, V8 5.8L or 7.5L and the 1991 F-250 V8 5.0L, and the 1990-1991 Ford F-350 6-cylinder 4.9L, V8 5.8L or 7.5L. The quantity is one hanger on each of those vehicles.
Specifications
- Quantity per vehicle: 1
- Type: fuel pump hanger with float arm
- Condition: New
In the box
One hanger with float arm, lock ring, retainers, screws, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the hanger.
- An instruction sheet comes with the part for the steps.
Interchange: 953-3004 · F4TZ 9A407-N · PFB-1
4011018 · 4017270 · 4017274 · E2059MN · CHP10273 · 67000 · P74107 · P77255S · P77258S · P77405H · AFS0022P · RE0022P · RE0146S · A23000 · SP34B1H
This part cross-references / interchanges with the following part numbers:
4011018, 4017270, 4017274, E2059MN, CHP10273, 67000, P74107, P77255S, P77258S, P77405H, 953-3004, AFS0022P, RE0022P, RE0146S, F4TZ 9A407-N, PFB-1, A23000, SP34B1H
Frequently Asked Questions
Does the Delphi HP10273 fuel pump hanger fit a 1991 Ford F-250 with the V8 5.0L?
Yes, Delphi HP10273 fits the 1991 Ford F-250 V8 5.0L. If your vehicle isn't one named on this page, look up its year and engine in the "Vehicles it fits" section.
What parts come with the Delphi HP10273 fuel pump hanger assembly?
Delphi HP10273 comes with a float arm, lock ring, retainers, screws, a seal and an instruction sheet.
Is the float on this fuel pump hanger set for an accurate gas gauge reading?
Yes. Empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Can a wrong gas gauge reading mean the float arm on a fuel pump hanger is worn?
It can, since the float arm sets the gauge reading. A shop can test the hanger before you replace it.
Do I need to prepare the fuel tank before installing the Delphi HP10273?
Yes. Check and clean the fuel tank first; the instruction sheet that comes with Delphi HP10273 covers the steps.
