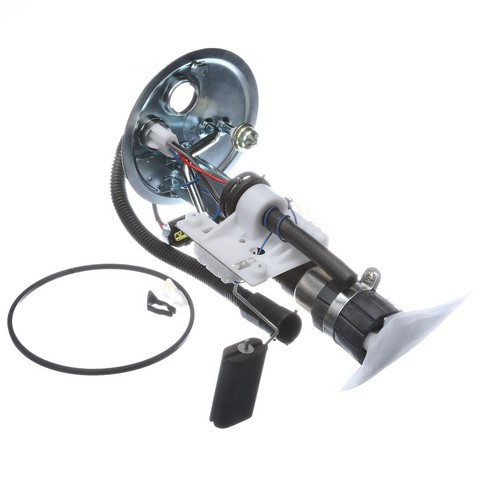

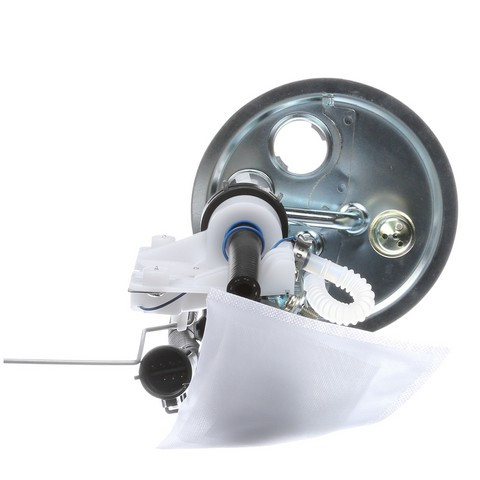

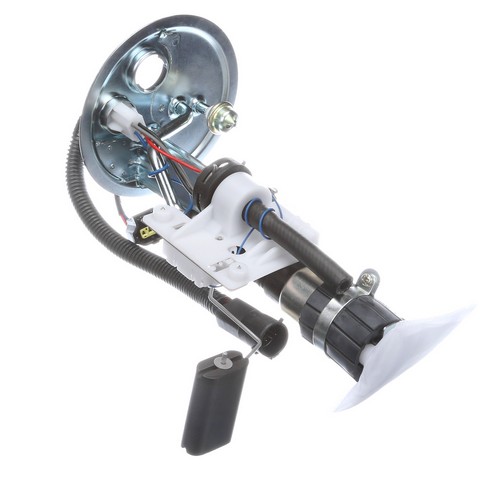

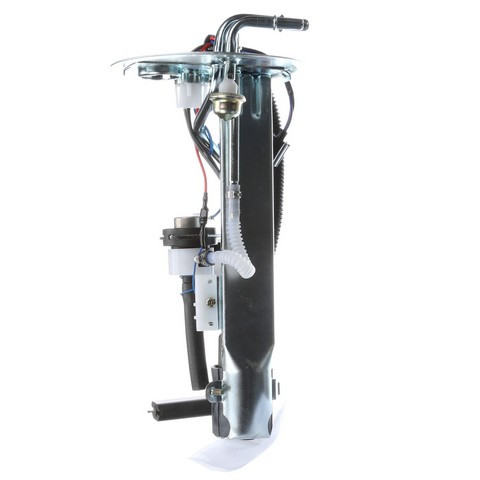

Delphi HP10231 fuel pump and sender assembly for the 2000 Ford Ranger V6 3.0L or 4.0L and the 2000-2001 Ranger 4-cylinder 2.5L is a Delphi fuel pump that moves fuel from the tank to the engine. The hanger carries the pump and the float arm that reads the tank level.
- Designed to operate under extreme temperatures with quick engine starts
- Metal tubes routed clear of the tank at every point, to avoid noise and vibration while driving
- Empty float height and float retention built to give a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Fast pressure performance with less energy used to pump
Quick facts
- Part: Delphi HP10231 fuel pump and sender assembly
- Fits: 2000 Ford Ranger V6 3.0L or 4.0L and the 2000-2001 Ranger 4-cylinder 2.5L
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean this assembly is worn, though a clogged fuel filter or a weak fuel pump relay can produce the first two as well.
Fits
This Ford Ranger fuel pump fits the 2000 Ford Ranger V6 3.0L or 4.0L and the 2000-2001 Ranger 4-cylinder 2.5L, with one assembly per vehicle.
Specifications
- Quantity per vehicle: 1
- Construction: hanger assembly with float arm
- Condition: New
In the box
One fuel pump and sender assembly with float arm, and one instruction sheet.
Installation notes
- Check and clean the fuel tank before fitting the assembly.
- The instruction sheet in the box gives the steps.
Interchange: 950-0173 · 951-0008 · YL5Z 9H307-EA · YL5Z 9H307-EC · YL5Z 9H307-EG
4011057 · E2278S · E2471 · DHP10231 · 67151 · 69134 · P74871S · PFS1011 · C0084H · A30236 · E16006 · SP1113 · SP2278H · USEP2278S
This part cross-references / interchanges with the following part numbers:
4011057, E2278S, E2471, DHP10231, 67151, 69134, P74871S, 950-0173, 951-0008, YL5Z 9H307-EA, YL5Z 9H307-EC, YL5Z 9H307-EG, PFS1011, C0084H, A30236, E16006, SP1113, SP2278H, USEP2278S
Frequently Asked Questions
Is this a 2000 Ford Ranger fuel pump replacement for the V6 3.0L or 4.0L?
Yes. Delphi HP10231 fits the 2000 Ford Ranger with the V6 3.0L or 4.0L. It also fits the 2000-2001 Ranger with the 4-cylinder 2.5L.
What comes with the Delphi fuel pump assembly HP10231?
The Delphi HP10231 comes as one fuel pump and sender assembly with its float arm, plus an instruction sheet.
Does the float on this fuel pump and sender assembly give a correct gas gauge reading?
Yes. Empty float height and float retention match OE specifications, which is what lets the gas gauge read the tank level correctly.
Does this assembly draw a lot of current from the electrical system?
No. It is built for a lower amperage draw, so it puts less load on the vehicle's electrical system.
Does the Delphi HP10231 need any prep before it goes in the tank?
Check and clean the fuel tank first. The instruction sheet that comes with the Delphi HP10231 covers the installation steps.
