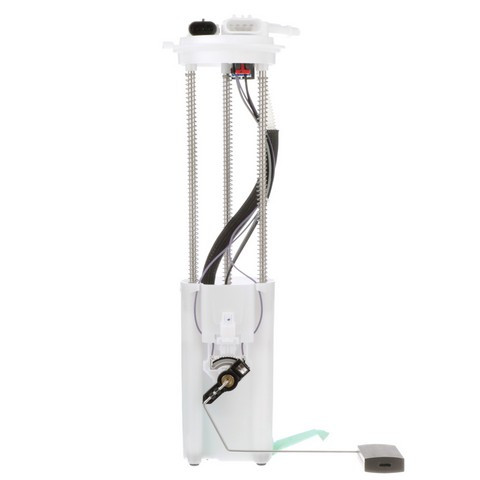

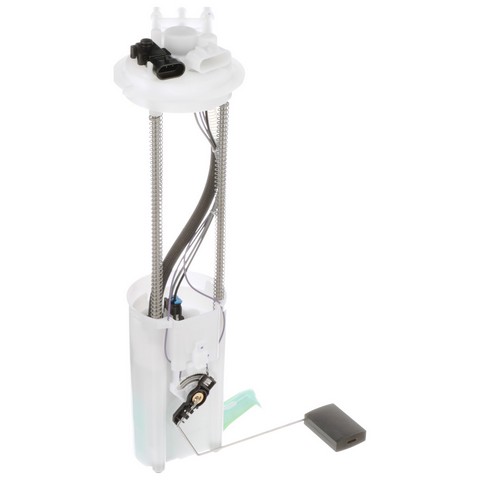

Delphi FG0094 fuel pump module for the 1998-2000 Chevrolet C3500HD V8 7.4L, the 2000 C3500HD V8 5.7L, the 2001-2002 C3500HD V8 8.1L and other vehicles moves fuel from the tank to the engine. It is also called a fuel pump assembly, includes a float arm and is built to Delphi's OE standards.
- Lower amperage draw puts less load on the vehicle's electrical system
- Empty float height and float retention are built to specification for a correct gas gauge reading
- Validated, tested and matched to the right vehicle application
- Design and durability that lead to lower failure rates
Quick facts
- Part: Delphi FG0094 fuel pump module
- Also called: fuel pump assembly
- Fits: 1998-2000 Chevrolet C3500HD V8 7.4L, the 2000 C3500HD V8 5.7L, the 2001-2002 C3500HD V8 8.1L and other vehicles
- Condition: New
Before you replace the module, rule out a clogged fuel filter, a blown fuse or relay and damaged wiring, since any of them can mimic a weak pump. Hard starting, stalling or a gas gauge that reads wrong can mean the module itself is failing.
Fits
The 1998-2000 GMC C3500HD V8 7.4L and the 1998-2000 Chevrolet K3500 V8 5.7L or 7.4L are covered too, and the fit extends to still more vehicles. Owners of other vehicles can look up their year and engine in the "Vehicles it fits" section.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump module with float arm, seal, splices, wire harness and instruction sheet. This listing holds one module, and the vehicles it fits take one.
Installation notes
- An instruction sheet comes with the module.
- Check and clean the fuel tank during installation.
Frequently Asked Questions
Does the Delphi FG0094 fit the 2000 Chevrolet C3500HD V8 5.7L?
Yes. Delphi FG0094 fits the 2000 Chevrolet C3500HD V8 5.7L, the 1998-2000 C3500HD V8 7.4L and the 2001-2002 C3500HD V8 8.1L. Other vehicles can be looked up in the "Vehicles it fits" section.
What does the Delphi fuel pump module assembly include?
Delphi FG0094 comes with a float arm, seal, splices, a wire harness and an instruction sheet.
Why does float height matter on the Delphi fuel module?
Empty float height and float retention are matched to specification, which is meant to give a correct gas gauge reading.
What are signs a Delphi fuel pump module is failing?
Hard starting, stalling or an erratic gas gauge can mean the module is failing. A shop can test fuel pressure and delivery.
Do I need to clean the tank when installing this Delphi module?
Yes, the fuel tank should be checked and cleaned during installation. An instruction sheet comes with the Delphi FG0094 for the steps.
