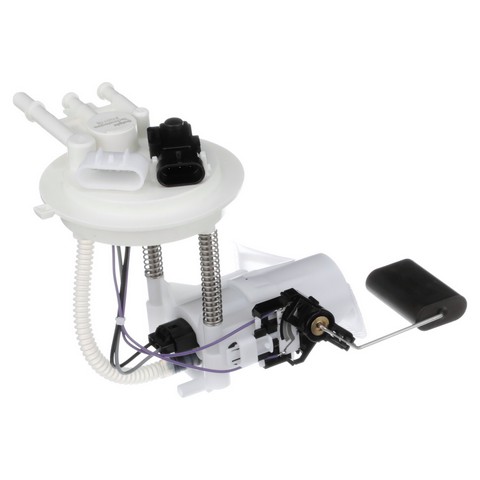

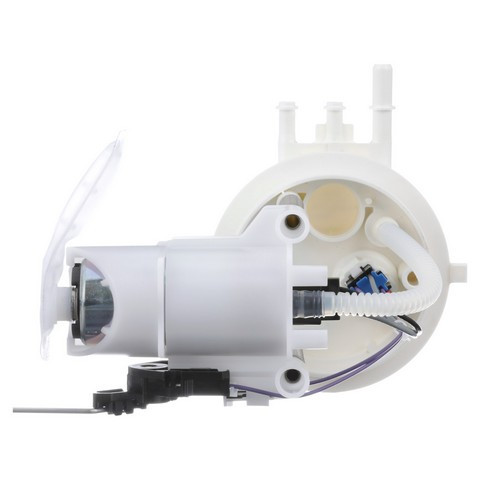

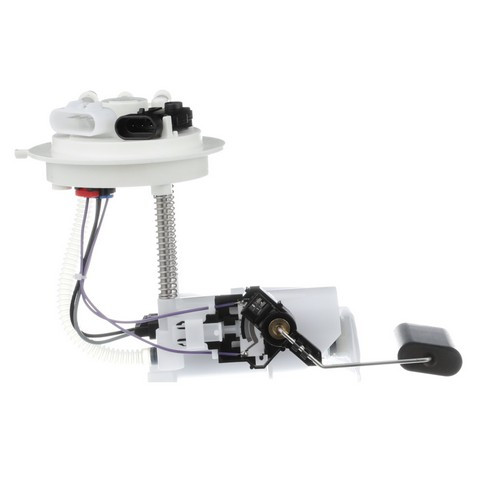

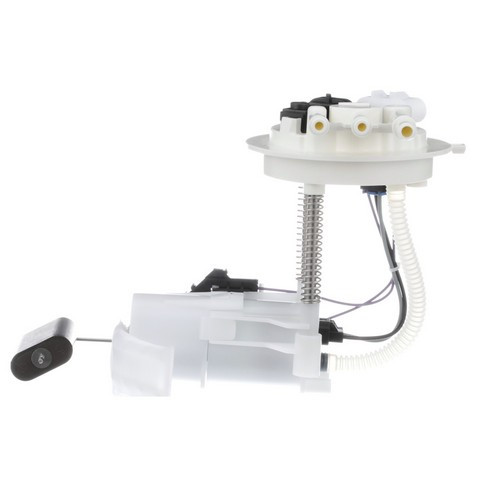

Delphi FG0116 fuel pump module for the 2000-2001 Chevrolet Suburban 2500 V8 6.0L, the 2001 Suburban 2500 V8 8.1L and other vehicles sends fuel from the tank to the engine. Also called a fuel pump assembly, it is built to Delphi's OE standards, and it is validated, tested and matched to the right vehicle application.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw, so less load on the vehicle's electrical system
- Design and durability aimed at lower failure rates
- Float arm and seal supplied with the module assembly
Quick facts
- Part: Delphi FG0116 fuel pump module
- Also called: fuel pump assembly
- Fits: 2000-2001 Chevrolet Suburban 2500 V8 6.0L, the 2001 Suburban 2500 V8 8.1L and other vehicles
- Condition: New
Hard starting, sputtering under load or an erratic fuel gauge can mean the pump module is wearing out. These signs can also come from other fuel-system parts, so with the engine off, look over the fuel pump fuse and connector for damage before you replace the module.
Fits
This module fits the 2000-2001 Chevrolet Suburban 2500 V8 6.0L, the 2001 Suburban 2500 V8 8.1L, the 2000-2001 GMC Yukon XL 2500 V8 6.0L and the 2001 Yukon XL 2500 V8 8.1L, with one module per vehicle.
Specifications
- Quantity per vehicle: 1
- Engines: V8-6.0L and V8-8.1L
- Includes: float arm and seal
- Condition: New
In the box
One fuel pump module assembly with float arm, seal and an instruction sheet.
Installation notes
- An instruction sheet comes with the module.
- Check and clean the fuel tank before installing the new module.
Interchange: 953-5065
MU1802 · MU182 · MU284 · MU286 · 4010248 · E3512M · DFG0116 · P74929M · RE0394S · 19179477 · 25318056 · 25335924 · 25336146 · A27104 · SP3512M · USEP3512M
This part cross-references / interchanges with the following part numbers:
MU1802, MU182, MU284, MU286, 4010248, E3512M, DFG0116, P74929M, 953-5065, RE0394S, 19179477, 25318056, 25335924, 25336146, A27104, SP3512M, USEP3512M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2000-2001 Chevrolet Suburban 2500 V8 6.0L and the 2001 Suburban 2500 V8 8.1L?
Yes. Delphi FG0116 fits the 2000-2001 Chevrolet Suburban 2500 V8 6.0L and the 2001 Suburban 2500 V8 8.1L, with one module per vehicle.
What comes with the Delphi fuel module?
The Delphi fuel module comes as one assembly with the float arm and seal, along with an instruction sheet.
Does this Delphi module keep the fuel gauge reading correct?
Yes. This Delphi module has its empty float height and float retention matched to OE specifications, which gives a correct gas gauge reading.
Does the Delphi fuel pump module put less load on the electrical system?
Yes. Delphi FG0116 is built with a lower amperage draw, so it puts less load on the vehicle's electrical system.
Is Delphi FG0116 a replacement for number E3512M?
Yes. E3512M is one of the numbers on the Interchange line for Delphi FG0116, along with MU1802, MU182 and several others.
