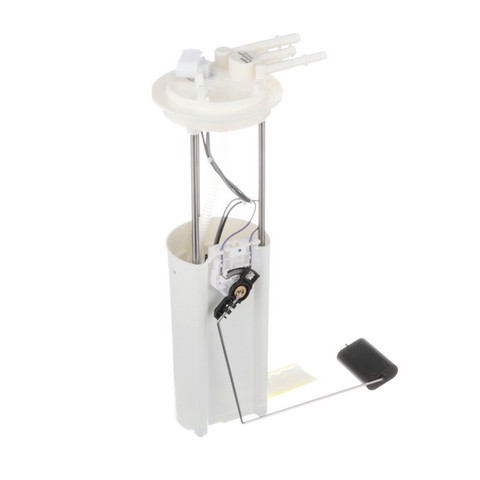

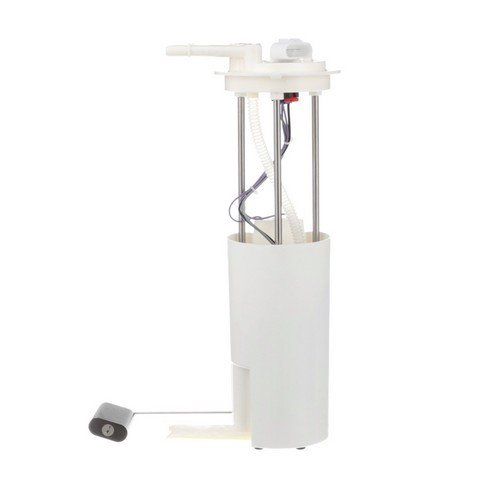

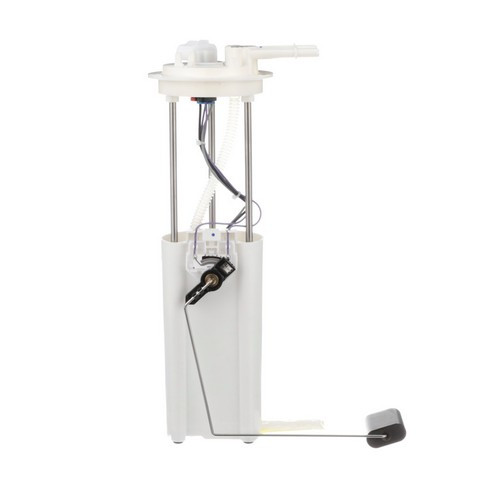

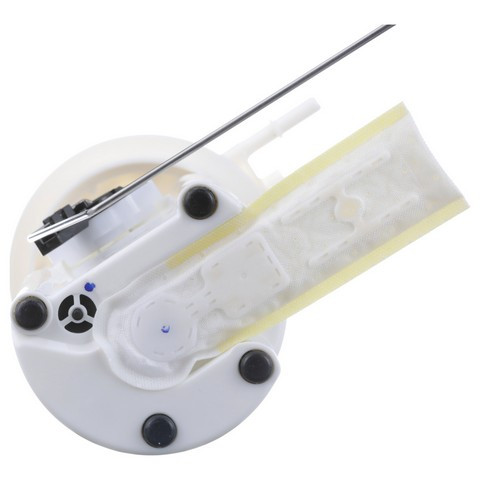

Delphi FG0159 fuel pump module for the 2001-2002 GMC Savana 3500 V6 4.3L, V8 5.7L or 8.1L and other vehicles carries fuel from the tank to the engine and holds the float arm for the gas gauge. Delphi builds its fuel pumps to its own OE standards, and the empty float height and float retention match OE specifications.
- Lower amperage draw puts less load on the vehicle's electrical system
- Empty float height and float retention set for a correct gas gauge reading
- Validated and tested, then matched to its vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG0159 fuel pump module
- Also called: fuel pump assembly
- Fits: 2001-2002 GMC Savana 3500 V6 4.3L, V8 5.7L or 8.1L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can be signs of a failing module. Before you replace it, rule out a blown fuse, a failed relay or damaged wiring, and have the fuel pressure tested at a shop. Each van takes one module.
Fits
This module fits the 2001-2002 GMC Savana 3500 V6 4.3L, V8 5.7L or 8.1L and the 2001-2002 Chevrolet Express 3500 V8 5.7L or 8.1L.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump module with float arm, seal, splices, wire harness and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 953-5083
MU1118 · MU1766 · MU235 · 4010280 · E3551M · EFG0159 · P74918M · P74979M · 19179595 · 19332076 · 19369895 · 25326141 · C0196M · A30155 · SP6235M · USEP3551M
This part cross-references / interchanges with the following part numbers:
MU1118, MU1766, MU235, 4010280, E3551M, EFG0159, P74918M, P74979M, 953-5083, 19179595, 19332076, 19369895, 25326141, C0196M, A30155, SP6235M, USEP3551M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2001-2002 GMC Savana 3500 V6 4.3L, V8 5.7L or 8.1L?
Yes, Delphi FG0159 fits that van. It also fits the 2001-2002 Chevrolet Express 3500 V8 5.7L or 8.1L.
What comes with the Delphi fuel pump module?
Delphi FG0159 comes with a float arm, seal, splices, wire harness and an instruction sheet.
Is the float on this Delphi fuel module set for a correct gas gauge reading?
Yes. Empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
How can I tell if a fuel pump assembly is going bad?
Hard starting, stalling or an erratic gas gauge can be signs. A shop can test the fuel pressure and the electrical side to see whether the module is the cause.
Do I need to clean the tank before fitting this Delphi module?
Yes. Check and clean the fuel tank before installing; the instruction sheet that comes with Delphi FG0159 gives the steps.
