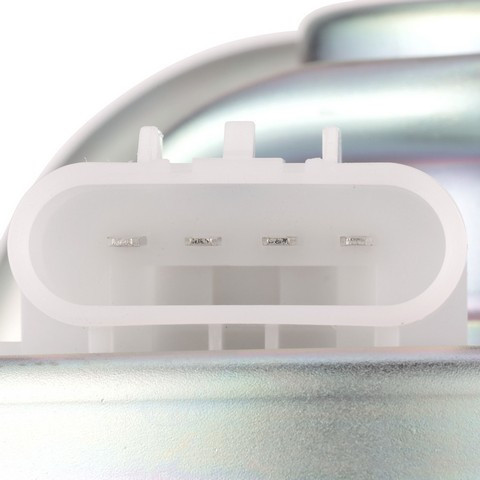

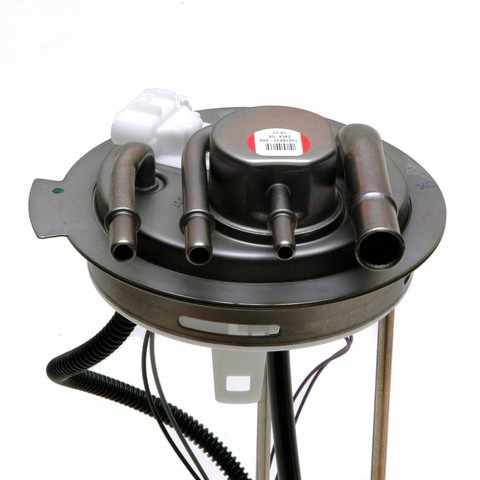

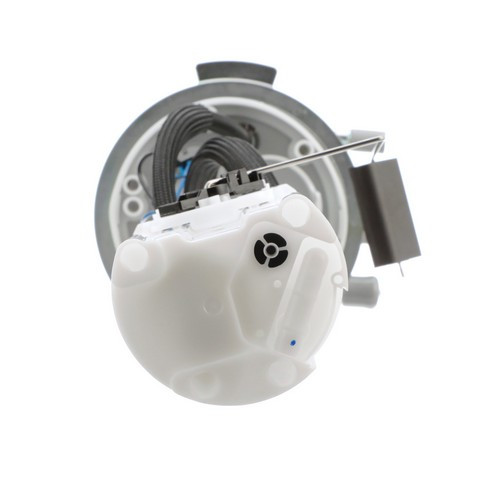

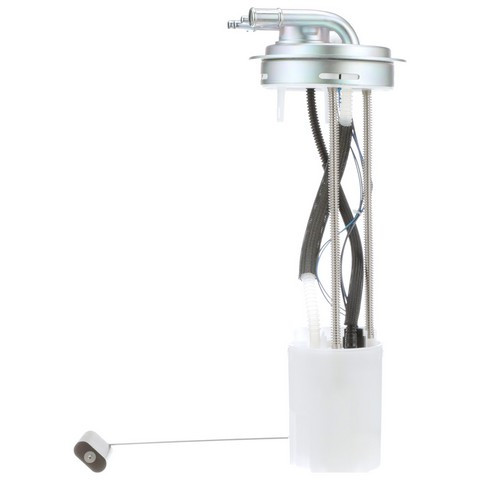

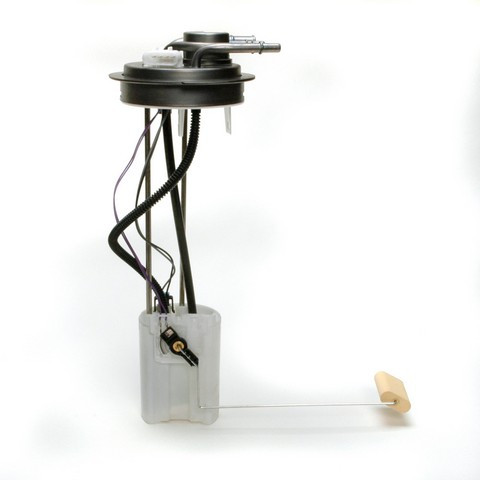

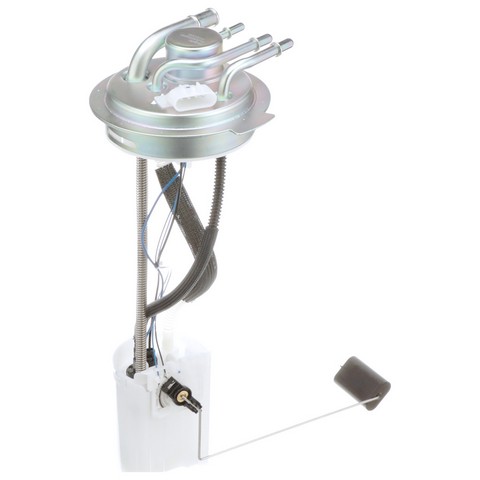

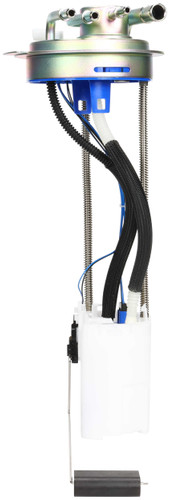

Delphi FG0355 fuel pump module for the 2007 Chevrolet Silverado 3500 Classic V8 6.0L or 8.1L and other vehicles moves fuel from the tank to the engine and carries the float arm for the gas gauge. The Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability that give lower failure rates
Quick facts
- Part: Delphi FG0355 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007 Chevrolet Silverado 3500 Classic V8 6.0L or 8.1L and other vehicles
- Condition: New
A failing pump module can show up as hard starting, stalling or a fuel gauge that reads wrong. Those signs can also come from other parts, so have a shop confirm the module with a fuel pressure and electrical test before you replace it. Those tests need the engine running and the fuel system opened, so they are not a driveway check.
Fits
The vehicles it fits include the 2007 GMC Sierra 3500 Classic V8 6.0L and the 2004-2006 Chevrolet Silverado 3500 V8 6.0L or 8.1L. If your truck is not named here, look it up in the "Vehicles it fits" section by year, model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engines: V8-6.0L, V8-8.1L
Build and materials
- Float arm: included
- Condition: New
In the box
One fuel pump module with float arm and one instruction sheet. This listing holds one module, and the trucks named above take one.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: 953-5130
M10006 · MU1431 · 4010462 · E3617M · EFG0355 · 67538 · P76237M · P76250M · 19133491 · 19303425 · 19332056 · 19332057 · 19370022 · 25350284 · 25384009 · 25384011 · C0241M · A30359 · SP6106M · SP6353M
This part cross-references / interchanges with the following part numbers:
M10006, MU1431, 4010462, E3617M, EFG0355, 67538, P76237M, P76250M, 953-5130, 19133491, 19303425, 19332056, 19332057, 19370022, 25350284, 25384009, 25384011, C0241M, A30359, SP6106M, SP6353M
Frequently Asked Questions
Will Delphi FG0355 fit a 2004-2006 Chevrolet Silverado 3500 V8 8.1L?
Yes. Delphi FG0355 fits the 2004-2006 Chevrolet Silverado 3500 with the V8-6.0L or V8-8.1L engine. For other trucks, check the "Vehicles it fits" section.
Does the Delphi module come with the float arm?
Yes. Delphi FG0355 comes with the float arm and an instruction sheet. Nothing else is listed in the package.
How does the Delphi fuel module affect gas gauge accuracy?
This module's empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Does this fuel pump module add much load to the electrical system?
No. This pump module has a lower amperage draw, so it puts less load on the vehicle's electrical system.
Should I clean the fuel tank before installing this pump module?
Yes. Check and clean the fuel tank first, and follow the instruction sheet that comes with the part for the installation steps.
