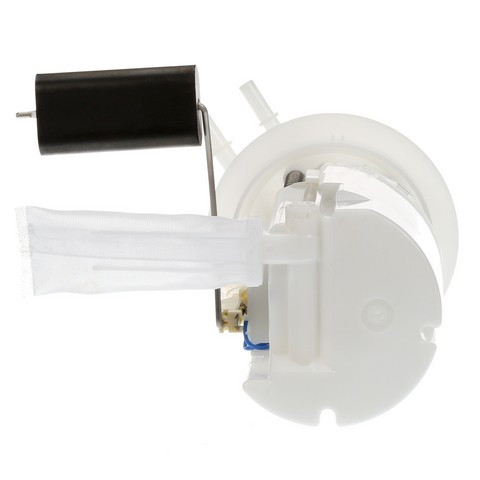

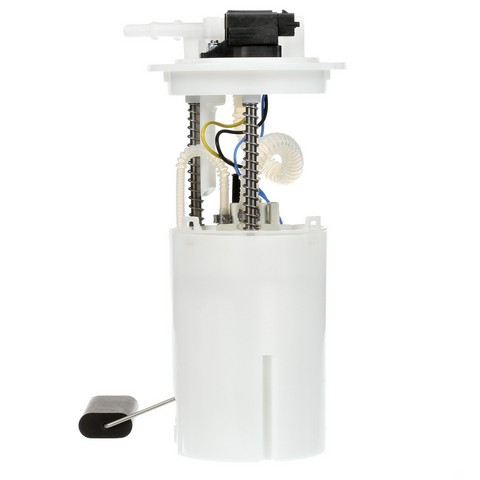

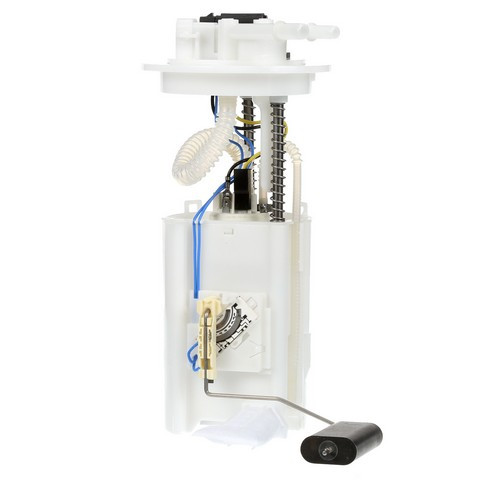

Delphi FG0467 fuel pump module for the 2001-2005 Saturn L300 and other vehicles pumps fuel from the tank toward the engine. The Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards and sits in the tank with its float arm.
- Empty float height and float retention are set for correct gas gauge readings
- Lower amperage draw puts less load on the electrical system
- Validated and tested, with a design that gives lower failure rates
Quick facts
- Part: Delphi FG0467 fuel pump module
- Also called: fuel pump assembly
- Fits: 2001-2005 Saturn L300 and other vehicles
- Condition: New
Before you replace the module, rule out a clogged fuel filter, a blown pump fuse or relay, and debris in the tank, since those can cause hard starting or sputtering too. A fuel gauge that reads wrong or a whine from the tank can also come from the module; if it is the cause, this assembly replaces it.
Fits
The 2001-2005 Saturn L300, the 2001-2003 Saturn L200 and the 2001-2003 Saturn LW200 are among the vehicles this module fits, and each takes one.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Empty float height and float retention: match OE specifications
In the box

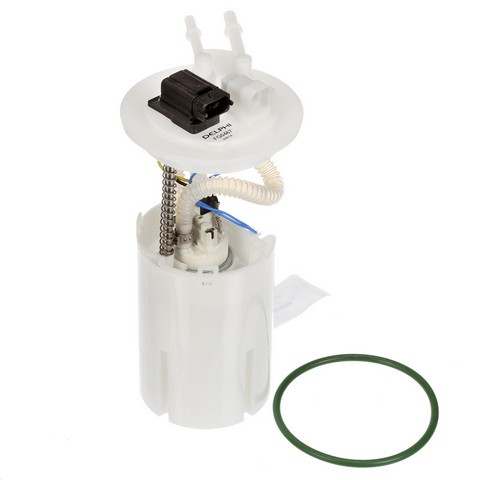

One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank when you install the module.
- The instruction sheet in the box covers the steps.
Interchange: 402-P3557M · 150117-A
22710031 · 4010305 · E3557M · CFG0467 · F2568A · 67485 · M2228195 · P76109M · 22672353 · 22699047 · 1AMFP00141 · C0202M · A27011 · FP22028 · SP3557M · USEP3557M · FP22028S
This part cross-references / interchanges with the following part numbers:
22710031, 4010305, E3557M, CFG0467, F2568A, 67485, M2228195, P76109M, 22672353, 22699047, 1AMFP00141, C0202M, 402-P3557M, A27011, FP22028, SP3557M, 150117-A, USEP3557M, FP22028S
Frequently Asked Questions
Is the Delphi FG0467 right for a 2001-2003 Saturn L200?
Yes, Delphi FG0467 fits the 2001-2003 Saturn L200 and the 2001-2005 Saturn L300, one per vehicle. For any other car, look it up in the "Vehicles it fits" section on this page.
Does the Delphi fuel module fit the 2001-2003 Saturn LW200?
Yes, Delphi FG0467 fits the 2001-2003 Saturn LW200, and it takes one.
Does the Delphi fuel pump module come with a float arm and seal?
Yes. Delphi FG0467 comes with the float arm, a seal and an instruction sheet.
Does the float on this Delphi module give a correct gas gauge reading?
Yes. Its empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Should the fuel tank be cleaned before installing this module?
Yes. Check and clean the fuel tank when you install the module, and use the instruction sheet in the box for the steps.
