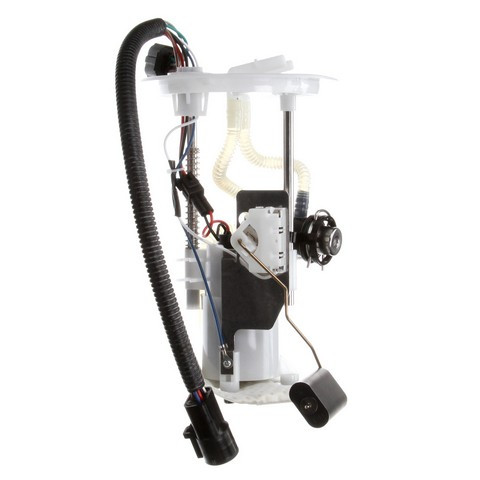

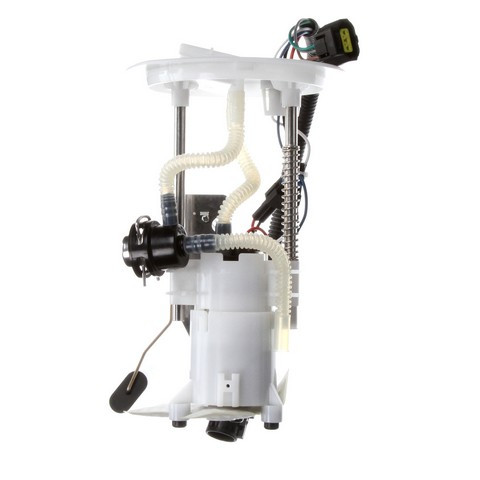

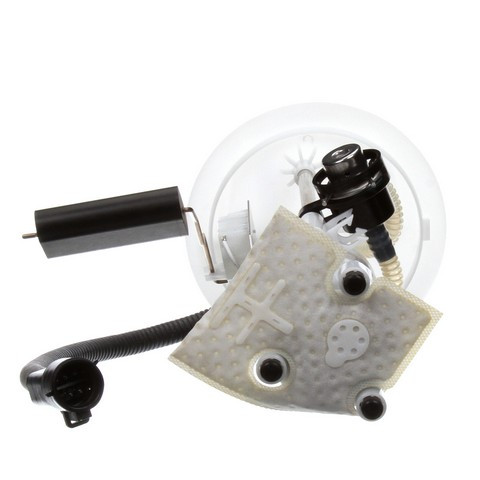

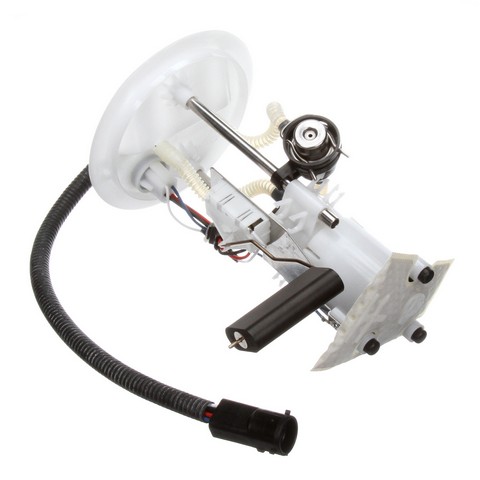

Delphi FG0867 fuel pump module for the 2002-2003 Ford Explorer V6 4.0L or V8 4.6L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module is built to Delphi's OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability give lower failure rates
Quick facts
- Part: Delphi FG0867 fuel pump module
- Also called: fuel pump assembly
- Fits: 2002-2003 Ford Explorer V6 4.0L or V8 4.6L and other vehicles
- Condition: New
A worn fuel pump assembly can show up as a long crank before starting, sputtering, or a gas gauge that reads wrong. Before you replace the module, rule out a clogged fuel filter, a blown fuse or a bad relay, which can give similar symptoms. If the module is the cause, this one replaces it.
Fits
This module fits the 2002-2003 Ford Explorer V6 4.0L or V8 4.6L, the 2002 Mercury Mountaineer V6 4.0L and the 2002-2003 Mountaineer V8 4.6L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engines: V6-4.0L, V8-4.6L
Build and materials
- Float arm: included
- Condition: New
In the box

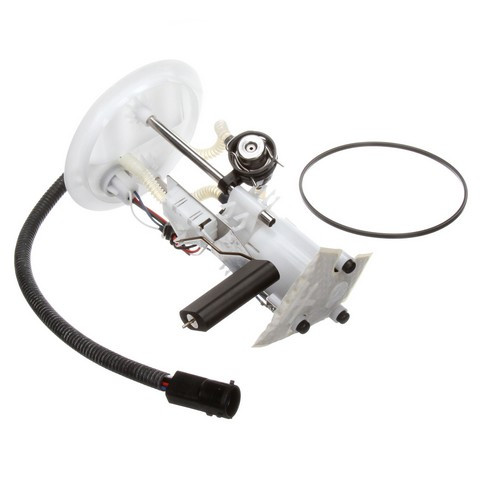

One fuel pump module with float arm, seal and instruction sheet. This listing holds one module, and the vehicle takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: 950-0171 · 1L2Z 9H307-LD · PFS-357 · PFS-435
4010324 · E2334M · E2339 · CFG0867 · 67210 · P76126M · P76539 · AFS0858S · AFS0999P · 1AMFP00090 · C0055M · A33031 · E16126 · SP1177 · SP2334M · USEP2334M
This part cross-references / interchanges with the following part numbers:
4010324, E2334M, E2339, CFG0867, 67210, P76126M, P76539, 950-0171, AFS0858S, AFS0999P, 1L2Z 9H307-LD, 1AMFP00090, PFS-357, PFS-435, C0055M, A33031, E16126, SP1177, SP2334M, USEP2334M
Frequently Asked Questions
Is the Delphi fuel pump module assembly right for the 2002-2003 Ford Explorer V6 4.0L or V8 4.6L?
Yes. Delphi FG0867 fits the 2002-2003 Ford Explorer with the V6-4.0L or the V8-4.6L, and the vehicle takes one module.
Does this Delphi fuel module come with the float arm and seal?
Yes. Delphi FG0867 comes with the float arm, a seal and an instruction sheet. This listing is one module.
Will the float on this Delphi module give a correct gas gauge reading?
Yes. This module's empty float height and float retention match OE specifications, which is intended to give a correct gas gauge reading.
Is there anything to do to the tank before installing this fuel pump module?
Yes. Check and clean the fuel tank first. The instruction sheet that comes with the module covers the remaining steps.
Does Delphi FG0867 replace the 1L2Z 9H307-LD number?
Yes. 1L2Z 9H307-LD is one of the numbers Delphi FG0867 replaces, along with 950-0171, PFS-357 and PFS-435.
