Fuel Pump Module for 2004-2005 Ford Explorer & More - Delphi FG0876

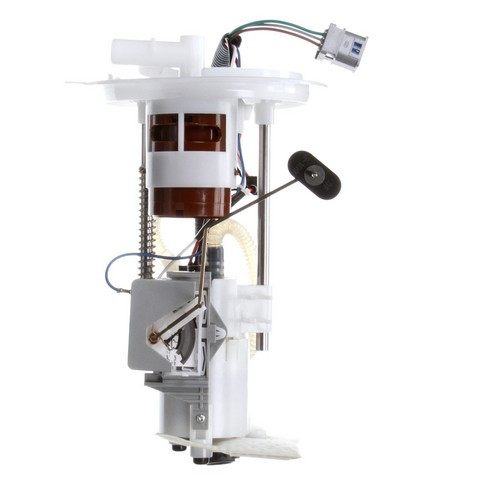

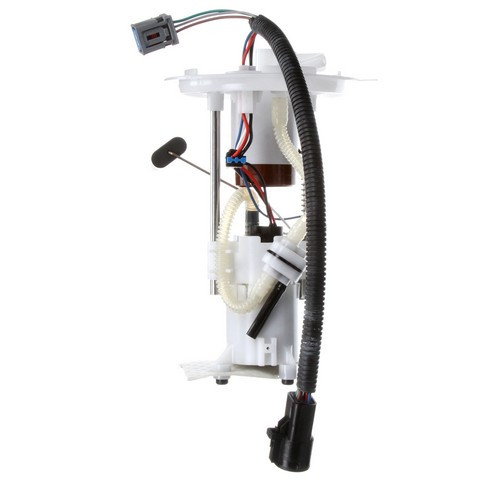

Delphi FG0876 fuel pump module for the 2004-2005 Ford Explorer V8 4.6L and other vehicles carries fuel from the tank to the engine. It is built to Delphi's OE standards and matched to its vehicle application.

• Empty float height and float retention are set for a correct gas gauge reading
• Lower amperage draw puts less load on the electrical system
• Validated and tested before it is matched to the vehicle application
• Design and durability aimed at lower failure rates

Quick facts

• Part: Delphi FG0876 fuel pump module
• Also called: fuel pump assembly
• Fits: 2004-2005 Ford Explorer V8 4.6L and other vehicles
• Condition: New

Hard starting, sputtering or a stall can mean the module is weakening. A blown fuse or a clogged filter gives similar trouble, so look at the fuel pump fuse with the ignition off before replacing the module.

Fits

This module fits the 2004-2005 Ford Explorer V8 4.6L and the 2004-2005 Mercury Mountaineer V8 4.6L, and each of them takes one.

Specifications

• Quantity per vehicle: 1
• Engine: V8 4.6L
• Condition: New

In the box

One fuel pump module with float arm, seal and an instruction sheet.

Installation notes

• Check and clean the fuel tank before installing the module.
• An instruction sheet comes with the part.

Interchange: 953-4035 · 5L2Z 9H307-A · 7L2Z 9H307-B · 4L2Z 9H307-CA · 4L2Z 9H307-CB · 4L2Z 9H307-CC · PFS-417
4010422 · E2359M · CFG0876 · 66059 · P76247M · RE0919S · C0070M · A33035 · SP2076M · USEP2359M
