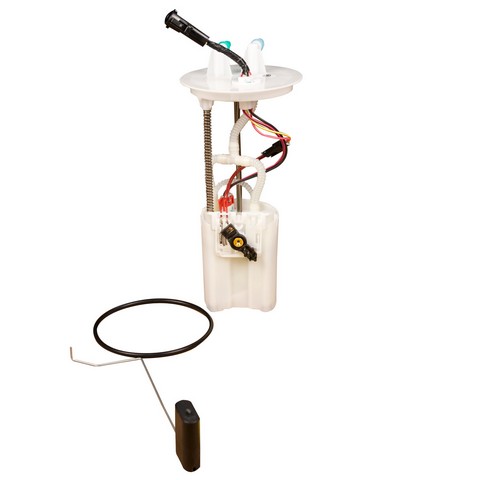

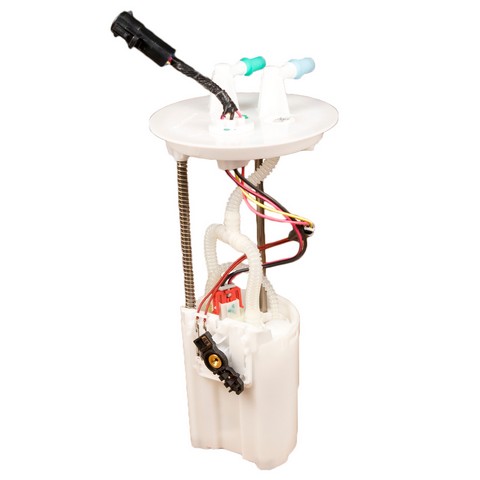

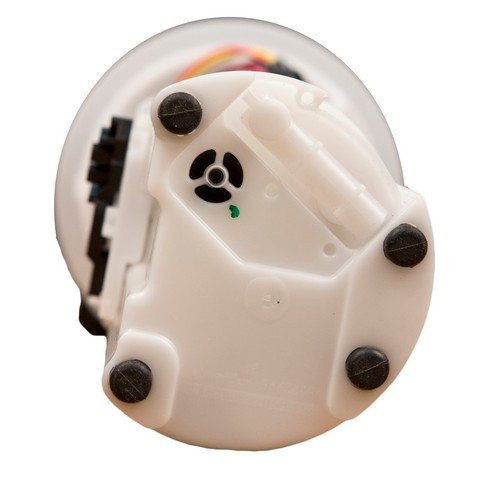

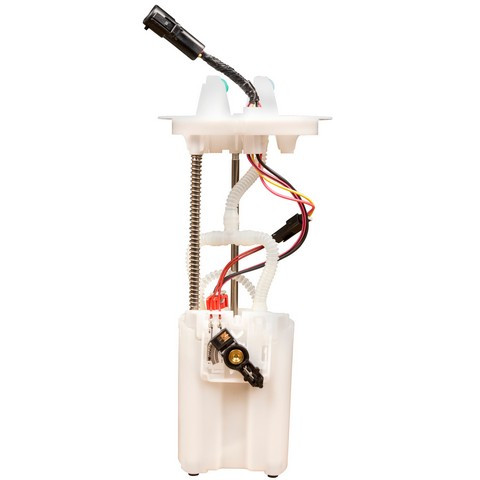

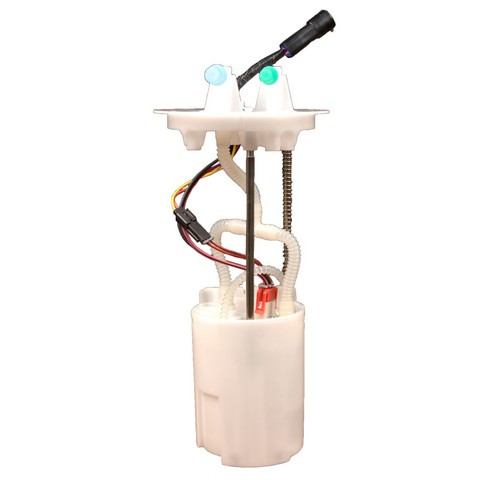

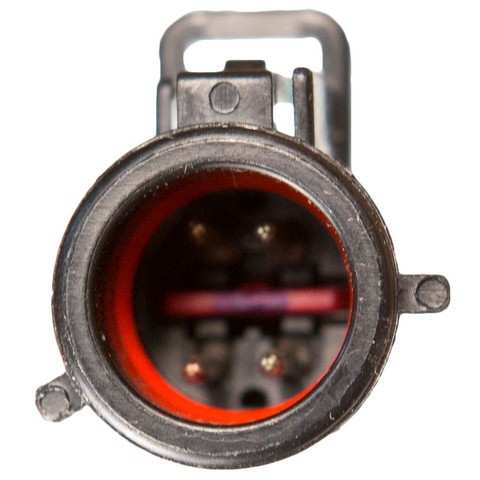

Delphi FG0967 fuel pump module for the 2007-2008 Ford Escape 4-cylinder 2.3L or V6 3.0L and other vehicles moves fuel from the tank to the engine. Also called a fuel pump assembly, it is built to Delphi's OE standards.
- Empty float height and float retention set to specification for correct gas gauge readings
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the vehicle application
- Lower failure rates from its design and durability
Quick facts
- Part: Delphi FG0967 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2008 Ford Escape 4-cylinder 2.3L or V6 3.0L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the module is worn, though a clogged fuel filter or a faulty fuel pump relay can be behind the same signs. If the module is the cause, this one replaces it.
Fits
It fits the 2007-2008 Ford Escape 4-cylinder 2.3L or V6 3.0L, the 2007-2008 Mercury Mariner 4-cylinder 2.3L or V6 3.0L and the 2008 Mazda Tribute 4-cylinder 2.3L or V6 3.0L. Each of them takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engines: 4-cylinder 2.3L or V6 3.0L
Build and materials
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm, a seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 953-4047 · 8L8Z 9H307-C · 8L8Z 9H307-D · 8L8Z 9H307-J · ZZC2-13-35X · ZZC2-13-35XA · ZZC2-13-35XB · PFS-468
4010616 · E2314 · E2386 · E2495M · DFG0967 · F1406A · 69369 · P76103 · P77157M · P77159M · AFS0916S · E16028 · A27099 · SP1134 · SP2135M
This part cross-references / interchanges with the following part numbers:
4010616, E2314, E2386, E2495M, DFG0967, F1406A, 69369, P76103, P77157M, P77159M, 953-4047, AFS0916S, 8L8Z 9H307-C, 8L8Z 9H307-D, 8L8Z 9H307-J, E16028, ZZC2-13-35X, ZZC2-13-35XA, ZZC2-13-35XB, PFS-468, A27099, SP1134, SP2135M
Frequently Asked Questions
Is this Delphi fuel pump module assembly the right one for a 2007-2008 Ford Escape 4-cylinder 2.3L or V6 3.0L?
Yes. Delphi FG0967 fits the 2007-2008 Ford Escape with the 4-cylinder 2.3L or V6 3.0L, and the vehicle takes one module.
Does the Delphi module come with its float arm and seal?
Yes. Delphi FG0967 comes with the float arm, a seal and an instruction sheet.
Is the float on this Delphi fuel pump module set to read the gas gauge correctly?
Yes. The empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Does Delphi FG0967 replace number 8L8Z 9H307-C?
Yes. 8L8Z 9H307-C is one of the numbers this module replaces, along with 953-4047 and ZZC2-13-35X.
What should I do before fitting a Delphi fuel module?
Check and clean the fuel tank first. The instruction sheet that comes with Delphi FG0967 covers the steps.
