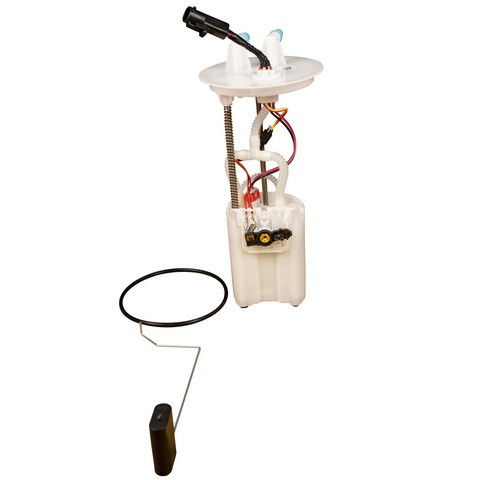

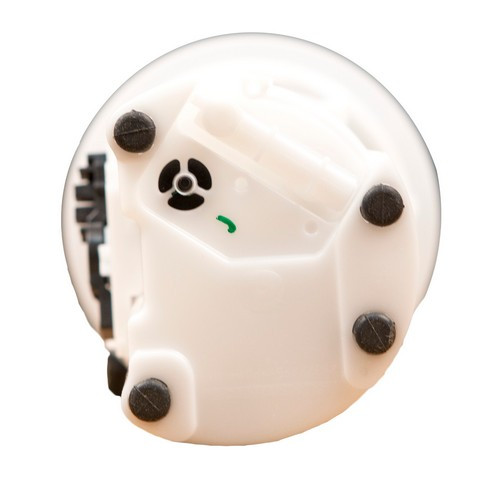

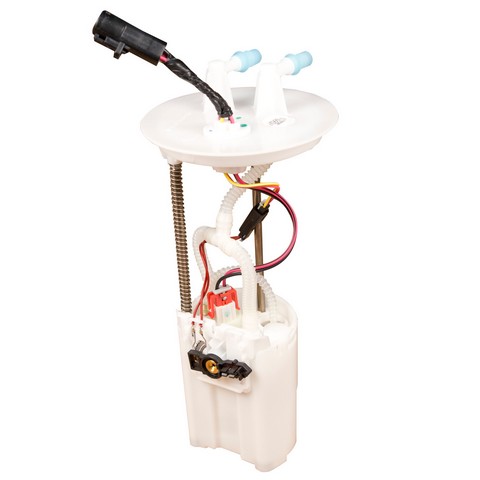

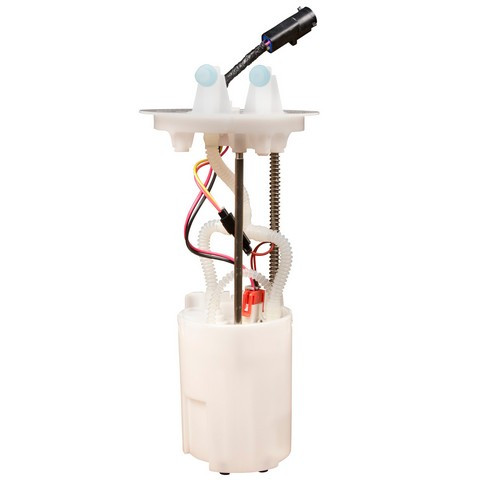

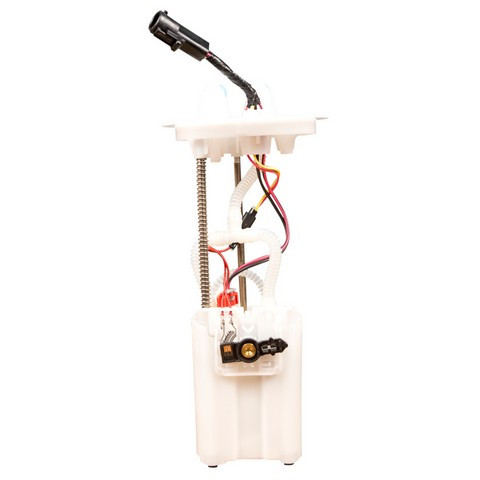

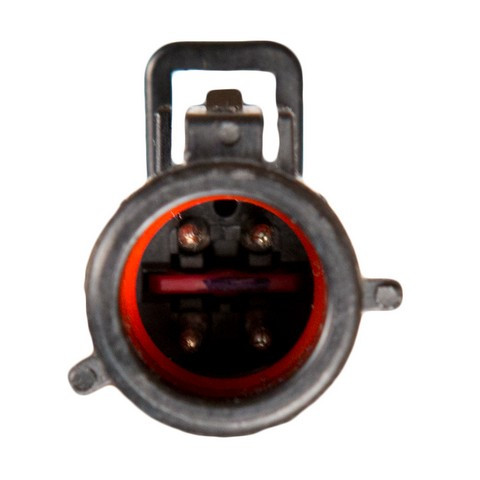

Delphi FG0968 fuel pump module for the 2007-2008 Ford Escape 4-cylinder 2.3L or V6 3.0L and other vehicles sends fuel from the tank to the engine. It is built to Delphi's OE standards.
- Empty float height and float retention that give a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG0968 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2008 Ford Escape 4-cylinder 2.3L or V6 3.0L and other vehicles
- Condition: New
A clogged fuel filter, a blown fuel pump fuse or relay, or a dirty tank can be behind hard starting, stalling or a gas gauge that reads wrong, so find the cause before buying a new module. If the module is the cause, this one replaces it. One module goes in the tank of each vehicle.
Fits
This module fits the 2007-2008 Ford Escape 4-cylinder 2.3L or V6 3.0L and the 2007-2008 Mercury Mariner 4-cylinder 2.3L or V6 3.0L.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Seal: included
- Condition: New
In the box
One fuel pump module with float arm, one seal and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet that comes with the module covers the steps.
Interchange: 953-4178 · 8L8Z 9H307-B · 8L8Z 9H307-F · 8L8Z 9H307-G · 8L8Z 9H307-H · PFS-478
4010619 · E2314 · E2499M · DFG0968 · 69370 · P76103 · P77165M · AFS0917S · A30289 · A33266 · E16028 · SP1134 · SP1150 · SP2387M · USEP2499M
This part cross-references / interchanges with the following part numbers:
4010619, E2314, E2499M, DFG0968, 69370, P76103, P77165M, 953-4178, AFS0917S, 8L8Z 9H307-B, 8L8Z 9H307-F, 8L8Z 9H307-G, 8L8Z 9H307-H, PFS-478, A30289, A33266, E16028, SP1134, SP1150, SP2387M, USEP2499M
Frequently Asked Questions
Does this Delphi fuel pump module fit the 2007-2008 Mercury Mariner 4-cylinder 2.3L or V6 3.0L?
Yes. Delphi FG0968 fits the 2007-2008 Mercury Mariner 4-cylinder 2.3L or V6 3.0L and the 2007-2008 Ford Escape 4-cylinder 2.3L or V6 3.0L.
What comes with the Delphi fuel pump module assembly?
Delphi FG0968 comes with the fuel pump module, a float arm, a seal and an instruction sheet.
Does the Delphi fuel module give a correct gas gauge reading?
Yes. Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
What signs can point to a worn fuel pump module?
Hard starting, stalling or a gas gauge that reads wrong can be signs. A shop can test fuel pressure to confirm the module is the cause.
Should I clean the tank when installing this fuel pump assembly?
Yes. Check and clean the fuel tank before installing, and follow the instruction sheet that comes with FG0968 for the steps.
