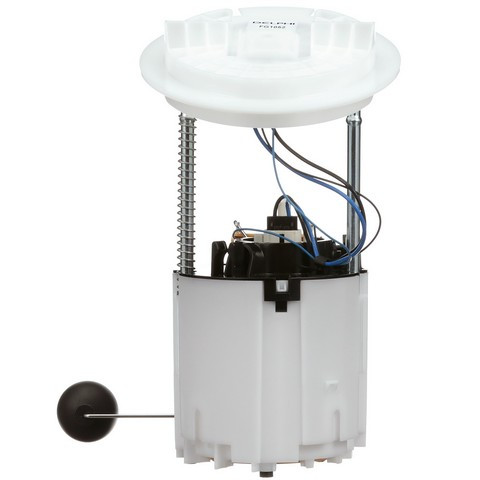

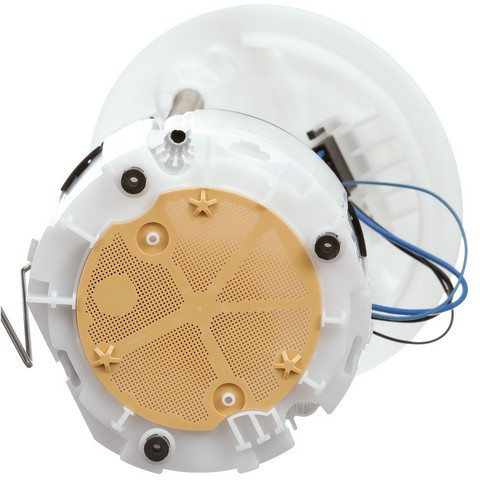

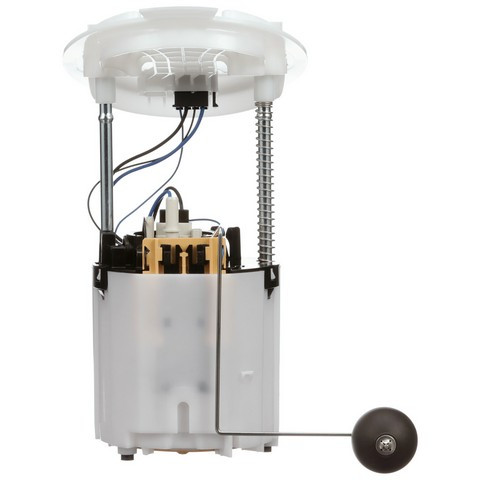

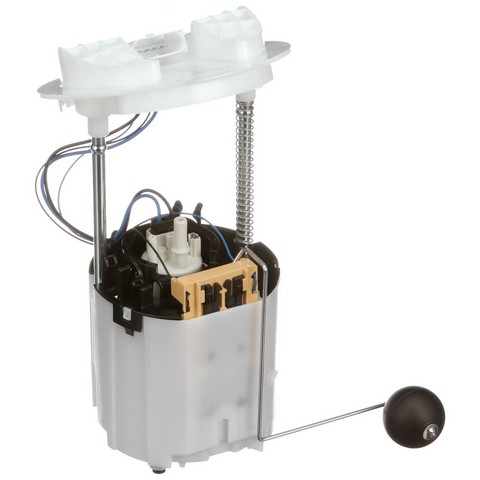

Delphi FG1052 left fuel pump module for the 2006-2010 Dodge Charger V6 2.7L or 3.5L and other vehicles moves fuel from the tank toward the engine and reads fuel level through its float arm. This Delphi fuel pump module assembly is built to Delphi's OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to its vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1052 fuel pump module
- Also called: fuel pump assembly
- Fits: 2006-2010 Dodge Charger V6 2.7L or 3.5L and other vehicles
- Position: Left
- Condition: New
A fuel gauge that reads wrong, hard starting or a whining pump can mean the module is wearing out. These signs alone do not prove the module is at fault; a contaminated fuel tank is another common cause.
Fits
Listed for a wide range of Dodge and Chrysler models, it also fits the 2005-2010 Chrysler 300 V6 2.7L, V6 3.5L or V8 5.7L and the 2009-2010 Dodge Challenger V6 3.5L, with a quantity of one for the left position. Driving something else? The "Vehicles it fits" section is where you can look up your own year, model and engine.
Specifications
Fit and size
- Position: Left
- Quantity per application: 1
Build and materials
- Construction: module assembly with float arm
- Condition: New
In the box

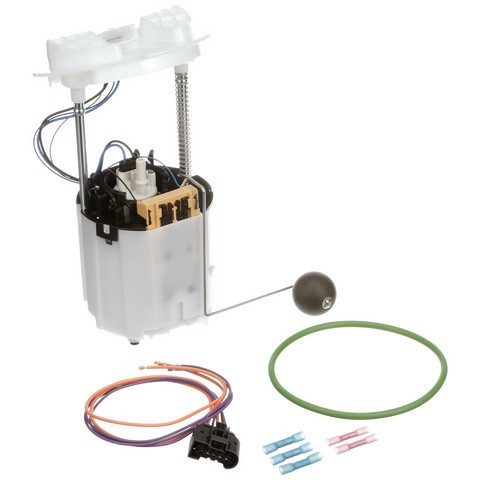

One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the steps.
Interchange: 150147-A
4010545 · E7241M · DFG1052 · F3252A · 67774 · M2510484 · P76270M · 5136021AE · RL136021AG · C0510M · A30009 · SP7048M · USEP7241M
This part cross-references / interchanges with the following part numbers:
4010545, E7241M, DFG1052, F3252A, 67774, M2510484, P76270M, 5136021AE, RL136021AG, C0510M, A30009, SP7048M, 150147-A, USEP7241M
Frequently Asked Questions
Does the Delphi FG1052 fit a 2009-2010 Dodge Challenger V6 3.5L?
Yes. The Delphi FG1052 left fuel pump module is listed for the 2009-2010 Dodge Challenger V6 3.5L. It is the left-side unit.
Does the Delphi module come with a float arm and seal?
Yes. The Delphi FG1052 comes with its float arm, a seal and an instruction sheet.
How does the Delphi fuel module keep the gas gauge reading correct?
Its empty float height and float retention are set to OE specifications, which is meant to give a correct gas gauge reading.
Will this fuel pump assembly work in a 2005-2010 Chrysler 300 V8 5.7L?
Yes. The Delphi FG1052 is listed for the 2005-2010 Chrysler 300 with the V6 2.7L, V6 3.5L or V8 5.7L engine.
Do I need to clean the tank before installing this left fuel pump module?
Yes. Check and clean the fuel tank before installing the module. An instruction sheet comes with the part for the steps.
