Delphi FG1153 fuel pump module for the 2008 Chevrolet Tahoe V8 6.2L, the 2008-2009 Tahoe V8 4.8L or 5.3L, the 2008-2012 Tahoe V8 6.0L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module is built to Delphi's OE standards.
- Lower amperage draw puts less load on the vehicle's electrical system
- Empty float height and float retention set to specification for a correct gas gauge reading
- Lower failure rates from a durable design
- Part is validated and tested
Quick facts

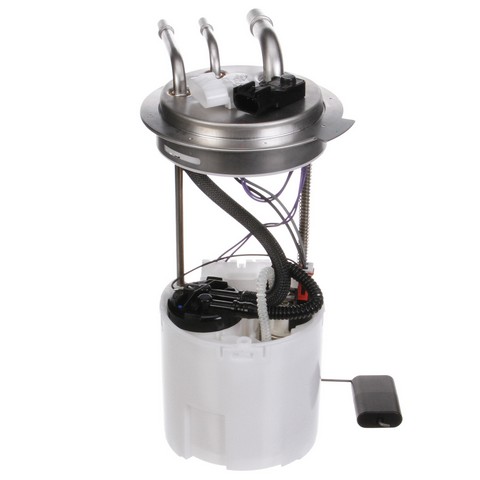

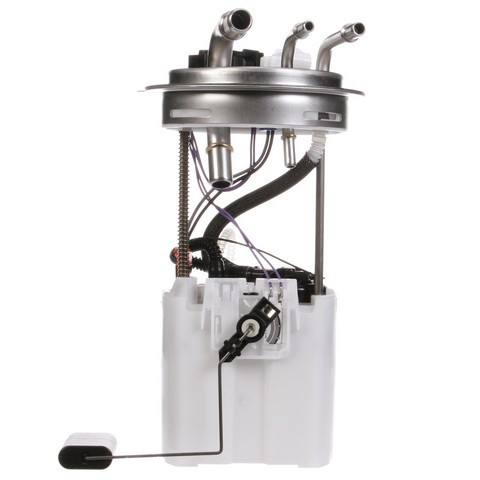

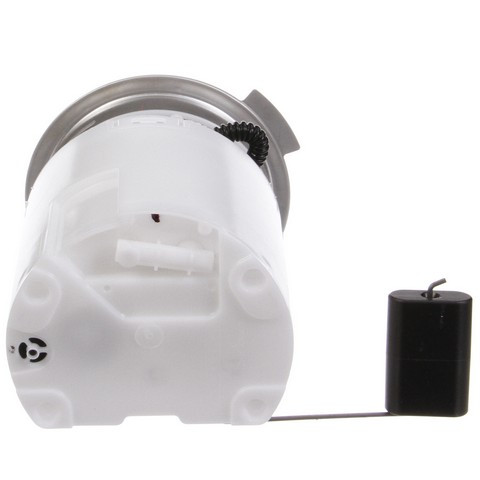

- Part: Delphi FG1153 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2008 Chevrolet Tahoe V8 6.2L, the 2008-2009 Tahoe V8 4.8L or 5.3L, the 2008-2012 Tahoe V8 6.0L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the fuel pump assembly is failing. Before you replace it, rule out a blown fuse, a faulty pump relay and damaged wiring, since the fault may sit elsewhere in the fuel circuit.
Fits
It fits the 2008 GMC Yukon V8 6.2L, the 2008-2009 Yukon V8 4.8L or 5.3L and the 2008-2012 Yukon V8 6.0L, along with the 2008 Cadillac Escalade V8 6.2L and the 2009-2012 Escalade V8 6.0L. A 2008 Cadillac Escalade V8 6.2L takes one module.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm, one seal and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part.
Interchange: M100058 · M100125 · 4010691 · E3765M · DFG1153 · F2776A · 69451 · P76299M · 19256376 · 19259398 · 19300964 · 19368768 · C0288M · A30012 · A44014 · SP6050M
This part cross-references / interchanges with the following part numbers:
M100058, M100125, 4010691, E3765M, DFG1153, F2776A, 69451, P76299M, 19256376, 19259398, 19300964, 19368768, C0288M, A30012, A44014, SP6050M
Frequently Asked Questions
Does the Delphi FG1153 fuel pump module fit the 2008-2012 GMC Yukon V8 6.0L?
Yes. Delphi FG1153 fits the 2008-2012 GMC Yukon V8 6.0L, which takes one module.
Does the Delphi fuel pump module assembly come with the float arm and seal?
Yes. Delphi FG1153 comes with the float arm, a seal and an instruction sheet.
Does the Delphi fuel module float match OE specifications?
Yes. This fuel pump module's empty float height and float retention match OE specifications, which supports a correct gas gauge reading.
Does the Delphi module need anything done to the fuel tank first?
Yes. Check the fuel tank and clean it before you install this fuel pump module.
What does the lower amperage on this fuel pump module do for the electrical system?
Lower amperage means the module pulls less current from the vehicle's electrical system.
