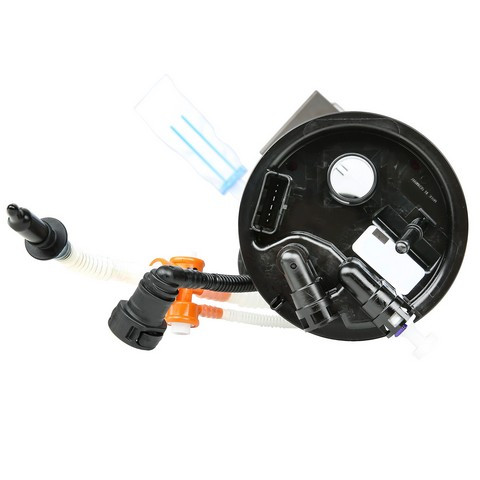

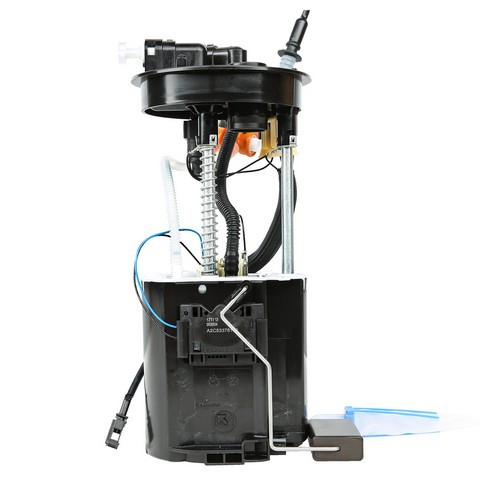

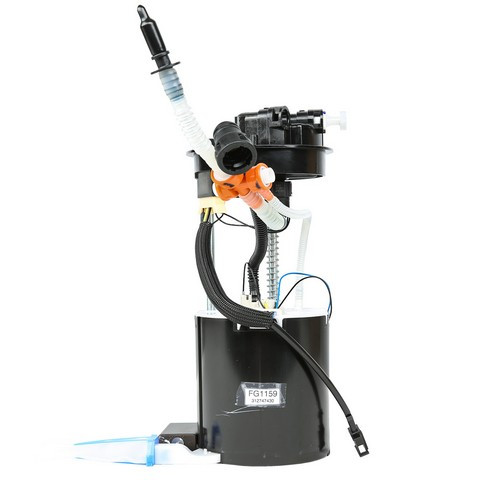

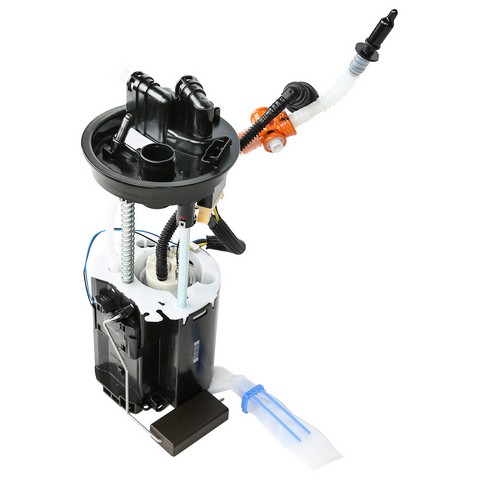

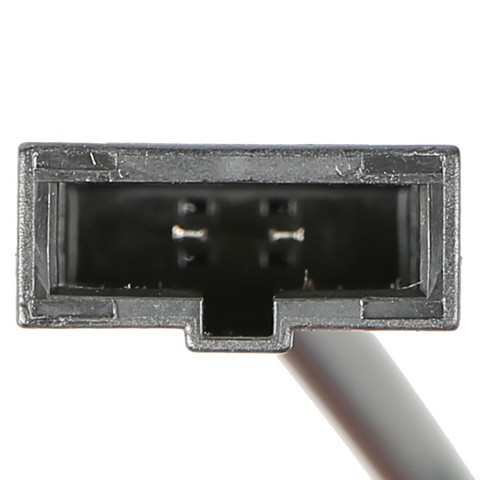

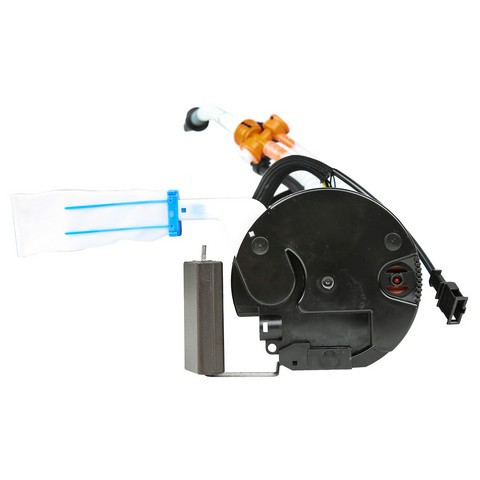

Delphi FG1159 fuel pump module for the 2010-2014 Volvo XC60 6-cylinder 3.2L, the 2015-2016 XC60 6-cylinder 3.0L and other vehicles delivers fuel from the tank to the engine and reports fuel level through its float arm. This Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the vehicle application
- Design and durability aimed at keeping failure rates low
Quick facts
- Part: Delphi FG1159 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2010-2014 Volvo XC60 6-cylinder 3.2L, the 2015-2016 XC60 6-cylinder 3.0L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the module is worn, though a blown fuse or a wiring fault is worth ruling out first. Look at the fuse and compare the gauge with your last fill-up before you buy; a shop can run the fuel pressure tests.
Fits
This module is listed for a wide range of Volvo models, including the 2007-2014 Volvo S80 6-cylinder 3.2L and the 2011-2014 Volvo XC70 6-cylinder 3.2L.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
- Tank seal: included
In the box
One fuel pump module with float arm, one tank seal and one instruction sheet. This listing is a single module; the car takes one.
Installation notes
- Check and clean the fuel tank when installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 30792739-0 · 30792742-0 · 31274743-0 · 31372883-0
E8790M · DFG1159 · A46530 · SP8790M · 30792739 · 30792742 · 31274743 · 31372883
This part cross-references / interchanges with the following part numbers:
E8790M, DFG1159, A46530, SP8790M, 30792739, 30792739-0, 30792742, 30792742-0, 31274743, 31274743-0, 31372883, 31372883-0
Frequently Asked Questions
Will the Delphi FG1159 fuel pump module fit a 2015-2016 Volvo XC60 6-cylinder 3.0L?
Yes. Delphi FG1159 is listed for the 2015-2016 Volvo XC60 6-cylinder 3.0L and the 2010-2014 XC60 6-cylinder 3.2L. Look up your own Volvo in the "Vehicles it fits" section if it is a different model.
Does the Delphi fuel module come with the float arm and tank seal?
Yes. Delphi FG1159 comes with its float arm, a tank seal and an instruction sheet.
Is the float height on the Delphi module set to read the gas gauge correctly?
Yes. Empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Is cleaning the fuel tank part of installing the Delphi FG1159?
Yes. Check and clean the fuel tank when you install this module, and use the instruction sheet in the box for the steps.
Is E8790M an interchange number for the Delphi FG1159?
Yes. E8790M is one of the numbers this module replaces, along with SP8790M and A46530.
