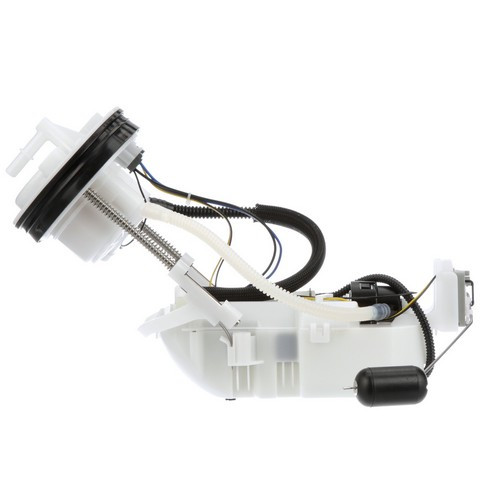

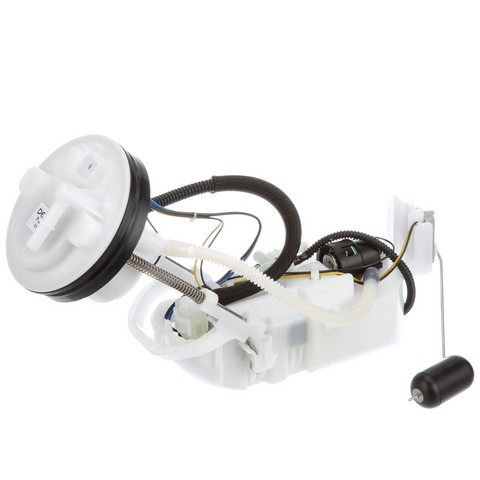

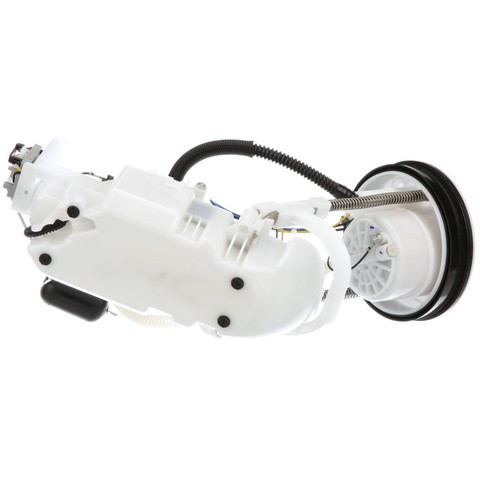

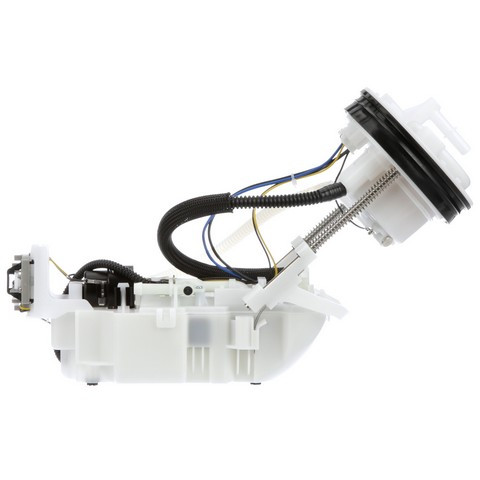

Delphi FG1184 left fuel pump module for the 2009-2014 Acura TL V6 3.7L and other vehicles moves fuel from the tank to the engine. Sometimes listed as a fuel pump assembly, it carries the pump and the float arm that sends the tank level to the gas gauge.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1184 fuel pump module
- Also called: fuel pump assembly
- Fits: 2009-2014 Acura TL V6 3.7L and other vehicles
- Position: Left
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the fuel pump module is worn, though a failed fuel pump relay or a blown fuse can be behind the same signs, so rule those out first.
Fits
This Delphi fuel pump module is a direct-fit replacement for the 2009-2014 Acura TL V6 3.7L, the 2012 Honda Crosstour V6 3.5L and the 2010-2011 Honda Accord Crosstour V6 3.5L, with one module counted per application. This listing is the left-side module, built to Delphi's OE standards.
Specifications
- Position: Left
- Quantity per application: 1
- Condition: New
In the box

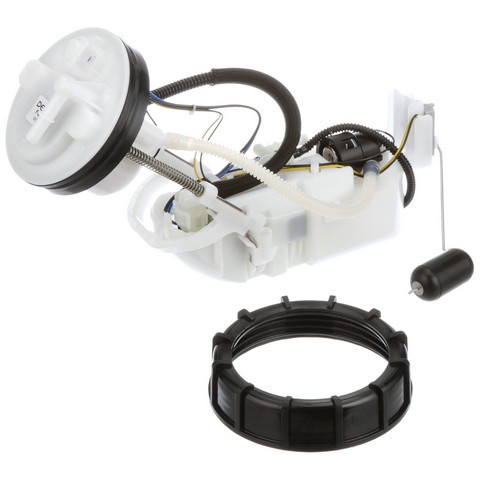

One fuel pump module with float arm, lock ring and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: 17045-TK5-A00 · 17045-TK5-A01 · 17045-TK5-A02 · 17045-TK5-A10 · 17045-TK5-A11 · 17045-TP7-A00 · 17047-TK5-A00 · 17052-TK5-A00
4011276 · E8923M · E9025M · DFG1184 · P77028M · A46526 · SP8064M
This part cross-references / interchanges with the following part numbers:
4011276, E8923M, E9025M, DFG1184, P77028M, 17045-TK5-A00, 17045-TK5-A01, 17045-TK5-A02, 17045-TK5-A10, 17045-TK5-A11, 17045-TP7-A00, 17047-TK5-A00, 17052-TK5-A00, A46526, SP8064M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2012 Honda Crosstour V6 3.5L?
Yes. Delphi FG1184 fits the 2012 Honda Crosstour V6 3.5L, and it is the left-side module.
Does the Delphi fuel module come with a lock ring and float arm?
Yes. Delphi FG1184 comes with the float arm, the lock ring and an instruction sheet.
What does the float on this left fuel pump module do?
The float arm sends the tank level to the gas gauge. Its empty float height and float retention match OE specifications for a correct gauge reading.
Can a worn fuel pump module cause hard starting or a wrong gas gauge reading?
Yes, it can. Hard starting, stalling or an off gauge reading can come from the module, and a shop can test fuel delivery to confirm.
What should I do to the tank before fitting this fuel pump module?
Check and clean the fuel tank first. The instruction sheet that comes with the module covers the install steps.
