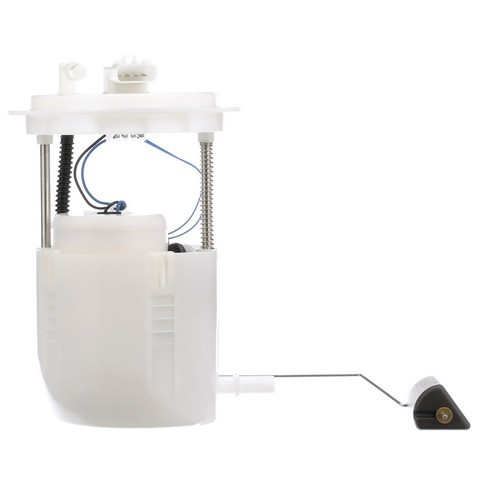

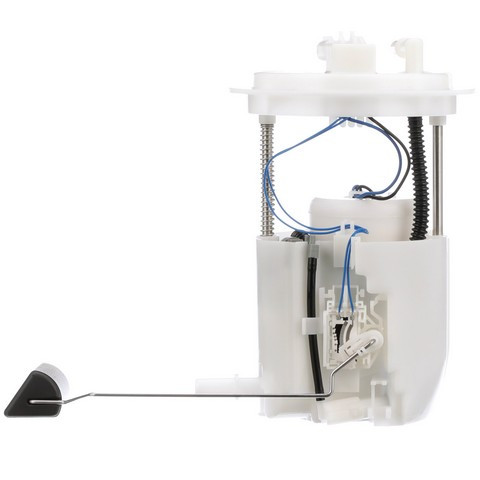

Delphi FG1193 fuel pump module for the 2011 Jeep Wrangler V6 3.8L, the 2012-2017 Wrangler V6 3.6L and other vehicles carries fuel from the tank to the engine. Also called a fuel pump assembly, it is built to Delphi's OE standards.
- Float arm with a matched empty float height and float retention for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1193 fuel pump module
- Also called: fuel pump assembly
- Fits: 2011 Jeep Wrangler V6 3.8L, the 2012-2017 Wrangler V6 3.6L and other vehicles
- Condition: New
Hard starting, sputtering, a whine from the tank or an erratic fuel gauge can mean the pump module is worn. A clogged fuel filter, a bad relay or a blown fuse can be behind those signs too, so find the cause before you buy. The 2012-2017 Jeep Wrangler V6 3.6L takes one module.
Fits
This fuel pump module fits the 2011 Jeep Wrangler V6 3.8L, the 2012-2017 Jeep Wrangler V6 3.6L and the 2018 Jeep Wrangler JK V6 3.6L.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Included with the module: float arm, seal
In the box

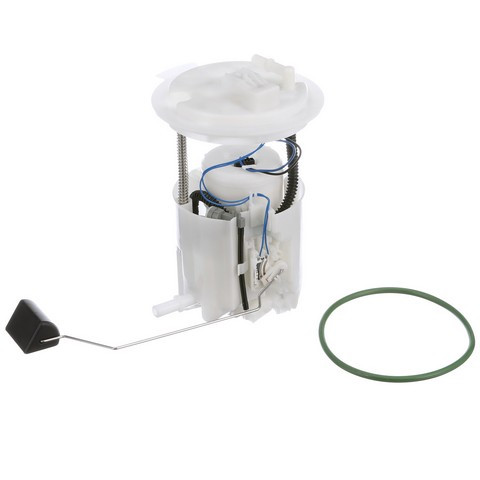

One fuel pump module with float arm, a seal and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet that comes with the part covers the steps.
Interchange: 6800 3388AA · 6806 5575AA · 6806 5575AB · 6806 5575AD · 6806 5575AE · 6806 5575AF
4010953 · E7265M · CFG1193 · P76752M · 68065575AC · C0521M · A33116 · SP7210M · USEP7265M
This part cross-references / interchanges with the following part numbers:
4010953, E7265M, CFG1193, P76752M, 6800 3388AA, 6806 5575AA, 6806 5575AB, 68065575AC, 6806 5575AD, 6806 5575AE, 6806 5575AF, C0521M, A33116, SP7210M, USEP7265M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2018 Jeep Wrangler JK V6 3.6L?
Yes. Delphi FG1193 is listed for the 2018 Jeep Wrangler JK with the V6 3.6L engine, and it also fits the 2012-2017 Jeep Wrangler V6 3.6L.
Does the Delphi fuel module come with the float arm and seal?
Yes. The Delphi FG1193 module comes with its float arm, a seal and an instruction sheet.
Will the float on this Delphi fuel pump module give a correct gas gauge reading?
Yes. This module's empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Is there anything to do before fitting this Delphi module?
Yes. Check and clean the fuel tank first, and follow the instruction sheet that comes with the part for the installation steps.
Does this fuel pump module put less load on the electrical system?
Yes. This module draws lower amperage, so it loads the vehicle's electrical system less. It is also validated and tested for its application.
