Fuel Pump Module for 2007-2011 Ford Ranger - Delphi FG1263

$324.99
WARNING:California Proposition 65▾

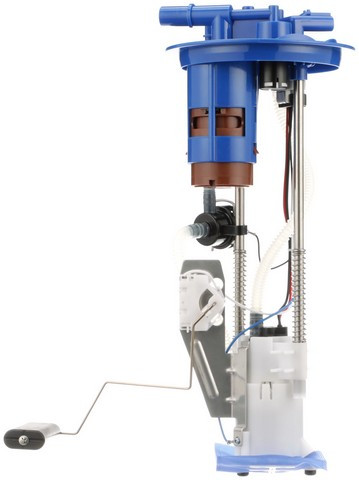

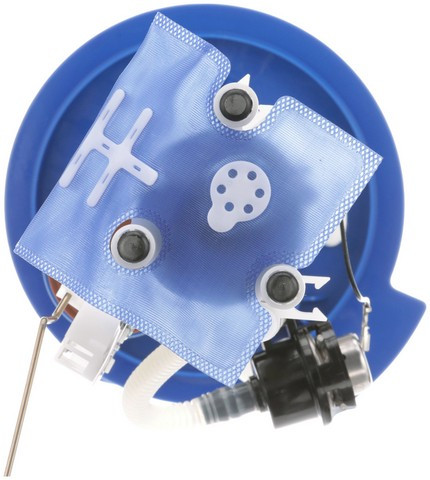

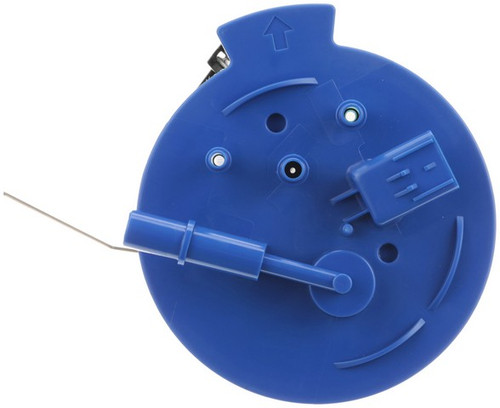

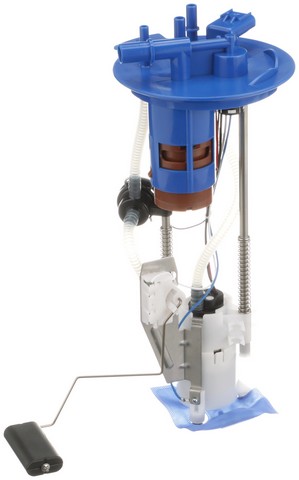

Delphi Fuel Pump Module Assembly FG1263
Delphi Fuel Pump Module Assembly FG1263 - view 2

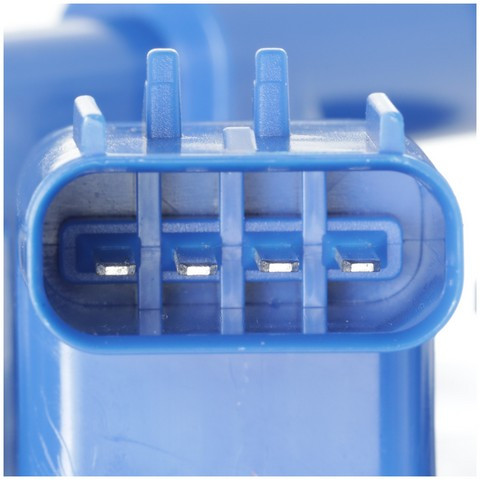

Delphi Fuel Pump Module Assembly FG1263 - view 3
Delphi Fuel Pump Module Assembly FG1263 - view 4
Delphi Fuel Pump Module Assembly FG1263 - view 5
Delphi Fuel Pump Module Assembly FG1263 - view 6
Delphi Fuel Pump Module Assembly FG1263 - view 7

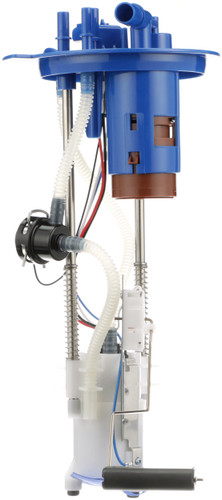

Delphi Fuel Pump Module Assembly FG1263 - view 8

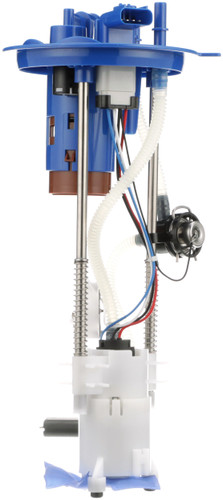

Delphi Fuel Pump Module Assembly FG1263 - view 9
Delphi Fuel Pump Module Assembly FG1263
Delphi Fuel Pump Module Assembly FG1263 - view 2
Delphi Fuel Pump Module Assembly FG1263 - view 3
Delphi Fuel Pump Module Assembly FG1263 - view 4
Delphi Fuel Pump Module Assembly FG1263 - view 5
Delphi Fuel Pump Module Assembly FG1263 - view 6
Delphi Fuel Pump Module Assembly FG1263 - view 7
Delphi Fuel Pump Module Assembly FG1263 - view 8
Delphi Fuel Pump Module Assembly FG1263 - view 9

Vehicles this part fits
    Part number: FG1263
    UPC: 689604232309
    Condition: New
    Weight: 8.40 LBS
    Item Package Quantity: 1
    $324.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert
    Delphi Fuel Pump Module Assembly P/N:FG1263
    Delphi Fuel Pump Module Assembly P/N:FG1263
    $324.99
    $324.99

    Delphi FG1263 fuel pump module for the 2007-2008 Ford Ranger V6 3.0L and the 2007-2011 Ranger 4-cylinder 2.3L or V6 4.0L holds the pump and float arm in the tank and sends fuel to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.

    • Empty float height and float retention for correct gas gauge reading
    • Lower amperage draw puts less load on the vehicle's electrical system
    • Delphi fuel pump module validated, tested and matched to the right vehicle application
    • Design and durability aimed at lower failure rates

    Quick facts

    • Part: Delphi FG1263 fuel pump module
    • Also called: fuel pump assembly
    • Fits: 2007-2008 Ford Ranger V6 3.0L and the 2007-2011 Ranger 4-cylinder 2.3L or V6 4.0L
    • Condition: New

    Hard starting, hesitation or a gas gauge that reads wrong can mean the fuel pump assembly is worn. A clogged fuel filter, a faulty relay or a dirty fuel tank can be behind some of these signs too, so find the cause before you buy a new module.

    Fits

    This module fits the 2007-2008 Ford Ranger V6 3.0L and the 2007-2011 Ranger 4-cylinder 2.3L or V6 4.0L, and each takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Quantity per listing: 1

    Build and materials

    • Condition: New
    • Float: empty float height and float retention match OE specifications

    In the box

    One fuel pump module with float arm, seal and instruction sheet.

    Installation notes

    • Check and clean the fuel tank before installing the module.
    • The instruction sheet that comes with the part covers the steps.

    Interchange: 7L5Z 9H307-C · 8L5Z 9H307-C · 8L5Z 9H307-F · PFS-524
    4010594 · E8707M · DFG1263 · M2496370 · P76469M · C0655M · A27000 · SP2133M · USEP8707M

    This part cross-references / interchanges with the following part numbers:

    4010594, E8707M, DFG1263, M2496370, P76469M, 7L5Z 9H307-C, 8L5Z 9H307-C, 8L5Z 9H307-F, PFS-524, C0655M, A27000, SP2133M, USEP8707M

    Frequently Asked Questions

    Does Delphi FG1263 fit the 2007-2008 Ford Ranger V6 3.0L?

    Yes. Delphi FG1263 fits the 2007-2008 Ford Ranger V6 3.0L and the 2007-2011 Ranger 4-cylinder 2.3L or V6 4.0L, and each takes one.

    Does the Delphi fuel module come with a float arm and seal?

    Yes. Delphi FG1263 comes with a float arm, a seal and an instruction sheet.

    Is the float height on this Delphi module matched for an accurate gas gauge?

    Yes. The empty float height and float retention match OE specifications, which guarantees correct gas gauge reading.

    Does this fuel pump module draw less current from the electrical system?

    Yes. Its lower amperage draw puts less load on the vehicle's electrical system.

    Should the tank be cleaned before installing this fuel pump module?

    Yes. Check and clean the fuel tank first, and follow the included instruction sheet for the installation steps.

    Reviews

    No reviews yet — be the first to review this product.
