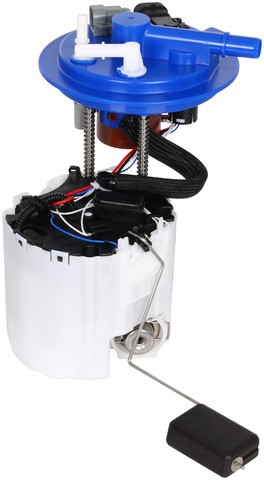

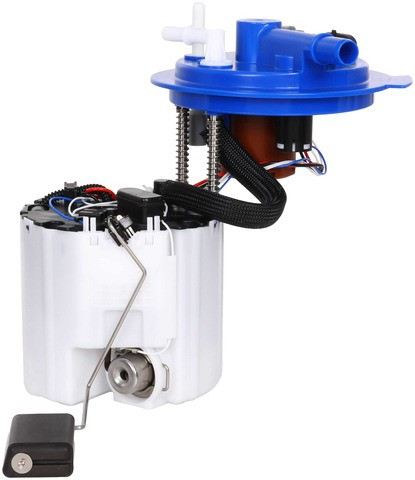

Delphi FG1384 fuel pump module for the 2004-2008 Chevrolet Malibu V6 3.5L, the 2006-2007 Malibu V6 3.9L, the 2008 Malibu 4-cylinder 2.4L or V6 3.6L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module is built to the company's own OE standards.
- Empty float height and float retention are set for correct gas gauge readings
- Lower amperage draw puts less load on the electrical system
- Design and durability that lower failure rates
- Validated and tested for its application
Quick facts
- Part: Delphi FG1384 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2004-2008 Chevrolet Malibu V6 3.5L, the 2006-2007 Malibu V6 3.9L, the 2008 Malibu 4-cylinder 2.4L or V6 3.6L and other vehicles
- Condition: New
A failing fuel pump assembly can show up as hard starting, stalling or a gas gauge that does not match the tank level. Before you replace the module, rule out a blown fuse, a bad relay and a contaminated tank, since any of them can look like a failed pump.
Fits
It also fits the 2005-2008 Pontiac G6 V6 3.5L, the 2006-2008 G6 4-cylinder 2.4L or V6 3.9L, the 2007-2008 G6 V6 3.6L and the 2007-2008 Saturn Aura 4-cylinder 2.4L, V6 3.5L or 3.6L. The 2004-2008 Chevrolet Malibu V6 3.5L takes one module, and so does every other car named here.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump module with float arm, a seal, a fuel feed line and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: M10086 · M10119 · MU1600 · MU1642 · 4010473 · E3591M · E3591MN · FFG1384 · F2502A · 67520 · 67521 · M3480497 · P76246M · 10376291 · 19153326 · 19179818 · 19179819 · 19179820 · 19418073 · 22717995 · D0229M · A43013 · SP6602M · USEP3591M
This part cross-references / interchanges with the following part numbers:
M10086, M10119, MU1600, MU1642, 4010473, E3591M, E3591MN, FFG1384, F2502A, 67520, 67521, M3480497, P76246M, 10376291, 19153326, 19179818, 19179819, 19179820, 19418073, 22717995, D0229M, A43013, SP6602M, USEP3591M
Frequently Asked Questions
Does this Chevy Malibu fuel pump module fit a 2006-2007 Malibu V6 3.9L?
Yes. Delphi FG1384 fits the 2006-2007 Chevrolet Malibu V6 3.9L, along with the 2004-2008 Malibu V6 3.5L and the 2008 Malibu 4-cylinder 2.4L or V6 3.6L.
Is the Delphi FG1384 the right module for a 2007-2008 Saturn Aura 4-cylinder 2.4L?
Yes. Delphi FG1384 fits the 2007-2008 Saturn Aura 4-cylinder 2.4L, V6 3.5L or 3.6L.
What comes with this Delphi fuel pump module assembly?
The package holds the module assembly with its float arm, a seal, a fuel feed line and an instruction sheet.
Does this Delphi fuel module match the float height for the gas gauge?
Yes. Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
What should I do about the fuel tank when installing this Delphi module?
Check and clean the fuel tank before the new module goes in. The instruction sheet in the package covers the steps.
