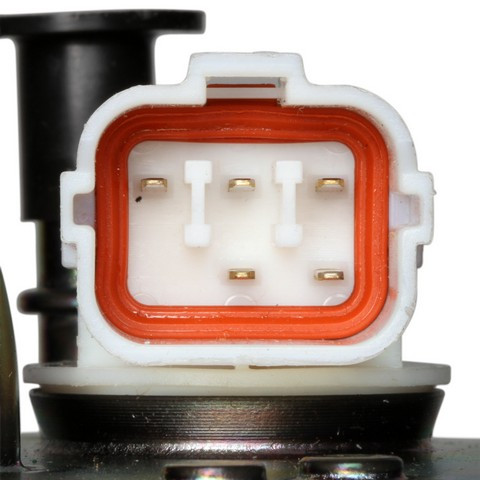

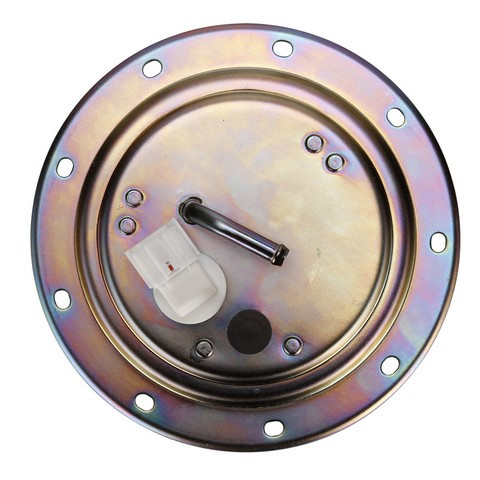

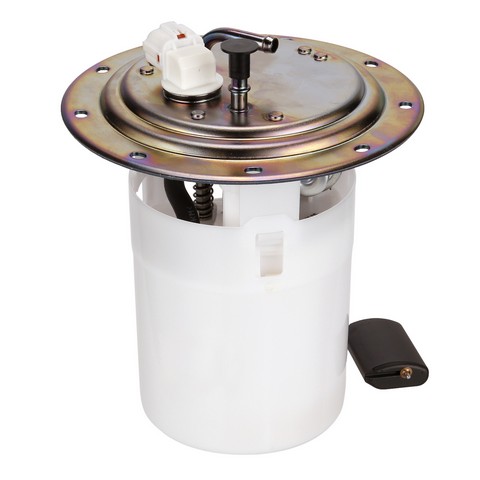

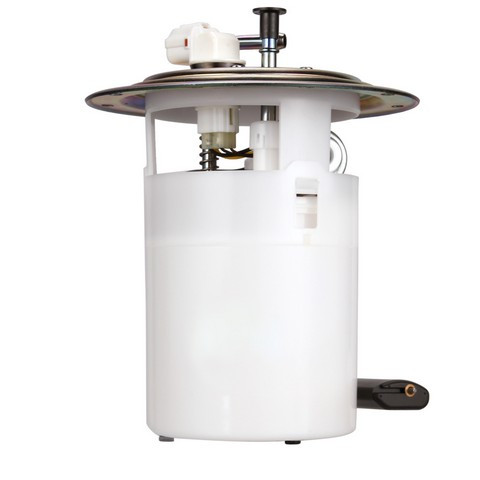

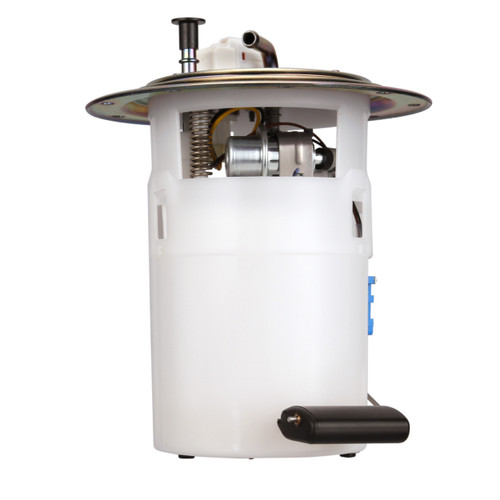

Delphi FG1345 fuel pump module for the 2004-2006 Hyundai Elantra 4-cylinder 2.0L and other vehicles delivers fuel from the tank to the engine. Its float arm reports the fuel level to the gas gauge.
- Empty float height and float retention are held to specification, so the gas gauge reads correctly
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1345 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2006 Hyundai Elantra 4-cylinder 2.0L and other vehicles
- Condition: New
A weak fuel pump assembly can show up as hard starting, stalling or a gas gauge that reads wrong. Before you replace the module, rule out a blown fuse, a bad relay or damaged wiring, since each of those can mimic a failing pump.
Fits
This module fits the 2004-2006 Hyundai Elantra 4-cylinder 2.0L, the 2005-2008 Hyundai Tiburon V6 2.7L and the 2007-2008 Tiburon 4-cylinder 2.0L. A car needs just one module, and this listing is a single module. Delphi builds its fuel pumps to its OE standards.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box

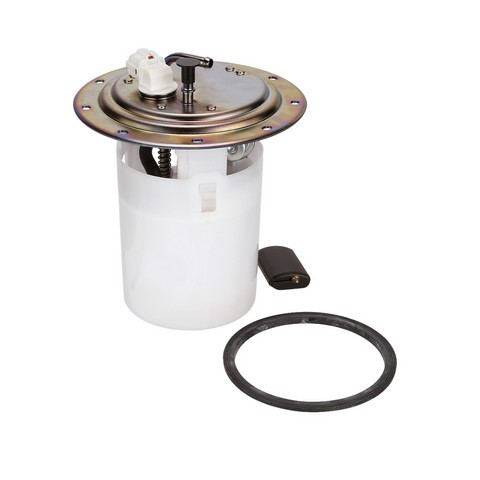

One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the module for the installation steps.
Interchange: 951-0007 · 31110-2D531
4010400 · E8335 · E8736M · CFG1345 · P76406M · AFS0894P · RE0894P · A30241 · E16009 · C0666M · SP1118 · SP3013M · USEP8736M
This part cross-references / interchanges with the following part numbers:
4010400, E8335, E8736M, CFG1345, P76406M, 951-0007, AFS0894P, RE0894P, 31110-2D531, A30241, E16009, C0666M, SP1118, SP3013M, USEP8736M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2004-2006 Hyundai Elantra 4-cylinder 2.0L?
Yes. Delphi FG1345 fits the 2004-2006 Hyundai Elantra 4-cylinder 2.0L, and each Elantra takes one module.
Is this Delphi fuel module right for the 2005-2008 Hyundai Tiburon V6 2.7L?
Yes. Delphi FG1345 also fits the 2005-2008 Hyundai Tiburon V6 2.7L and the 2007-2008 Tiburon 4-cylinder 2.0L, with one module per car.
What is supplied with this Delphi module?
The listing is one fuel pump module with a float arm, a seal and an instruction sheet.
Does the Delphi fuel pump module give a correct gas gauge reading?
Yes. This fuel pump module's empty float height and float retention match OE specifications, which is what gives a correct gas gauge reading.
Do I need to clean the fuel tank when fitting this fuel pump module?
Yes. Check and clean the fuel tank before installing, and follow the instruction sheet that comes with the module for the steps.
