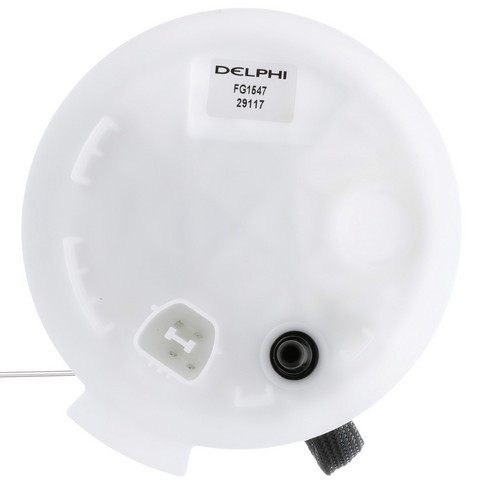

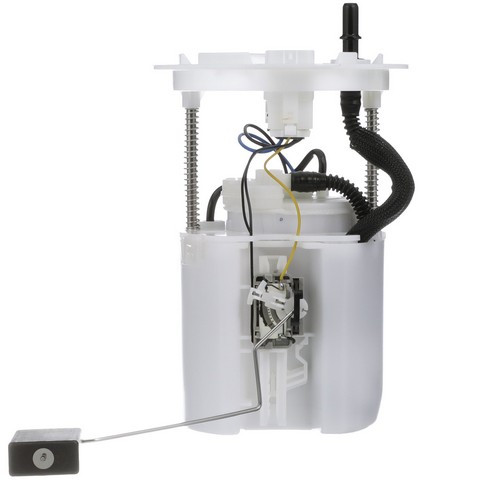

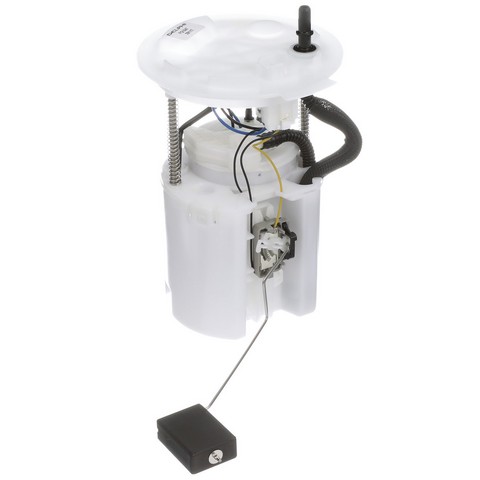

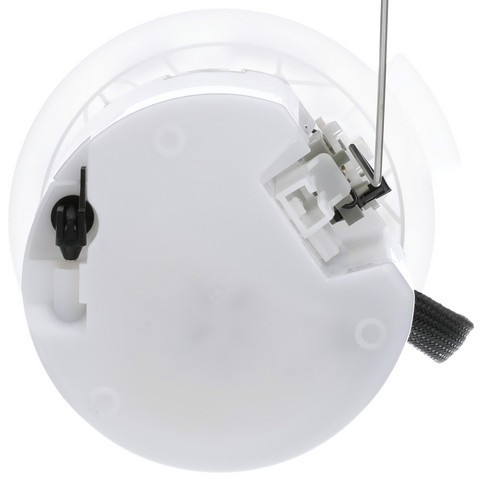

Delphi FG1547 fuel pump module for the 2013-2014 Ford Fusion 4-cylinder 1.6L, the 2013-2020 Fusion 4-cylinder 2.0L, the 2014-2020 Fusion 4-cylinder 1.5L and other vehicles moves fuel from the tank toward the engine. This fuel pump module, also called a fuel pump assembly, carries the float arm that reads the fuel level for the gas gauge. Delphi builds all its fuel pumps to its OE standards, and the empty float height and float retention match OE specifications.
- Set float height and float retention for a correct gas gauge reading
- Lower amperage draws less load on the vehicle's electrical system
- Delphi fuel pump module is validated and tested, and matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG1547 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2013-2014 Ford Fusion 4-cylinder 1.6L, the 2013-2020 Fusion 4-cylinder 2.0L, the 2014-2020 Fusion 4-cylinder 1.5L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean this module is worn, though a clogged fuel filter or a damaged fuel line can be behind the same signs, so find the cause first.
Fits
The module also fits the 2013-2020 Lincoln MKZ 4-cylinder 2.0L, and the MKZ takes one.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: DG9Z 9A299-A · DG9Z 9A299-G · DG9Z 9H307-A · DG9Z 9H307-N · DG9Z 9H307-Y · PFS-1036 · PS-957
4010781 · E2609M · DFG1547 · P76864M · P77342M · C0162M · SP2500M
This part cross-references / interchanges with the following part numbers:
4010781, E2609M, DFG1547, P76864M, P77342M, DG9Z 9A299-A, DG9Z 9A299-G, DG9Z 9H307-A, DG9Z 9H307-N, DG9Z 9H307-Y, PFS-1036, PS-957, C0162M, SP2500M
Frequently Asked Questions
Does the Delphi FG1547 fit the 2013-2020 Lincoln MKZ 4-cylinder 2.0L?
Yes. Delphi FG1547 is listed for the 2013-2020 Lincoln MKZ 4-cylinder 2.0L, and that car takes one module.
Does the Delphi fuel pump module assembly come with a float arm and seal?
Yes. The package holds one fuel pump module with its float arm, a seal and an instruction sheet.
Is the Delphi fuel module's float height set to OE specifications?
Yes. Empty float height and float retention match OE specifications, which supports a correct gas gauge reading.
Does the Delphi module draw less load on the electrical system?
Yes. Delphi FG1547 runs at lower amperage, so it draws less load on the vehicle's electrical system.
Does Delphi FG1547 replace the number DG9Z 9A299-A?
Yes. DG9Z 9A299-A is one of the numbers Delphi FG1547 replaces; the full list is on the Interchange line.
