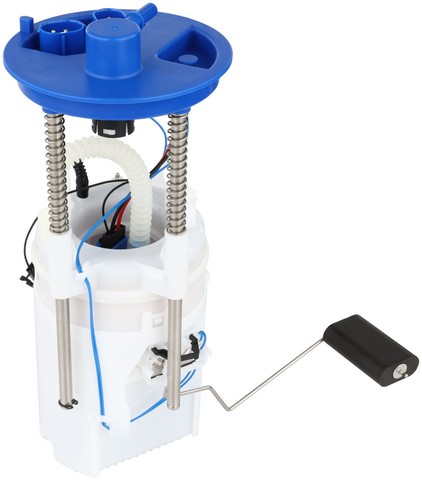

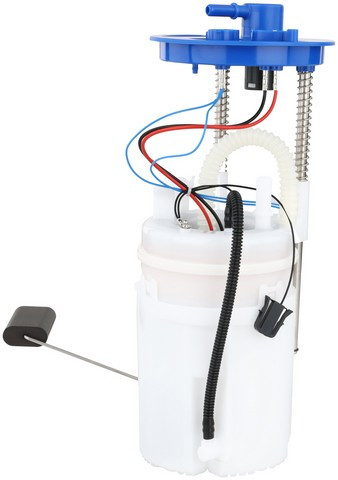

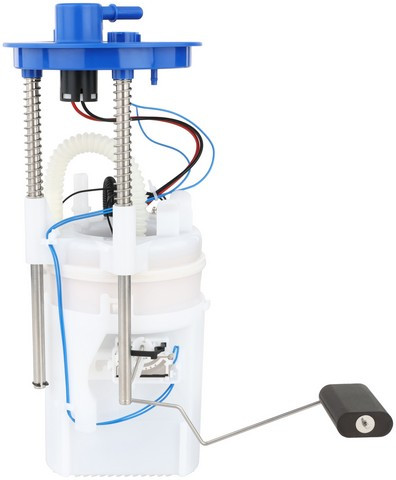

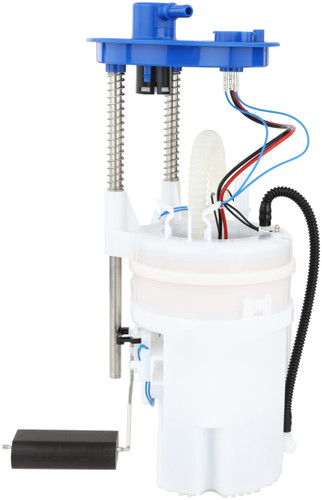

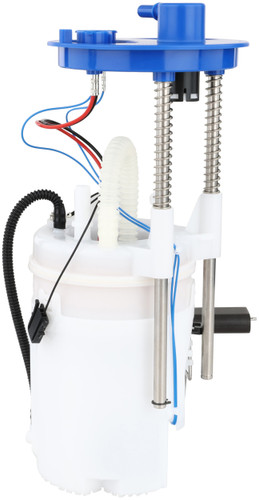

Delphi FG1599 fuel pump module for the 2011-2015 BMW X5 6-cylinder 3.0L and other vehicles supplies fuel from the tank to the engine. This fuel pump assembly is built to Delphi's OE standards and is matched to its vehicle application.
- Empty float height and float retention are held to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Module is validated and tested
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1599 fuel pump module
- Also called: fuel pump assembly
- Fits: 2011-2015 BMW X5 6-cylinder 3.0L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the module is worn. Before you replace it, rule out a clogged fuel filter, a wiring or relay fault and debris in the tank. If the module is the cause, this one takes its place.
Fits
It fits the 2011-2015 BMW X5 6-cylinder 3.0L and the 2008-2014 BMW X6 6-cylinder 3.0L. Each takes one module, sitting in the fuel tank.
Specifications
- Engine: L6-3.0L
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump module with float arm, seal, clamp and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- Follow the instruction sheet that comes with the part for the install steps.
Interchange: 16 11 4 858 372 · 16 11 7 195 474 · 16 11 7 207 599 · 16 11 7 212 633 · 4011339 · E8960M · DFG1599 · P77063M · A46532 · SP8960M
This part cross-references / interchanges with the following part numbers:
4011339, E8960M, DFG1599, 16 11 4 858 372, 16 11 7 195 474, 16 11 7 207 599, 16 11 7 212 633, P77063M, A46532, SP8960M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2011-2015 BMW X5 6-cylinder 3.0L?
Yes. Delphi FG1599 fits the 2011-2015 BMW X5 6-cylinder 3.0L and the 2008-2014 BMW X6 6-cylinder 3.0L, and each takes one.
Which pieces come with the Delphi fuel module?
The Delphi FG1599 fuel pump module comes with a float arm, a seal, a clamp and an instruction sheet.
Is the float on this Delphi fuel pump module set to a specification?
Yes. Empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Do I need to clean the tank before installing the Delphi module?
Yes. Inspect the tank and clean it out before the new module goes in; the instruction sheet in the box covers the remaining steps.
Does Delphi FG1599 interchange with 16 11 7 195 474?
Yes. Delphi FG1599 is listed as a replacement for number 16 11 7 195 474, and the Interchange line gives the other numbers it replaces.
