Fuel Pump Module for 2006-2011 Hyundai Azera - Delphi FG1685

$497.99
WARNING:California Proposition 65▾
Delphi Fuel Pump Module Assembly FG1685
Delphi Fuel Pump Module Assembly FG1685 - view 2
Delphi Fuel Pump Module Assembly FG1685 - view 3
Delphi Fuel Pump Module Assembly FG1685 - view 4
Delphi Fuel Pump Module Assembly FG1685 - view 5
Delphi Fuel Pump Module Assembly FG1685 - view 6
Delphi Fuel Pump Module Assembly FG1685 - view 7
Delphi Fuel Pump Module Assembly FG1685 - view 8
Delphi Fuel Pump Module Assembly FG1685
Delphi Fuel Pump Module Assembly FG1685 - view 2
Delphi Fuel Pump Module Assembly FG1685 - view 3
Delphi Fuel Pump Module Assembly FG1685 - view 4
Delphi Fuel Pump Module Assembly FG1685 - view 5
Delphi Fuel Pump Module Assembly FG1685 - view 6
Delphi Fuel Pump Module Assembly FG1685 - view 7
Delphi Fuel Pump Module Assembly FG1685 - view 8

Vehicles this part fits
    Part number: FG1685
    UPC: 689604241622
    Condition: New
    Weight: 7.87 LBS
    Item Package Quantity: 1
    $497.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

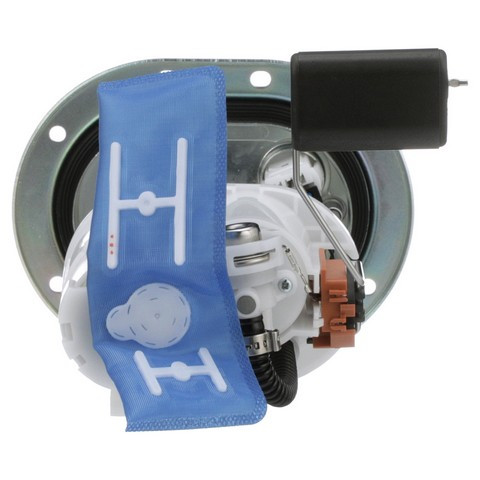

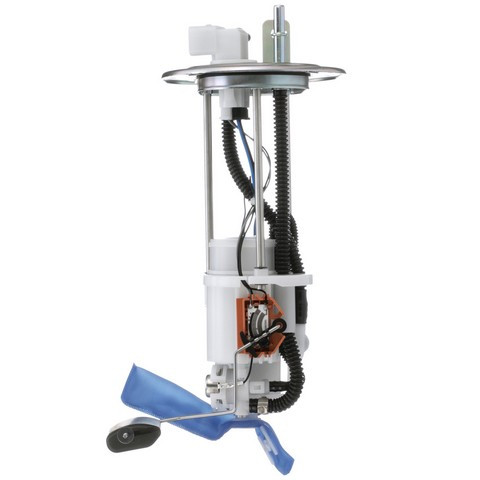

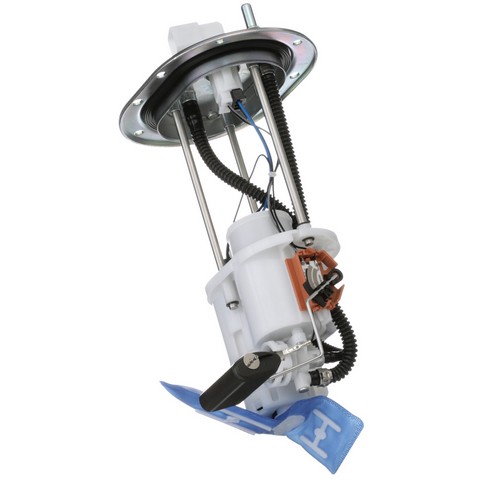

    Delphi Fuel Pump Module Assembly P/N:FG1685
    Delphi Fuel Pump Module Assembly P/N:FG1685
    $497.99
    $497.99

    Delphi FG1685 fuel pump module for the 2006-2011 Hyundai Azera V6 3.8L and the 2007-2011 Azera V6 3.3L delivers fuel from the tank to the engine. The Delphi fuel pump module assembly replaces a worn or failed unit inside the tank and is built to Delphi's OE standards.

    • Empty float height and float retention give a correct gas gauge reading
    • Lower amperage draws less load on the vehicle's electrical system
    • Validated, tested and matched to the right vehicle application
    • Lower failure rates from its design and durability

    Quick facts

    • Part: Delphi FG1685 fuel pump module
    • Also called: fuel pump assembly
    • Fits: 2006-2011 Hyundai Azera V6 3.8L and the 2007-2011 Azera V6 3.3L
    • Condition: New

    Hard starting, sputtering or a gas gauge that reads wrong can mean the module is weak or its float is faulty. Other fuel-system problems can produce these symptoms too, so let a shop test the pump first, since that test needs the fuel line opened or the engine running. If the module is the cause, this unit replaces it.

    Fits

    It fits the 2006-2011 Hyundai Azera V6 3.8L and the 2007-2011 Azera V6 3.3L.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Engines: V6-3.8L (2006-2011), V6-3.3L (2007-2011)

    Build and materials

    • Float arm: included
    • Condition: New

    In the box

    One fuel pump module with float arm and one instruction sheet. This listing holds one module, and the vehicle takes one.

    Installation notes

    • Check and clean the fuel tank before installing the module.
    • The instruction sheet that comes with the module covers the steps.

    Interchange: 31110-3L500 · 31110-3L500DS · 31111-3L000 · 31111-F6000
    E8818 · E8832M · DFG1685 · 69865 · P76908 · P77181M · A46503 · E16468 · SP1322 · SP3065M · USEP8832M

    This part cross-references / interchanges with the following part numbers:

    E8818, E8832M, DFG1685, 69865, P76908, P77181M, 31110-3L500, 31110-3L500DS, 31111-3L000, 31111-F6000, A46503, E16468, SP1322, SP3065M, USEP8832M

    Frequently Asked Questions

    Does the Delphi FG1685 fit the 2007-2011 Hyundai Azera V6 3.3L?

    Yes. Delphi FG1685 fits the 2006-2011 Hyundai Azera V6 3.8L and the 2007-2011 Azera V6 3.3L, and each takes one.

    Does the Delphi fuel module come with the float arm?

    Yes. This fuel pump module includes the float arm and an instruction sheet. Nothing else is listed in the box.

    Will the float on this fuel pump assembly give a correct gas gauge reading?

    Yes. On the Delphi FG1685, empty float height and float retention match OE specifications, which gives a correct gas gauge reading.

    Could hard starting mean the fuel pump module is failing?

    It can. A weak pump can show up as hard starting, sputtering or stalling, and a faulty float as a gas gauge that reads wrong.

    Does the Delphi FG1685 come with installation instructions?

    Yes. An instruction sheet comes with the Delphi FG1685 module. Check and clean the fuel tank before installing it.
