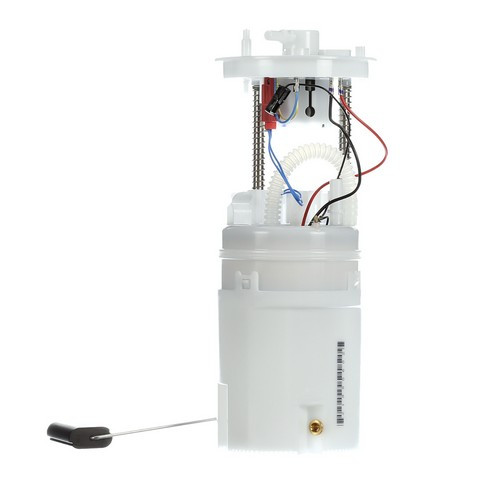

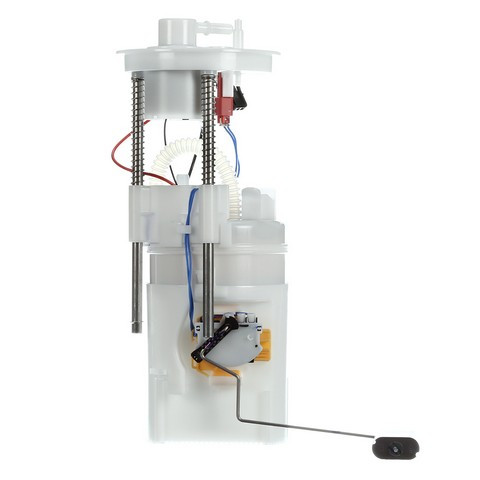

Delphi FG1701 fuel pump module for the 2007-2010 BMW X5 V8 4.8L moves fuel from the tank toward the engine. This Delphi fuel pump module assembly also carries the float arm for the fuel gauge and is built to Delphi's OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1701 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2010 BMW X5 V8 4.8L
- Condition: New
A worn module can show up as hard starting, stumbling or a fuel gauge that reads wrong. A weak fuse, a relay or another fuel part can produce these symptoms too, so with the engine off, look at the fuel pump fuse and relay before replacing the module. A shop can test fuel pressure.
Fits
This module is a direct-fit replacement for the 2007-2010 BMW X5 V8 4.8L, and that X5 takes one.
Specifications
- Quantity per vehicle: 1
- Condition: New
In the box
One fuel pump module with float arm, a seal, a clamp and an instruction sheet.
Installation notes
- An instruction sheet comes with the module.
- Check and clean the fuel tank before installing.
Interchange: 16 11 4 858 372 · 16 11 7 195 464 · 16 11 7 195 474 · 16 11 7 212 633
DFG1701 · SP5158M
This part cross-references / interchanges with the following part numbers:
DFG1701, 16 11 4 858 372, 16 11 7 195 464, 16 11 7 195 474, 16 11 7 212 633, SP5158M
Frequently Asked Questions
Does the Delphi fuel pump module FG1701 fit the 2007-2010 BMW X5 V8 4.8L?
Yes. Delphi FG1701 is a direct-fit replacement for the 2007-2010 BMW X5 V8 4.8L, and that X5 takes one module.
What comes with the Delphi FG1701 besides the pump itself?
Delphi FG1701 includes the float arm, a seal, a clamp and an instruction sheet.
Does this Delphi module draw less current from the electrical system?
Yes. It runs at a lower amperage, which leaves less load on the vehicle's electrical system.
How can I tell if a fuel pump assembly is going bad?
Hard starting, stalling or a gauge that reads wrong can mean a worn module. A shop can test fuel pressure, since that involves opening the fuel line.
Will the float on this Delphi fuel module give a correct gas gauge reading?
Yes. Its empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
