Fuel Pump Module for 2005-2006 Chevrolet Equinox & More - Delphi FG1845

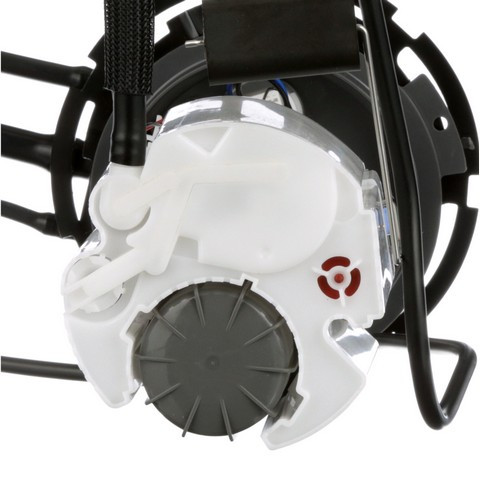

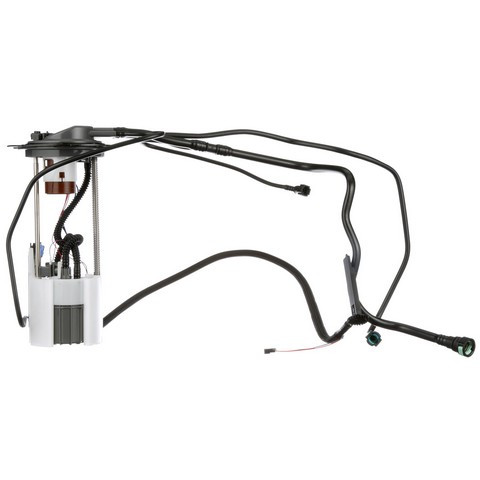

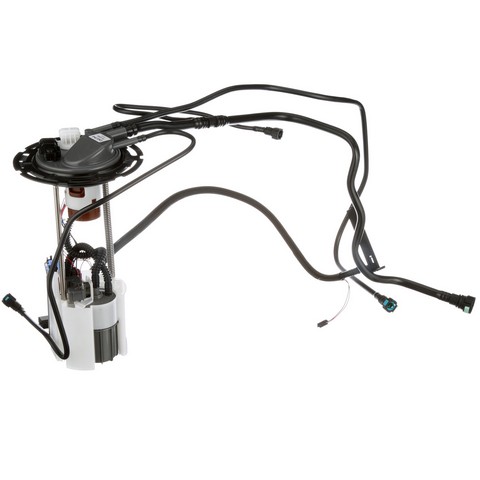

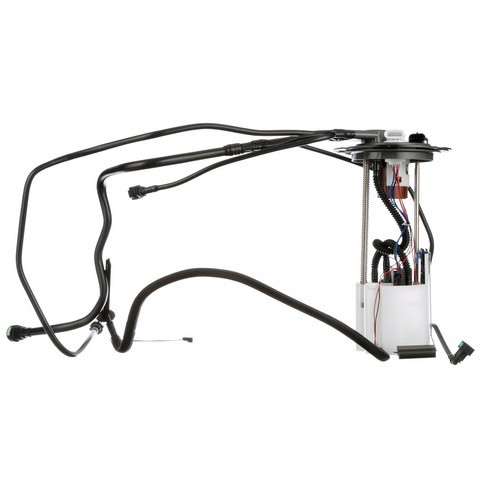

Delphi FG1845 fuel pump module for the 2005-2006 Chevrolet Equinox V6 3.4L and other vehicles moves fuel from the tank toward the engine. The module, also called a fuel pump assembly, carries a float arm that reads the tank level for the gas gauge.

• Empty float height and float retention set to specification for a correct gas gauge reading
• Lower amperage draw, so less load on the vehicle's electrical system
• Validated, tested and matched to the right vehicle application
• Design and durability aimed at lower failure rates

Quick facts

• Part: Delphi FG1845 fuel pump module
• Also called: fuel pump assembly
• Fits: 2005-2006 Chevrolet Equinox V6 3.4L and other vehicles
• Position: Left, Right
• Condition: New

Hard starting or a fuel gauge that reads wrong can mean the module is wearing out. Before you replace it, rule out a dirty fuel tank and other faults in the fuel system, and clean the tank when the new module goes in.

Fits

The 2005-2006 Chevrolet Equinox V6 3.4L takes one module, as do the 2004-2006 Saturn Vue 4-cylinder 2.2L or V6 3.5L and the 2006 Pontiac Torrent V6 3.4L.

Specifications

In the box

One fuel pump module with float arm, a seal and an instruction sheet.

Interchange: MU1526 · MU1577 · FFG1845 · F2637A · 66108 · 66109 · 67528 · P76263M · 15867657 · 19122388 · 19150630 · 19370681 · A30192 · SP6605M
