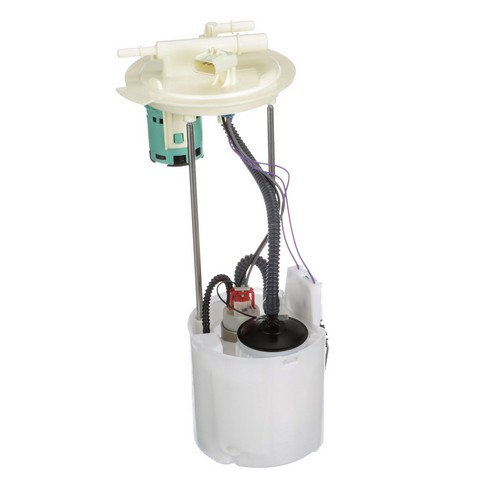

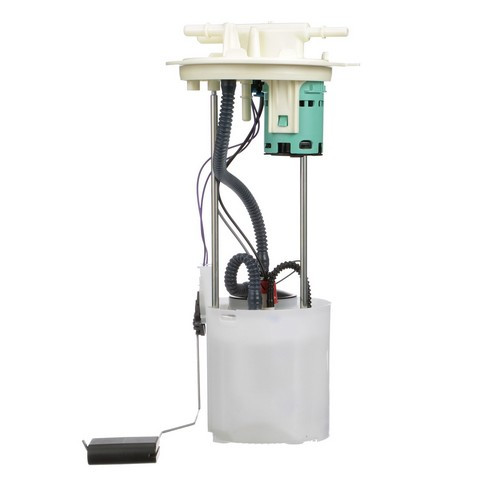

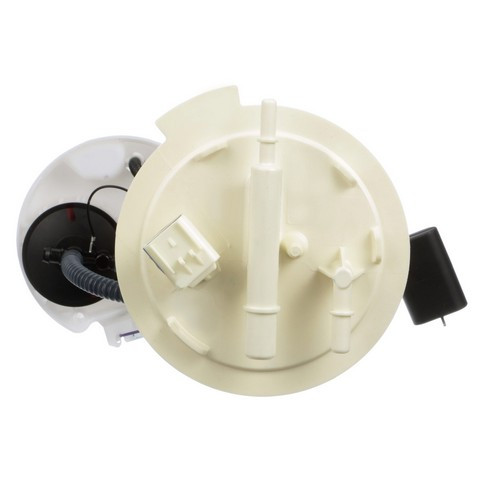

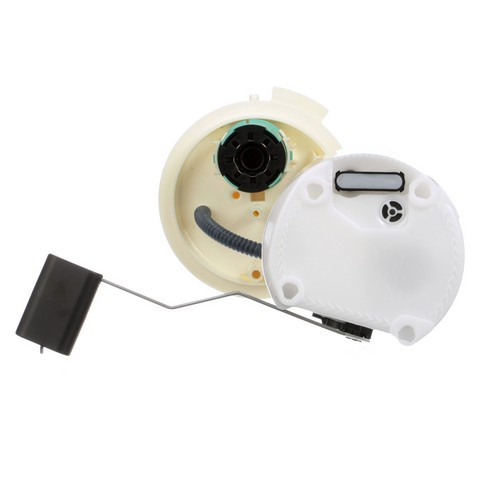

Fuel Pump Module for 2015-2020 Ford F-150 - Delphi FG1973

Delphi FG1973 fuel pump module for the 2015-2020 Ford F-150 V6 2.7L or 3.5L moves fuel from the tank toward the engine. This Delphi fuel pump module assembly comes with a float arm that reports the fuel level to the gauge.

• Empty float height and float retention set for a correct gas gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated, tested and matched to the right vehicle application
• Lower failure rates from its design and durability

Quick facts

• Part: Delphi FG1973 fuel pump module
• Also called: fuel pump assembly
• Fits: 2015-2020 Ford F-150 V6 2.7L or 3.5L
• Condition: New

Hard starting, stalling or a fuel gauge that reads wrong can mean this module is worn, though a failed relay or damaged wiring can produce some of the same symptoms, so find the cause before you replace it.

Fits

This module fits the 2015-2020 Ford F-150 V6 2.7L or 3.5L, and the truck takes one. Delphi builds all of its fuel pumps to Delphi's OE standards.

Specifications

In the box

One fuel pump module with float arm and one instruction sheet.

Installation notes

• Check and clean the fuel tank before installing the module.
• An instruction sheet comes with the part.

Interchange: FL3Z 9H307-F · FL3Z 9H307-N · HL3Z 9A299-A · HL3Z 9H307-B · HL3Z 9H307-F · PFS-1057 · PFS-1136 · PFS-1224 · PS-1015
4011415 · DFG1973 · A46036 · SP2555M
