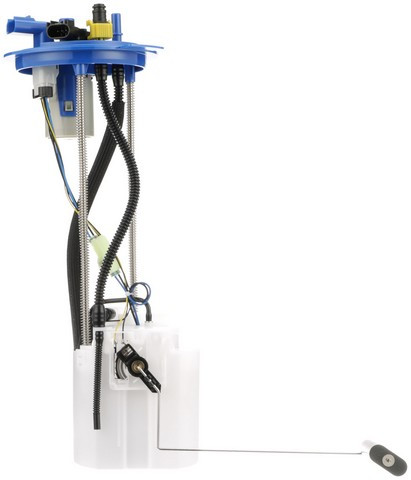

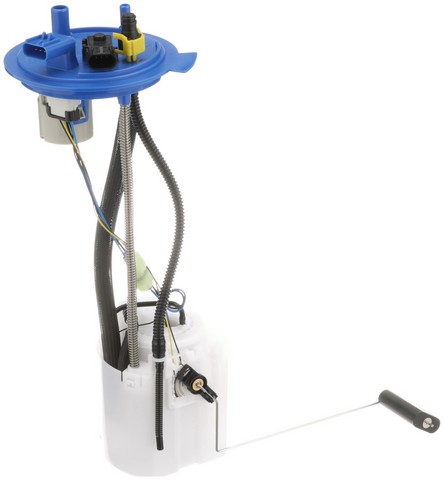

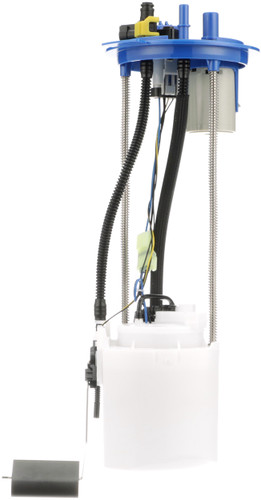

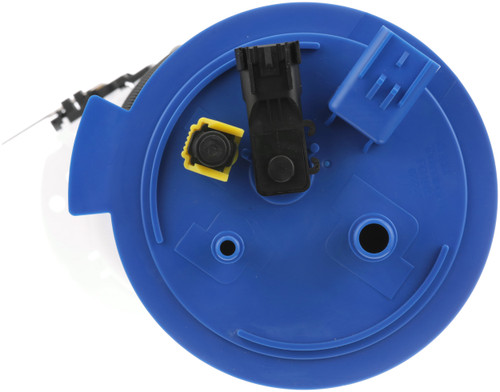

Delphi FG1983 fuel pump module for the 2010-2019 Ford E-350 Super Duty V10 6.8L, the 2011-2016 E-350 Super Duty V8 5.4L and other vehicles delivers fuel from the tank to the engine. Its float arm senses the fuel level for the gas gauge.
- Empty float height and float retention are set for correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested for its application
- Design aimed at lower failure rates
Quick facts
- Part: Delphi FG1983 fuel pump module
- Also called: fuel pump assembly
- Fits: 2010-2019 Ford E-350 Super Duty V10 6.8L, the 2011-2016 E-350 Super Duty V8 5.4L and other vehicles
- Condition: New
A worn fuel pump module, sometimes called a fuel pump assembly, can show up as hard starting, stalling or a gas gauge that reads wrong. A clogged fuel filter, a bad fuel pump relay or a blown fuse can also sit behind those symptoms, so find the cause before you buy.
Fits
The same module fits the 2010-2016 Ford E-450 Super Duty V8 5.4L and the 2010-2019 E-450 Super Duty V10 6.8L. The 2010-2019 Ford E-350 Super Duty V10 6.8L takes one module, and the same goes for the other vehicles named here. Delphi builds the module to its OE standards.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Condition: New
In the box
One fuel pump module with float arm and one instruction sheet.
Installation notes
- Follow the instruction sheet for the installation steps.
- Check and clean the fuel tank before installing.
Interchange: AC2Z 9H307-A · AC2Z 9H307-C · PFS-972
4011387 · E2586M · DFG1983 · P76581M · DC2Z9H307A · C0154M · A43028 · SP2483M
This part cross-references / interchanges with the following part numbers:
4011387, E2586M, DFG1983, P76581M, AC2Z 9H307-A, AC2Z 9H307-C, DC2Z9H307A, PFS-972, C0154M, A43028, SP2483M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit a 2010-2019 Ford E-350 Super Duty V10 6.8L?
Yes. Delphi FG1983 fits the 2010-2019 Ford E-350 Super Duty V10 6.8L and the 2011-2016 E-350 Super Duty V8 5.4L.
Is this Delphi fuel pump module made for the 2010-2016 Ford E-450 Super Duty V8 5.4L?
Yes. Delphi FG1983 fits the 2010-2016 Ford E-450 Super Duty V8 5.4L and the 2010-2019 E-450 Super Duty V10 6.8L.
Does the Delphi fuel module include the float arm?
Yes. The module comes with its float arm and an instruction sheet.
How does this fuel pump module keep the gas gauge accurate?
Its empty float height and float retention match OE specifications, which is what keeps the gas gauge reading correct.
Is there anything to do to the tank before installing this fuel pump module?
Yes. Check and clean the fuel tank first, and follow the instruction sheet that comes with the module.
