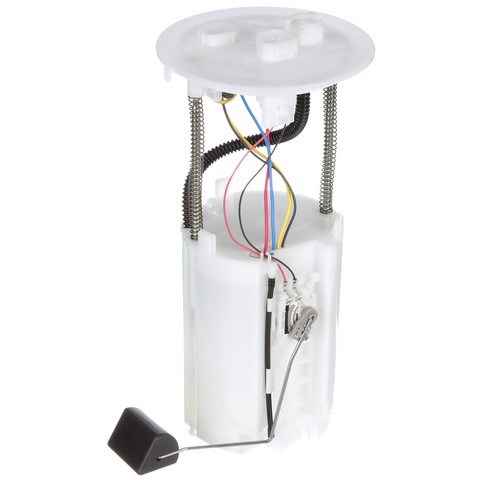

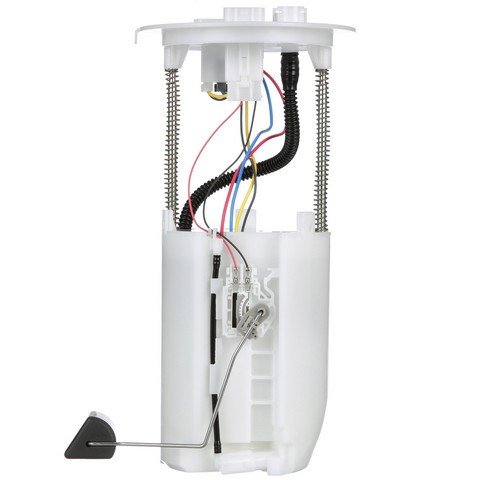

Fuel Pump Module for 2016-2023 Toyota Tacoma - Delphi FG2130

Delphi FG2130 fuel pump module for the 2016-2023 Toyota Tacoma V6 3.5L sends fuel from the tank to the engine. This Delphi fuel pump module assembly is validated, tested and matched to its application.

• Float arm included with the module
• Empty float height and float retention set for a correct gas gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Design and durability aimed at lower failure rates

Quick facts

• Part: Delphi FG2130 fuel pump module
• Also called: fuel pump assembly
• Fits: 2016-2023 Toyota Tacoma V6 3.5L
• Condition: New

Hard starting, sputtering under load or an unreliable fuel gauge can mean the fuel pump module is worn, though a clogged fuel filter or a faulty fuel pump relay can be behind the same signs, so find the cause before replacing it.

Fits

This module fits the 2016-2023 Toyota Tacoma V6 3.5L and is built to Delphi's OE standards.

Specifications

• Quantity per vehicle: 1
• Float arm: included
• Condition: New
• Country of origin: Thailand

In the box

One fuel pump module with its float arm and an instruction sheet. This listing is one module, and the 2016-2023 Toyota Tacoma V6 3.5L takes one.

Installation notes

• Check and clean the fuel tank before installing the module.
• The instruction sheet in the box covers the installation steps.

Interchange: 23070-31030 · 23220-0P240 · 77020-04090 · 83320-04040
DFG2130 · SP9181M
