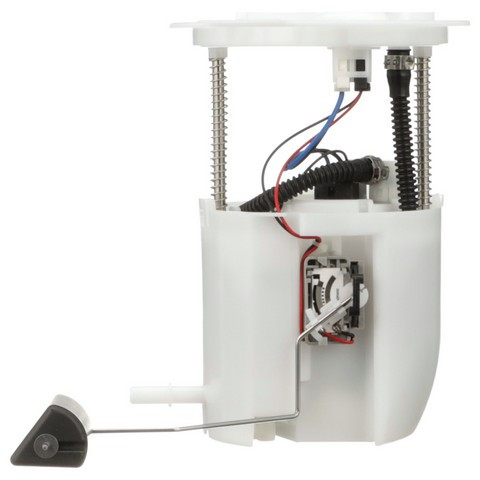

Delphi FG2619 fuel pump module for the 2007-2010 Mazda CX-9 delivers fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG2619 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2010 Mazda CX-9
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can point to a worn module. A blown fuse, a faulty fuel pump relay or debris in the tank can cause similar signs, so find the cause before you buy. The 2007-2010 Mazda CX-9 takes one module, located in the fuel tank.
Fits
It fits the 2007-2010 Mazda CX-9, and its empty float height and float retention match OE specifications.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Fuel level sensor: included
In the box
One fuel pump module with fuel level sensor, one tank seal and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing.
- The instruction sheet in the box covers the steps.
Interchange: CY03-13-35X · CY03-13-35XA
E2518 · DFG2619 · P77238M · A46750 · SP1381 · SP4177M
This part cross-references / interchanges with the following part numbers:
E2518, DFG2619, P77238M, A46750, CY03-13-35X, CY03-13-35XA, SP1381, SP4177M
Frequently Asked Questions
Is the Delphi fuel pump module right for the 2007-2010 Mazda CX-9?
Yes. Delphi FG2619 fits the 2007-2010 Mazda CX-9, which takes one module.
Does the Delphi fuel module come with a fuel level sensor and tank seal?
Yes. Delphi FG2619 comes with its fuel level sensor, a tank seal and an instruction sheet.
Does the Delphi module match the original float height?
Yes. Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Does this fuel pump module draw less current from the electrical system?
Yes. It is built for lower amperage draw, which puts less load on the vehicle's electrical system.
Do I need to clean the tank when installing this fuel pump module?
Yes. Check and clean the fuel tank before the new module goes in; the instruction sheet in the box covers the steps.
