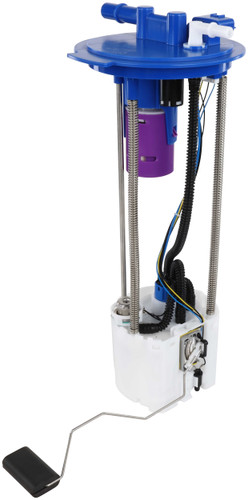

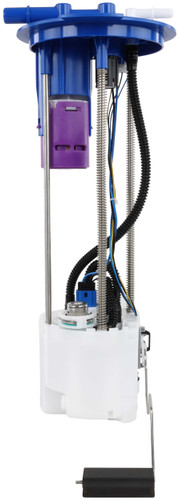

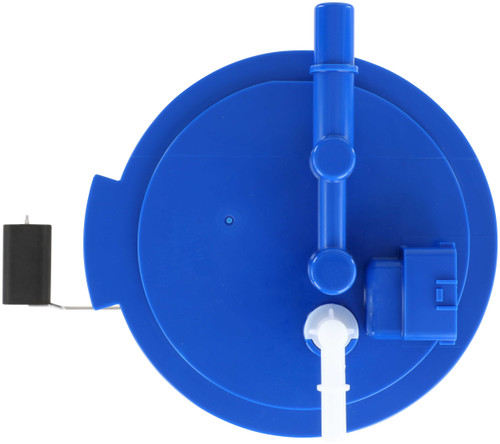

Fuel Pump Module for 2016-2024 Nissan Titan XD & More - Delphi FG2759

Delphi FG2759 fuel pump module for the 2016-2024 Nissan Titan XD V8 5.6L and other vehicles moves fuel from the tank toward the engine. Also called a fuel pump assembly, it includes the float that reports tank level to the gas gauge.

• Empty float height and float retention are set for a correct gas gauge reading
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated, tested and matched to the right vehicle application
• Design and durability for lower failure rates

Quick facts

• Part: Delphi FG2759 fuel pump module
• Also called: fuel pump assembly
• Fits: 2016-2024 Nissan Titan XD V8 5.6L and other vehicles
• Condition: New

Hard starting, sputtering or a gas gauge that reads wrong can mean the module is wearing out, though other things can cause them. A blown fuse or a bad relay can also stop the pump, so look at those with the engine off first; a shop can test fuel pressure.

Fits

This Delphi fuel pump module is a direct-fit replacement for the 2016-2024 Nissan Titan XD V8 5.6L and the 2017-2024 Nissan Titan V8 5.6L, and each takes one. Delphi builds all of its fuel pumps to its OE standards.

Specifications

• Quantity per vehicle: 1
• Engine: V8 5.6L
• Condition: New
• Country of origin: Thailand

Installation notes

• Check and clean the fuel tank before installing the module.

Interchange: 17040-EZ30A · 17040-EZ31A
