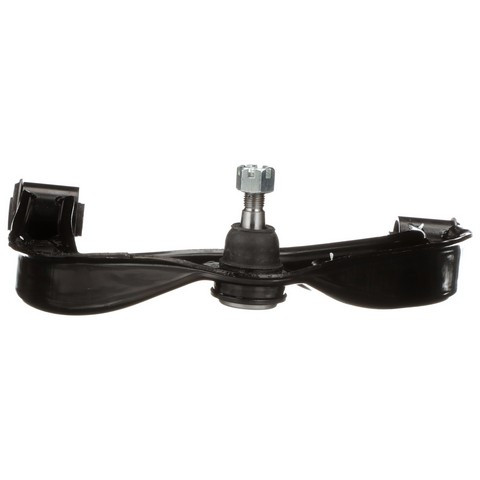

Restore precise front suspension geometry and quiet, controlled steering with the Delphi Suspension Control Arm and Ball Joint Assembly TC5320, cataloged for the front right upper position. It installs as a direct-fit replacement on the 2004-2010 Infiniti QX56, 2005-2015 Nissan Armada, 2004 Nissan Pathfinder Armada, and the Nissan Titan across 2004-2015 and 2017-2024 — see the Buyer's Guide tab for the full engine-level list. This assembly combines the control arm with its integrated ball joint to help support and locate the wheel while allowing steering and suspension travel.
- OE-derived testing: validated against temperatures below -40°C and above 120°C and 720 hours of salt spray, with dimensional and material analysis for close OE-to-aftermarket compatibility.
- Verified materials: control arms undergo 100% crack detection and ultrasonic flaw detection so the material matches OE specifications.
- Precision ball stud: ball studs machined to micron tolerances for durability and smooth joint operation.
- Robot-welded & protected: robotic welding for consistent quality, with anti-corrosion protection applied to each part for corrosion prevention and enhanced appearance.
Worn control-arm bushings or a failing ball joint can show up as clunking on acceleration or over the road, loose or wandering steering, uneven tire wear, and vibration. If the original upper arm or ball joint is the cause, this assembly replaces both in one unit.
Interchange: 101-6455 · 623.42084 · 54524-ZR00A · 521-180 · 54524-7S000
1016455 · 62342084 · 54524ZR00A · 521180 · 545247S000 · 54524ZR00B · CB69148 · CK620649 · RK620649 · CMS30115 · GS30115 · JTC2630 · JTC2635
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What position does this control arm fit?
It is cataloged for the front right (passenger-side) upper position, supplying the control arm with its integrated ball joint as a single assembly.
Which vehicles does the TC5320 fit?
It fits the 2004-2010 Infiniti QX56, 2005-2015 Nissan Armada, 2004 Nissan Pathfinder Armada, and the Nissan Titan for 2004-2015 and 2017-2024. Check the Buyer's Guide tab for engine details.
What are signs my control arm or ball joint may need replacing?
Common signs include clunking on acceleration or over bumps, loose or wandering steering, uneven tire wear, and vibration. Have the cause diagnosed before replacing.
Does the ball joint come with the control arm?
Yes. The ball joint is integrated into this assembly, so you replace the control arm and ball joint together as one unit.
How is this Delphi part built for durability?
It is tested below -40°C and above 120°C plus 720 hours of salt spray, uses 100% crack and ultrasonic flaw detection, micron-tolerance ball studs, robotic welding, and anti-corrosion protection.
