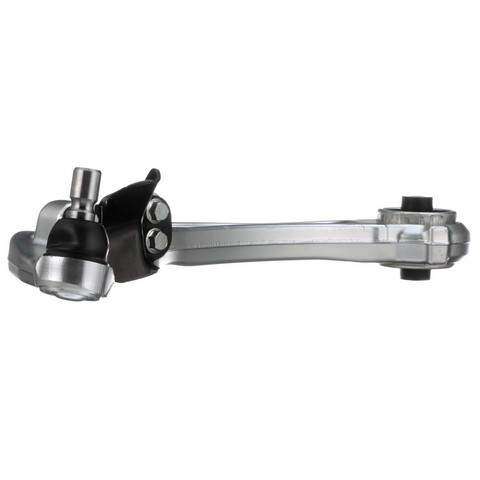

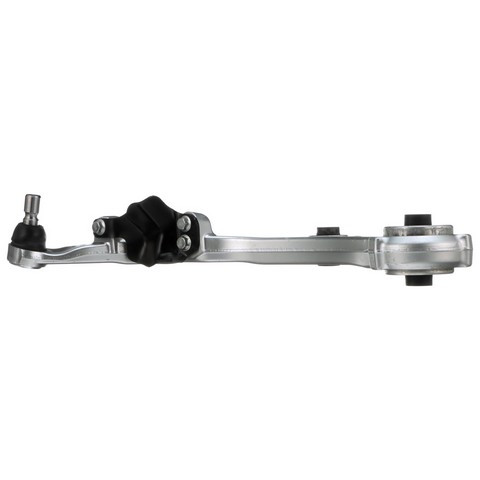

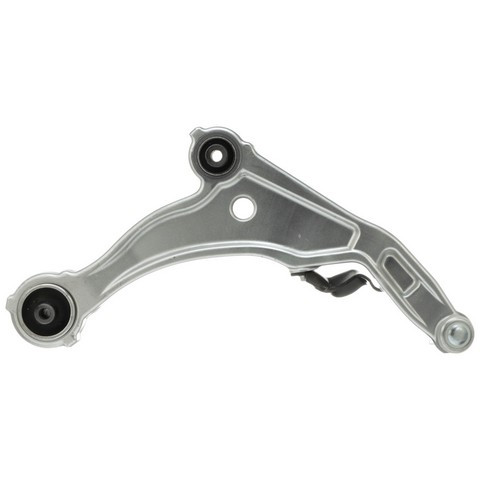

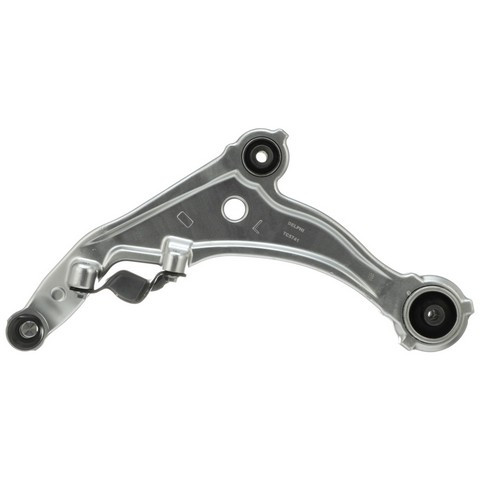

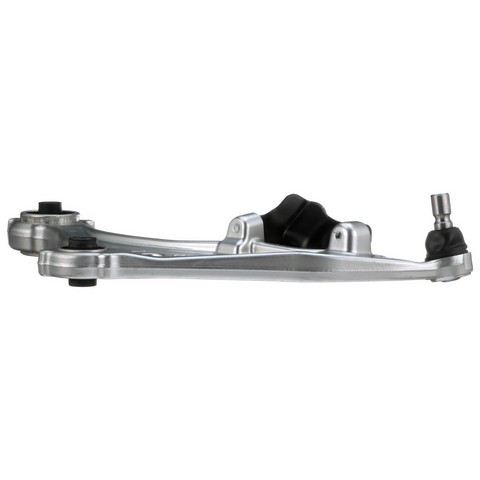

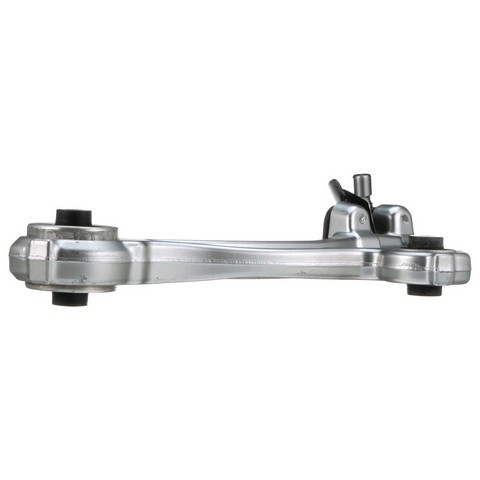

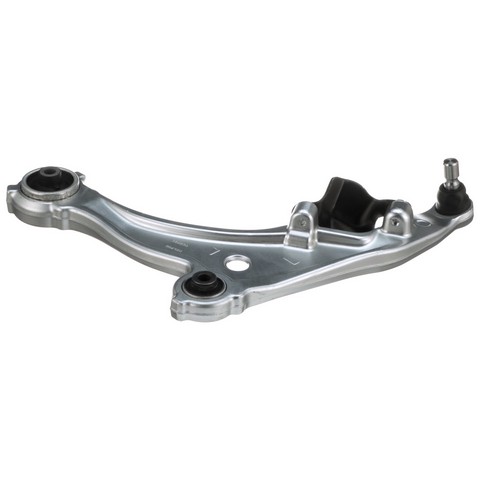

Delphi TC5741 front left lower control arm with ball joint for the 2009-2014 Nissan Maxima connects the front left wheel to the frame. Sold as a control arm and ball joint assembly, this Delphi control arm pivots on its ball joint as the suspension moves.
- Withstands temperatures below -40 degrees C and above 120 degrees C, plus 720 hours of salt spray exposure
- 100% crack detection and ultrasonic flaw detection on every control arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot welding for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC5741 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2009-2014 Nissan Maxima
- Position: Front left lower
A clunk over bumps or uneven front tire wear can mean a worn arm or ball joint. Before you replace the 2009-2014 Nissan Maxima control arm, rule out worn tie rods, sway bar links, struts and wheel bearings, which can make similar noises. Front arms are normally replaced as a pair, with one on each side of the axle; this listing is the front left only, and the front right is sold separately.
Fits
This suspension control arm fits the front left lower position on the 2009-2014 Nissan Maxima.
Specifications
Fit and size
- Position: Front left lower
- Quantity: 1 arm per listing
Build and materials
- Construction: control arm with ball joint assembly
- Welding: robot welded
- Ball studs: machined to micron tolerances
- Corrosion protection: anti-corrosion protection on each part
Interchange: 102-7468 · 54501-9N00A · 54501-9N00B · 521-723
CB69103 · CB69103PR · RK622059 · CMS301004
This part cross-references / interchanges with the following part numbers:
102-7468, 54501-9N00A, 54501-9N00B, 521-723, CB69103, CB69103PR, RK622059, CMS301004
Frequently Asked Questions
Is this the lower control arm for a 2011 Nissan Maxima?
Yes. Delphi TC5741 is the front left lower control arm with ball joint for the 2009-2014 Nissan Maxima, and 2011 falls inside that range.
Is this lower control arm for the 2009-2014 Nissan Maxima a left or right side part?
It is the front left. The Delphi TC5741 covers that side only, and the front right takes its own control arm, so each side is ordered separately.
How are the ball studs made on the Delphi TC5741 control arm?
Micron-tolerance machining on the ball studs is what gives this Delphi joint its durability and smooth operation.
Does this front left lower control arm have rust protection?
Yes. Anti-corrosion protection is applied to each part, and Delphi parts are exposed to 720 hours of salt spray.
Is 54501-9N00A an interchange number for the Delphi TC5741?
Yes. 54501-9N00A is listed as an interchange for the Delphi TC5741 control arm with ball joint.
