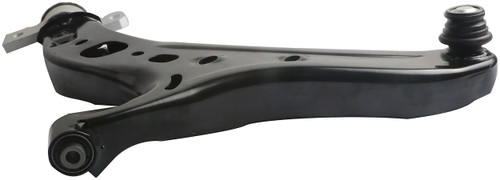

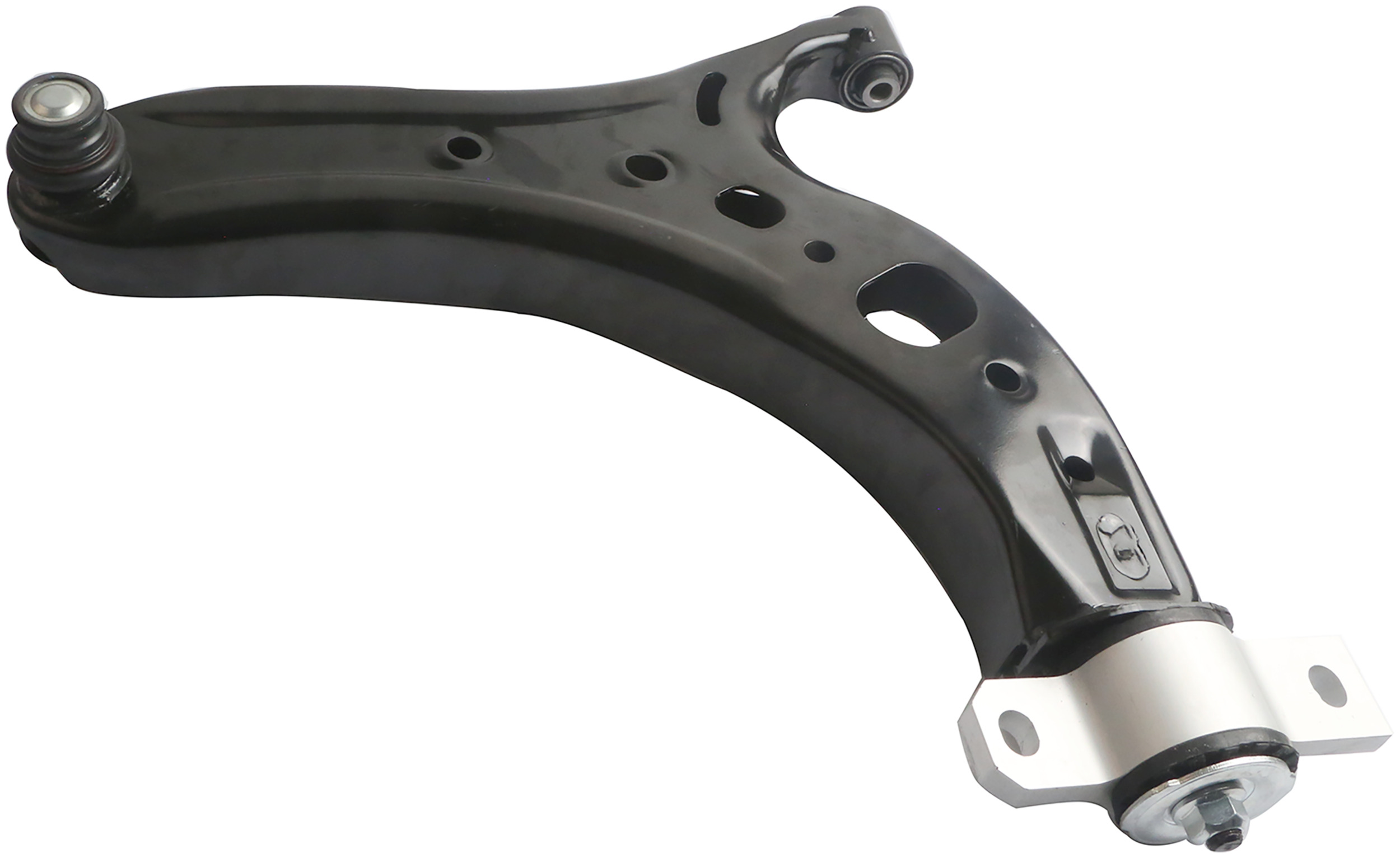

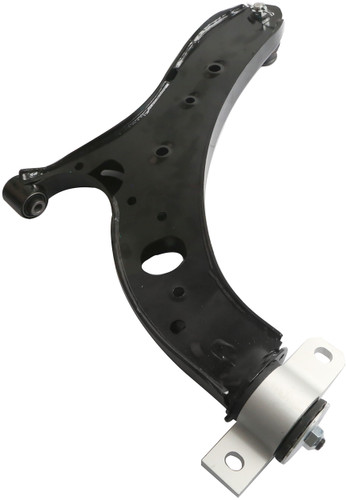

Delphi TC9514 front left lower control arm with ball joint for the 2019-2025 Subaru Ascent links the front left wheel to the vehicle and pivots as the suspension moves. This Delphi control arm and ball joint assembly includes the ball joint, so the arm and the joint are replaced together.
- Tested at temperatures below -40 degrees C and over 120 degrees C, plus 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on the control arms
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot welding for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC9514 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2019-2025 Subaru Ascent
- Position: Front Left Lower
- Condition: New
A clunk over bumps, uneven tire wear or a car that pulls to one side can mean the arm or its ball joint is worn. Worn tie rod ends, sway bar links, struts or tires can be behind these signs too, so find the cause before buying. This listing is one arm for the front left; the front right is a separate part, and both are normally replaced together.
Fits
It is a direct-fit replacement for the 2019-2025 Subaru Ascent, which takes one in this front left lower position.
Specifications
Fit and size
- Position: front left lower
- Quantity: 1 for the front left position
Build and materials
- Type: control arm with ball joint
- Condition: new
- Country of origin: Turkey
Interchange: 520-019
CMS801236 · 20202XC01A
This part cross-references / interchanges with the following part numbers:
520-019, CMS801236, 20202XC01A
Frequently Asked Questions
Does the Delphi TC9514 fit the 2019-2025 Subaru Ascent on the left front?
Yes. Delphi TC9514 is a front left lower control arm with ball joint for the 2019-2025 Subaru Ascent, which takes one in this position. The front right is a separate part.
What are the ball studs on this control arm machined to?
The ball studs are machined to micron tolerances for durability and smooth joint operation. Anti-corrosion protection is also applied to each part.
What temperature and salt spray testing does this control arm go through?
Delphi TC9514 withstands temperatures below -40 degrees C and over 120 degrees C and is exposed to 720 hours of salt spray. Each control arm also gets 100% crack detection and ultrasonic flaw detection.
How can I tell if the front left control arm or ball joint is worn?
A clunk over bumps, uneven tire wear or the car pulling to one side can mean wear in the arm or its ball joint. A shop can inspect the arm and test the joint for play.
Does the Delphi TC9514 interchange with 520-019?
Yes. 520-019 is one of the cross-reference numbers for Delphi TC9514, a front left lower control arm with ball joint.
