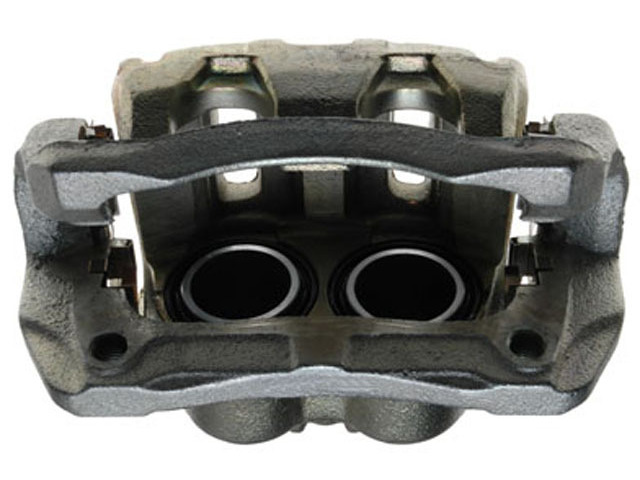

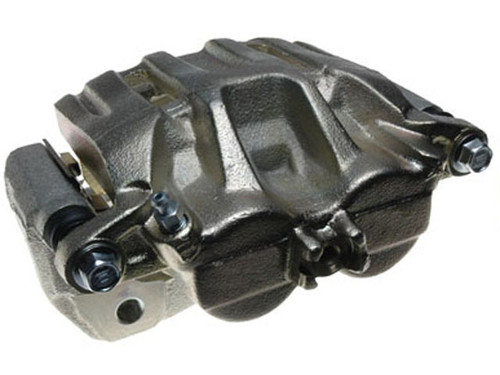

Raybestos FRC11711 front left brake caliper for the 2007-2016 Honda CR-V and other vehicles squeezes the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper is a semi-loaded caliper and bracket assembly.
- Raybestos R-Line caliper, non-plated and remanufactured with all new rubber and sealing components
- Castings, guide pins and brackets are inspected before they are reused
- Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials for leak-free operation
- Every caliper is 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
- Silicone boots for heavy duty applications, where applicable
Quick facts
- Part: Raybestos FRC11711 brake caliper
- Also called: disc brake caliper
- Fits: 2007-2016 Honda CR-V and other vehicles
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
A worn or failing front caliper can show up as the vehicle pulling to one side, a brake that drags or fluid around the wheel. Before you replace this caliper, rule out a worn pad or a damaged brake hose at that wheel, since either one can also pull a car to one side.
Fits
The 2007-2016 Honda CR-V, the 2012-2015 Honda Crosstour and the 2005-2010 Honda Odyssey are all covered by this brake caliper, and so are other vehicles. Its materials match OE specifications. If your car is not named here, look it up in the "Vehicles it fits" section to see whether it is covered. This listing is one caliper for the front left of the 2007-2016 Honda CR-V; the front right is a separate part, and the pair on that axle is normally replaced at the same time.
Specifications
Fit and size
- Position: Front left
- Quantity for this position: 1
- Caliper piston diameter: 45.3 mm (1.783 in)
- Bleeder screw thread: M10x1.25
- Bracket mounting hole size: 14.000 mm, thread pitch 1.500 mm
Build and materials
- Caliper type: Floating
- Construction: Semi-loaded caliper and bracket assembly
- Casting material: Cast iron
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured front left caliper and bracket assembly.
Interchange: 99-00949A · 19-B2958 · 19-P2958 · 141.40098 · 141.40116 · 142.40098 · 14-5182
SC3837 · SC3895 · 45019SHJA01 · 45019SHJA10
This part cross-references / interchanges with the following part numbers:
99-00949A, 19-B2958, 19-P2958, 141.40098, 141.40116, 142.40098, SC3837, SC3895, 45019SHJA01, 45019SHJA10, 14-5182
Frequently Asked Questions
Can I use this Honda CR-V caliper on the front left of a 2007-2016 Honda CR-V?
Yes. Raybestos FRC11711 is the front left caliper for the 2007-2016 Honda CR-V. For other years or models, look your car up in the "Vehicles it fits" section.
Do Raybestos calipers like this one come with the bracket?
Yes. FRC11711 is sold as a semi-loaded caliper and bracket assembly, so the bracket is part of the unit.
Is this Raybestos remanufactured caliper rebuilt with new seals?
Yes. New seals, boots, bleeder screws, banjo bolts, abutment hardware and O-rings go into the rebuild, and the finished unit is 100% pressure tested.
What can a sticking front left brake caliper look like?
A sticking caliper can wear one pad faster than the other or make the brake drag, and a leaking one leaves fluid near the wheel. Have any of these looked at promptly.
Does FRC11711 cross to part number 45019SHJA01?
Yes. 45019SHJA01 is one of the interchange numbers listed for Raybestos FRC11711.
