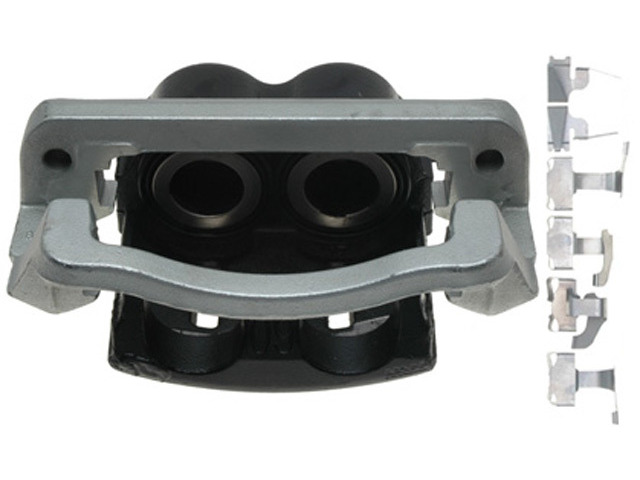

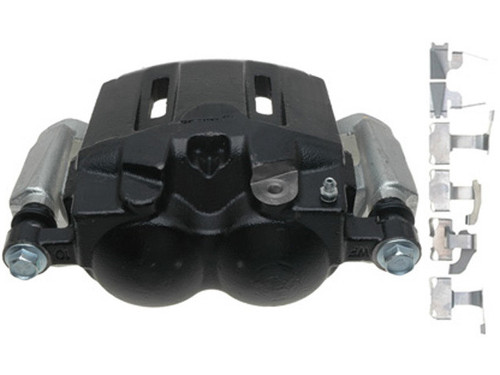

Raybestos Brakes FRC11904 front left brake caliper for the 2005-2013 Ford F-250 Super Duty and other vehicles clamps the brake pads against the rotor to slow the wheel. This remanufactured disc brake caliper comes as a semi-loaded assembly with its bracket.
- Raybestos R-Line non-plated remanufactured caliper with all new seals, boots and bleeders
- Castings, guide pins and brackets are inspected before they are reused
- Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials
- Each caliper is 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
- Silicone boots for heavy duty applications, where applicable
Quick facts
- Part: Raybestos Brakes FRC11904 brake caliper
- Also called: disc brake caliper
- Fits: 2005-2013 Ford F-250 Super Duty and other vehicles
- Position: Front left
- Material: Cast iron
- Condition: Remanufactured
A sticking or leaking caliper can show up as a pull to one side, uneven pad wear or brake fluid at the wheel. Before you replace the caliper, rule out worn pads, a swollen brake hose and stuck slide pins, since each of them can produce similar symptoms.
Fits
This caliper fits the 2005-2013 Ford F-250 Super Duty and the 2005-2012 Ford F-350 Super Duty, with one caliper at the front left of each truck. This listing is one caliper; the front right is a separate part, and the two on that axle are normally replaced together.
Specifications
Fit and size
- Position: Front left
- Quantity per application: 1
- Caliper type: Floating
- Caliper piston diameter: 59.9 mm (2.358 in)
- Bleeder screw thread: 3/8-24
- Bracket mounting hole: 16 mm, thread pitch 2 mm
Build and materials
- Construction: Semi-loaded caliper and bracket assembly
- Caliper casting material: Cast iron
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One remanufactured caliper with its bracket.
Interchange: 18-B5023 · 15-13308 · 99-17936B · 18-P5023 · 141.65074 · 142.65074 · 14-3308
SC1389 · AC3Z2B121A · CRB140121
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
18-B5023, 15-13308, 99-17936B, 18-P5023, 141.65074, 142.65074, SC1389, AC3Z2B121A, 14-3308, CRB140121
Frequently Asked Questions
Is this the right brake caliper for the 2005-2013 Ford F-250 Super Duty?
Yes. Raybestos Brakes FRC11904 is the front left caliper for the 2005-2013 Ford F-250 Super Duty; the front right is a separate part.
Is there a brake caliper for the 2005-2012 Ford F-350 Super Duty in this listing?
Yes. This front left caliper fits the 2005-2012 Ford F-350 Super Duty, with one caliper at the front left position.
What piston diameter does this floating caliper have?
The piston measures 59.9 mm (2.358 in). The bleeder screw thread is 3/8-24.
What gets replaced when a Raybestos R-Line caliper is remanufactured?
On Raybestos Brakes FRC11904, seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials. Castings, guide pins and brackets are inspected before reuse.
Does this caliper replace part number 18-B5023?
Yes. 18-B5023 is one of the numbers this caliper replaces, and the Interchange line lists the others.
