Remanufactured Rear Left Brake Caliper for 2006-2008 Dodge Ram 1500 & More - Raybestos FRC11690

$162.99

Vehicles this part fits

    Part number: FRC11690
    UPC: 829352402115
    Condition: Refurbished
    Weight: 21.50 LBS
    Item Package Quantity: 1
    $162.99
    Adding to cart… The item has been added

    Have questions?

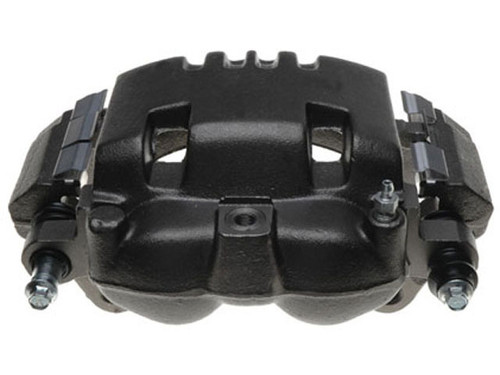

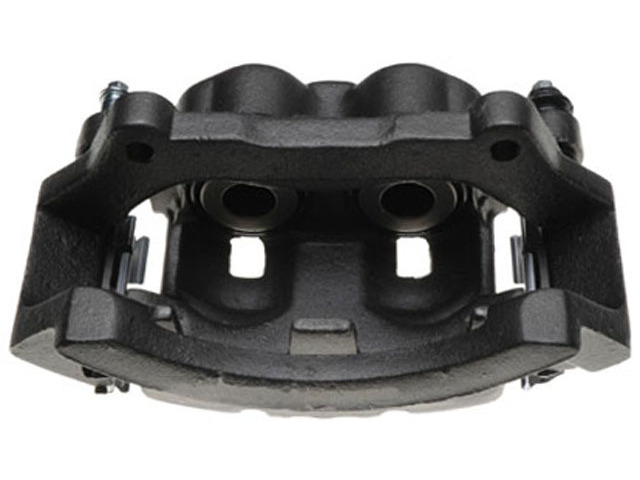

    Raybestos Brakes Disc Brake Caliper P/N:FRC11690
    Raybestos Brakes Disc Brake Caliper P/N:FRC11690
    $162.99
    $162.99

    Raybestos Brakes FRC11690 rear left brake caliper for the 2006-2008 Dodge Ram 1500 and other vehicles clamps the brake pads against the rotor to slow the wheel. It is a remanufactured, semi-loaded caliper and bracket assembly.

    • Raybestos R-Line non-plated caliper, rebuilt with all new rubber and sealing components
    • Abutment hardware, banjo bolts and bleeder screws are replaced along with seals, boots and O-rings for leak-free operation
    • Castings, guide pins and brackets are inspected before they are reused
    • 100% pressure tested, and each caliper is also tested for reliable braking performance
    • EPDM70 rubber components for heat resistance and durability

    Quick facts

    • Part: Raybestos Brakes FRC11690 brake caliper
    • Also called: disc brake caliper
    • Fits: 2006-2008 Dodge Ram 1500 and other vehicles
    • Position: Rear left
    • Material: Cast iron
    • Condition: Remanufactured

    A disc brake caliper that sticks or leaks can show up as the vehicle pulling to one side, pads that wear unevenly or brake fluid near the wheel. These signs alone do not prove the caliper is at fault, since a worn rear brake hose is another common source.

    Fits

    It is listed for a wide range of Dodge Ram models, among them the 2003-2008 Dodge Ram 2500 and the 2003-2008 Dodge Ram 3500. If your vehicle is not named here, look up its year and model in the "Vehicles it fits" section. This listing is one rear left caliper, and the rear right on that axle is normally done at the same time.

    Specifications

    Fit and size

    • Position: Rear left
    • Quantity per vehicle: 1 for this side
    • Caliper type: Floating
    • Piston diameter: 45 mm (1.772 in)
    • Bracket mounting hole size: 14 mm, thread pitch 2 mm
    • Bleeder screw thread: M10x1

    Build and materials

    • Construction: Semi-loaded caliper and bracket assembly
    • Casting material: Cast iron
    • Condition: Remanufactured
    • Country of origin: Mexico

    In the box

    One rear left remanufactured caliper and bracket assembly. The rear left position takes one, and the rear right is a separate part ordered on its own.

    Interchange: 18-B4895 · 15-11254 · 99-17700B · 18-B4965 · 141.67512 · 142.67512 · 14-1254
    SC2013M

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18-B4895, 15-11254, 99-17700B, 18-B4965, 141.67512, 142.67512, SC2013M, 14-1254

    Frequently Asked Questions

    Is FRC11690 the rear left brake caliper for a 2006-2008 Dodge Ram 1500?

    Yes. Raybestos Brakes FRC11690 is listed for the rear left position of the 2006-2008 Dodge Ram 1500. The rear right side is a separate part.

    Does the 2003-2008 Dodge Ram 2500 take this brake caliper on the rear left?

    Yes. This rear left caliper is listed for the 2003-2008 Dodge Ram 2500. It covers the left side only, so the right side is ordered separately.

    What piston size and bleeder screw thread does this rear left caliper have?

    The piston diameter is 45 mm (1.772 in) and the bleeder screw thread is M10x1. It is a floating-type caliper with a cast iron casting.

    How can I tell if a rear caliper is sticking?

    A sticking caliper can show up as the vehicle pulling to one side or the pads wearing unevenly from side to side. A brake shop can confirm whether the caliper is the cause.

    Does this rear left caliper come with its bracket?

    Yes. Raybestos Brakes FRC11690 is a semi-loaded caliper and bracket assembly, remanufactured as a single rear left unit.
