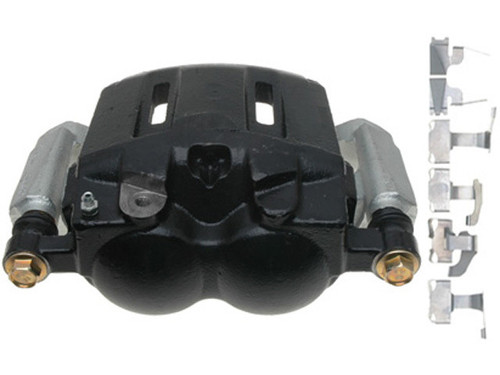

Raybestos FRC11903 front right brake caliper for the 2005-2013 Ford F-250 Super Duty and other vehicles squeezes the pads against the rotor to slow the wheel. It is a Raybestos remanufactured caliper supplied as a semi-loaded caliper and bracket assembly.
- Raybestos R-Line non-plated caliper with all new rubber and sealing components, including seals, boots and bleeders
- Castings, guide pins and brackets are inspected before being reused
- Banjo bolts, abutment hardware and O-rings are replaced with new parts for leak-free operation
- Silicone boots for heavy duty applications, where applicable
- 100% pressure tested
- EPDM70 rubber components for heat resistance and durability
Quick facts
- Part: Raybestos FRC11903 brake caliper
- Also called: disc brake caliper
- Fits: 2005-2013 Ford F-250 Super Duty and other vehicles
- Position: Front right
- Material: Cast iron
- Condition: Remanufactured
Before you replace this caliper, rule out worn pads, a collapsed brake hose and a seized guide pin, which can cause similar pulling or drag. A caliper that leaks or sticks can show up as pulling to one side, a burning smell or uneven pad wear. This listing is one caliper for the front right; the front left is a separate part, and both are normally replaced together, one on each side of the axle.
Fits
It is a direct-fit replacement brake caliper for the 2005-2013 Ford F-250 Super Duty and the 2005-2012 Ford F-350 Super Duty.
Specifications
Fit and size
- Position: Front right
- Quantity per application: 1
- Piston diameter: 59.9 mm (2.358 in)
- Bleeder screw thread: 3/8-24
- Bracket mounting hole: 16 mm, thread pitch 2 mm
Build and materials
- Caliper type: Floating
- Construction: Semi-loaded caliper and bracket assembly
- Casting material: Cast iron
- Finish: Non-plated
- Condition: Remanufactured
- Country of origin: Mexico
In the box
One front right caliper and bracket assembly.
Interchange: 18-B5022 · 15-13309 · 99-17936A · 18-P5022 · 141.65073 · 142.65073 · 14-3309
SC1390 · AC3Z2B120A · CRB140120
This part cross-references / interchanges with the following part numbers:
18-B5022, 15-13309, 99-17936A, 18-P5022, 141.65073, 142.65073, SC1390, AC3Z2B120A, 14-3309, CRB140120
Frequently Asked Questions
Is this Raybestos FRC11903 caliper right for the 2005-2013 Ford F-250 Super Duty?
Yes. Raybestos FRC11903 is the front right caliper for the 2005-2013 Ford F-250 Super Duty, and it also fits the 2005-2012 Ford F-350 Super Duty.
Does this front right disc brake caliper come with the bracket?
Yes. It is sold as a semi-loaded caliper and bracket assembly, and the listing is one front right unit.
What size is the piston on this front right caliper?
The Raybestos FRC11903 has a 59.9 mm (2.358 in) piston and a floating design. Its bleeder screw thread is 3/8-24.
Are Raybestos calipers in the R-Line rebuilt with new seals and boots?
Yes. This non-plated R-Line caliper is remanufactured with all new rubber and sealing components, and each unit is 100% pressure tested.
How can I spot a sticking front right caliper?
Pulling to one side, a burning smell after driving or one pad wearing thinner than the other can go with a dragging caliper. A shop can test it.
