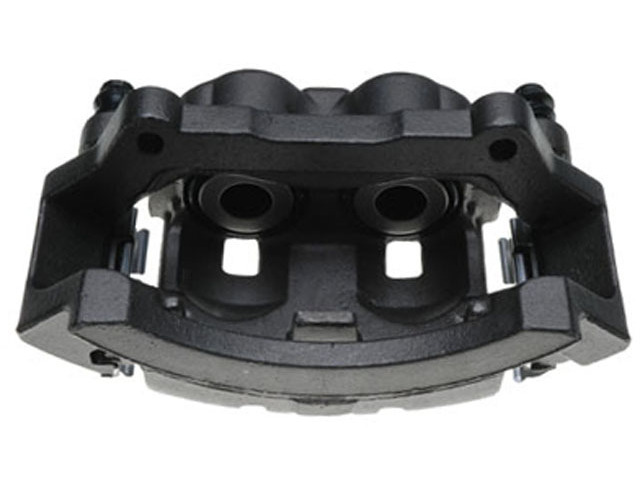

Raybestos Brakes Disc Brake Caliper P/N:FRC12596
Raybestos Brakes FRC11689 rear right brake caliper for the 2006-2008 Dodge Ram 1500 and other vehicles presses the brake pads against the rotor to slow the wheel. This remanufactured semi-loaded disc brake caliper and bracket assembly has materials matching OE specifications.
A sticking or leaking caliper can show up as pulling to one side, uneven pad wear from side to side or fluid around the piston boot. These signs have other possible sources, so look first, with the engine off and cool, for wetness at the boot and bleeder; replace the caliper if it is the cause.
This caliper fits the 2006-2008 Dodge Ram 1500, the 2003-2008 Dodge Ram 2500 and the 2003-2008 Dodge Ram 3500, along with other vehicles; open the "Vehicles it fits" section to check your exact model and engine. This listing is one caliper for the rear right; the rear left is a separate part and is normally replaced at the same time.
Fit and size
Build and materials
One rear right caliper and bracket assembly. The rear right takes one.
Interchange: 18-B4894 · 99-17700A · 18-B4964 · 141.67511 · 142.67511 · 14-1255
SC2014M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is this a Ram 1500 brake caliper for the 2006-2008 model years?
Yes. Raybestos Brakes FRC11689 is the rear right caliper for the 2006-2008 Dodge Ram 1500, whatever the engine. The "Vehicles it fits" section covers the other vehicles it fits.
Does this work as a Ram 2500 brake caliper for the 2003-2008 model years?
Yes. This same rear right caliper fits the 2003-2008 Dodge Ram 2500 with any engine.
What size is the piston in the Raybestos Brakes FRC11689 caliper?
The piston is 45 mm (1.772 in) across, in a floating-type caliper. The bleeder screw thread is M10x1.
Which parts are new in this remanufactured rear right caliper?
The rubber and sealing parts are all new: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings. Castings, guide pins and brackets are inspected before reuse.
Does Raybestos Brakes FRC11689 interchange with 14-1255?
Yes. 14-1255 is one of the numbers this Raybestos Brakes FRC11689 caliper replaces; the Interchange line lists the others, including 18-B4894 and SC2014M.
