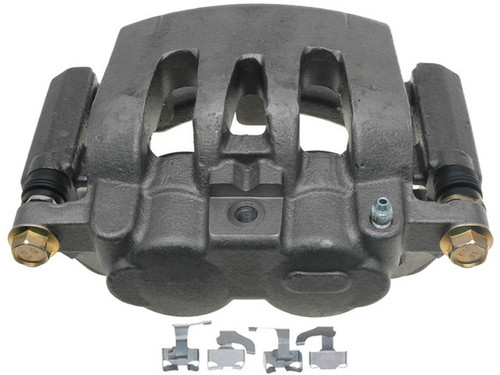

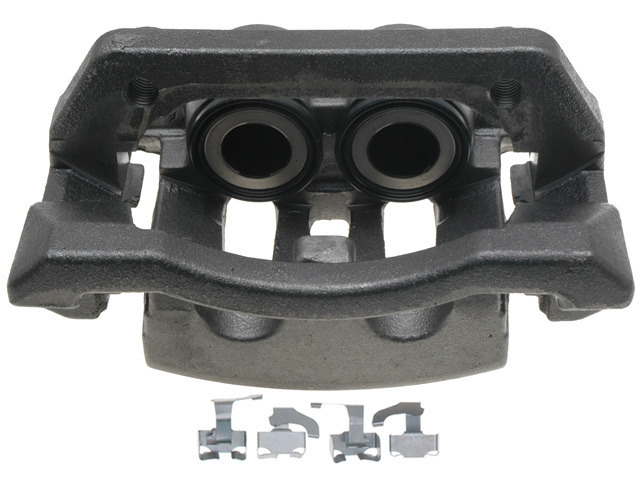

Replace a leaking or sticking rear left caliper with the Raybestos R-Line FRC11964, a remanufactured Ford F-250 Super Duty brake caliper and bracket assembly that also fits the Ford F-350 Super Duty. It is a direct-fit replacement for the 2007-2013 Ford F-250 Super Duty and the 2008-2013 Ford F-350 Super Duty, all engines.
This semi-loaded disc brake caliper comes with its mounting bracket as one assembly. Raybestos non-plated R-Line calipers are remanufactured OE parts rebuilt with all-new rubber and sealing components. The castings, guide pins and brackets are carefully inspected before they are reused. Materials match OE specifications and vehicle-specific designs.
- New sealing and wear parts: seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings are replaced with new materials to help prevent leaks.
- EPDM70 rubber components: selected for heat resistance, performance and durability.
- 100% pressure tested: every caliper is pressure tested.
- Specifications: floating caliper design, cast iron casting, 1.89 in (48 mm) piston diameter, 3/8-24 bleeder screw thread, 16 mm bracket mounting hole size with a 2.0 mm thread pitch.
The listed applications use one caliper at the rear left position. This caliper is sold individually, and we recommend replacing the rear right caliper at the same time for even, balanced braking. A caliper may need replacing if you see brake fluid seeping at the caliper, the truck pulls to one side, a brake drags, or the pads wear unevenly. Country of origin: Mexico.
Interchange: 18-B5077 · 15-13378 · 99-17958B · 18-P5077 · 141.65532 · 14-3378
18B5077 · 1513378 · 9917958B · 18P5077 · 14165532 · 143378 · SC3321 · AC3Z2553A · NBRC14RM
This part cross-references / interchanges with the following part numbers:
18-B5077, 15-13378, 99-17958B, 18-P5077, 141.65532, SC3321, AC3Z2553A, NBRC14RM, 14-3378
