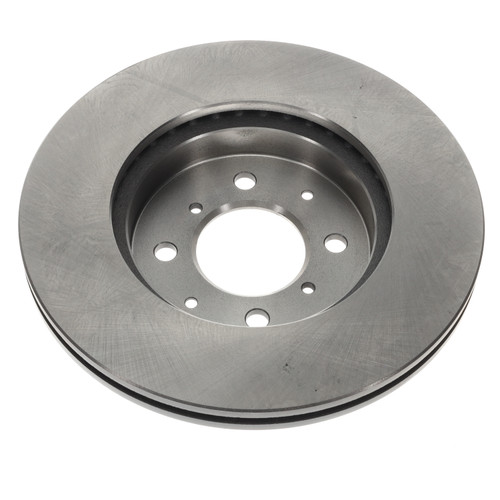

Help keep every stop smooth and steady with the ADVICS C6F101U front brake rotor, an OE-replacement vented rotor constructed to OEM weight, vane count and air gap. It fits many vehicles, among them the 1990-2005 Honda Civic, 2006-2014 Honda Fit and 2010-2014 Honda Insight; see the "Vehicles it fits" section for the full list of Honda and Acura applications.
If the brake disc on your 1990-2005 Honda Civic is scored, worn or down to its discard thickness, this ADVICS rotor installs as a direct-fit replacement for the listed applications.
- High-carbon metallurgy: Made with high-carbon metallurgy to help maintain thermal stability, reducing opportunities for warping while supporting longer pad and rotor life.
- Vented construction: Lets air flow freely and efficiently.
- OEM weight, vane count and air gap: Weight, vane count and air gap are held to OEM values.
- Corrosion protection: A corrosion protection coating is applied to match OEMs.
Specifications: Outside diameter 261.5 mm (10.295 in); nominal thickness 21.0 mm (0.827 in); discard thickness 19.0 mm (0.748 in); overall height 44.7 mm (1.76 in); center hole 64.2 mm; bolt circle 100.0 mm (3.937 in); 4 lug holes; smooth surface with a non-directional brake surface finish. ABS tone ring not included.
Sold individually. The listed applications use two front rotors, so replacing both sides together as a matched pair is recommended for even, balanced braking. Country of origin: China.
Frequently Asked Questions
Are these front 1990-2005 Honda Civic rotors?
Yes. The C6F101U is cataloged as a front rotor for the 1990-2005 Honda Civic, and it also fits the 2006-2014 Honda Fit and 2010-2014 Honda Insight. Check the "Vehicles it fits" section for your exact vehicle.
What are the rotor's key dimensions?
It measures 261.5 mm (10.295 in) in outside diameter with a 21.0 mm (0.827 in) nominal thickness, a 64.2 mm center hole, a 100.0 mm (3.937 in) bolt circle and 4 lug holes.
What is the discard thickness of this rotor?
The discard thickness is 19.0 mm (0.748 in). A rotor worn to or below that point should be replaced rather than resurfaced.
Is an ABS tone ring included, and how many rotors come in the box?
No ABS tone ring is included. The rotor is sold individually, and replacing both front rotors together is recommended for even, balanced braking.
What are signs a disc brake rotor may need replacing?
Common signs include a pulsating brake pedal, grinding or scraping noises, deep scoring or grooves on the braking surface, and wear down to the discard thickness.
