Rear Brake Rotor for 2010-2018 Mercedes-Benz Sprinter 2500 - HELLA 355123172

Be the first to review this product

$86.99

MPN: 355123172

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

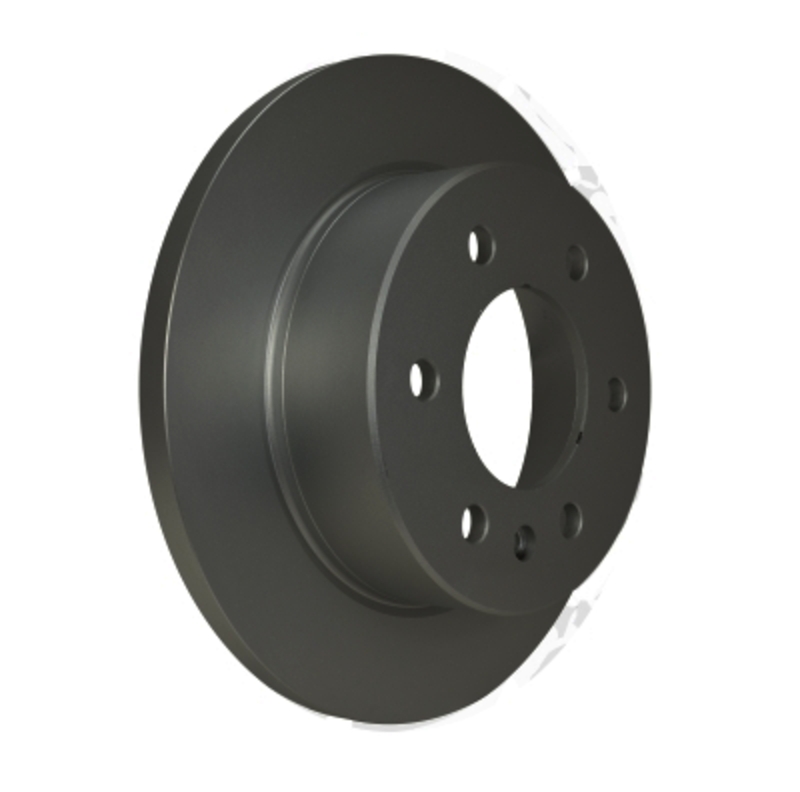

DISC BRAKE ROTOR

$86.99

Description

The HELLA BRAKES 355123172 rear brake rotor for the 2010-2018 Mercedes-Benz Sprinter 2500 is a solid, full-cast disc that gives the rear brakes a smooth friction surface to slow the wheels.

Part of the HELLA Pagid brake disc range, made from gray cast iron to meet OEM standards.
High carbon content improves heat dissipation to support braking performance.
A full zinc coating protects the rotor against rust.
High carbon content and 'soft' casting materials absorb sound, which helps cut noise and vibration and resist deformation.

A pulsing brake pedal, a shake as you slow down or a grinding sound from the back can mean the rear brake rotor is worn. Worn pads, a sticking caliper or a loose wheel bearing can bring on that same noise and shake, so track down what's behind it before you order.

This disc brake rotor is a direct-fit replacement for the 2010-2018 Mercedes-Benz Sprinter 2500, sold one per listing with one needed per vehicle.

Specifications

Fit and size

Position: rear
Quantity per vehicle: 1
Outside diameter: 298 mm (11.73 in)
Center hole diameter: 114.3 mm
Bolt circle: 130 mm (5.12 in), 6 lug holes
Hole arrangement/number: 06/07
Nominal thickness: 16 mm (0.63 in)
Minimum (discard) thickness: 14 mm (0.55 in)
Overall height: 71 mm (2.80 in)

Build and materials

Type: solid, full cast
Material: gray cast iron
Machining: High-Carbon
Finish: coated disc and hat, full zinc coating
Braking surface: smooth, non-directional
Balancing: mill balancing
ABS tone ring: not included
Country of origin: China

In the box

One rear brake rotor and one fixing screw. Not included: wheel hub, wheel studs and bearings. The old wheel studs may not be reusable.

Installation notes

Non-oiled surface: no degreasing needed before installation.
Installation and removal by qualified personnel is required.

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

Frequently Asked Questions

Does the HELLA 355123172 rotor fit the rear of a 2010-2018 Mercedes-Benz Sprinter 2500?

Yes. The HELLA BRAKES 355123172 is a rear brake rotor that fits the 2010-2018 Mercedes-Benz Sprinter 2500, and one is needed per vehicle.

How thin can this HELLA rear brake rotor wear before it needs replacing?

This rear brake rotor should be replaced once it wears to its 14 mm (0.55 in) minimum thickness. It measures 16 mm (0.63 in) thick when new.

Does this rear rotor come with a fixing screw or wheel studs?

Yes, one fixing screw comes with this rear brake rotor. The wheel hub, wheel studs and bearings are not included.

Is the HELLA 355123172 rotor solid or vented, and what size is it?

The HELLA BRAKES 355123172 is a solid, full-cast gray cast iron rotor, 298 mm (11.73 in) across, with a 130 mm bolt circle, 6 lug holes and a 114.3 mm center hole.

What signs show this zinc-coated rear rotor is wearing out?

A pulsing brake pedal or a grinding noise when stopping can mean this rear brake rotor is worn, as can deep grooves on the braking surface seen during a brake job.
