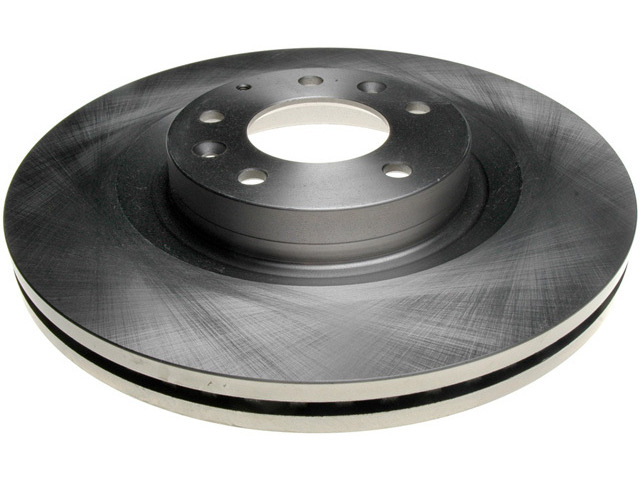

Raybestos Brakes Disc Brake Rotor 980580R

Raybestos Brakes Disc Brake Rotor 980580R - view 2

Raybestos Brakes Disc Brake Rotor 980580R - view 3

Raybestos Brakes Disc Brake Rotor P/N:980580R

Be the first to review this product

$102.99

MPN: 980580R

UPC: 829352610299

Item Package Quantity: 1

Current Stock:

Have questions?

Ask an Expert

Raybestos Brakes Disc Brake Rotor P/N:980580R

$102.99

Description

Smooth, quiet stops for your Mazda CX-9 start with the Raybestos R-Line Front Disc Brake Rotor 980580R. This vented cast-iron rotor drops in as a direct-fit replacement for the 2007-2015 Mazda CX-9 (All engines), where the manufacturer confirms OE fit, form, and function for dependable braking.

OE Fit, Form & Function: Developed from OE samples and made with G3000-qualified material.
SAE Standard: Meets the SAE standard for tensile strength for structural integrity and a maximum service life.
Low Lateral Runout & Thickness Variation: A small lateral runout and thickness variation help reduce pedal pulsation and brake noise and support extended pad life.
Mill-Balanced Edges: Mill balanced and 100% validated to help minimize thickness variation, reduce vibration, and deliver smoother stopping.

Specs: 12.587 in (319.7 mm) outside diameter, 5 stud/lug holes, non-directional smooth surface, and no ABS tone ring included. Nominal thickness 1.102 in (28 mm); discard thickness 1.024 in (26 mm). Sold individually; this listing is for one rotor. The listed application uses two, so order 2 and replace both front rotors together as a matched pair for even, balanced braking. Made in China.

Interchange: Manufacturer part number 980580R.

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

Frequently Asked Questions

Will this rotor fit my vehicle?

It's a direct-fit front rotor for the 2007-2015 Mazda CX-9 (All engines). Check the Buyer's Guide tab to confirm it matches your exact vehicle before ordering.

Is this a vented or solid rotor?

It's a vented rotor with a non-directional, smooth braking surface.

How many rotors do I need?

This listing is for one rotor. The listed application uses two, so order 2 and replace both front rotors together as a matched pair for even, balanced braking.

Does it include an ABS tone ring?

No. The ABS Tone Ring Included attribute is listed as No, so no tone ring is supplied with this rotor.

What material is this rotor and what is its thickness?

It's cast iron with a nominal thickness of 1.102 in (28 mm) and a discard thickness of 1.024 in (26 mm). Outside diameter is 12.587 in (319.7 mm).
