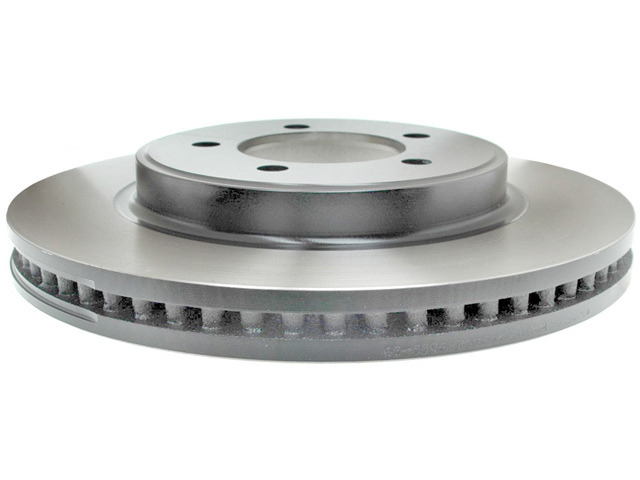

Built for everyday driving, the Raybestos R-Line 680416R is a front brake rotor and a direct-fit replacement for the 2006-2010 Ford Explorer, 2007-2010 Ford Explorer Sport Trac and 2006-2010 Mercury Mountaineer (all engines). Raybestos develops its R-Line rotors and drums for everyday driving conditions, with a focus on dependability, safety and performance.
This vented, conventional-type rotor is made of cast iron and has a non-directional braking surface.
Specifications: 12.009 in (305.05 mm) outside diameter, 1.176 in (29.85 mm) nominal thickness, 1.122 in (28.5 mm) discard thickness, 2.13 in (54.1 mm) overall height and a 3.228 in (82 mm) center hole. It has five 0.54 in (13.7 mm) mounting bolt holes on a 4.5 in (114.3 mm) bolt circle. The ABS tone ring is not included. Country of origin: China.
Sold individually, and this listing is for one rotor. The listed applications use two, so replacing both front rotors together as a matched pair is recommended for even, balanced braking. See the Buyer's Guide tab for complete fitment details.
Is this the right brake rotor for a 2006-2010 Ford Explorer?
Yes. The 680416R is listed as a front rotor for the 2006-2010 Ford Explorer. Check the Buyer's Guide tab for the other listed vehicles.
Do I need two rotors for a front brake job?
The listed applications use two front rotors, and this listing is for one. Replacing both sides together as a matched pair is recommended for even, balanced braking.
What are the key dimensions of this disc brake rotor?
It measures 12.009 in (305.05 mm) across, with a 1.176 in (29.85 mm) nominal thickness and a 1.122 in (28.5 mm) discard thickness. It has five bolt holes on a 4.5 in (114.3 mm) bolt circle.
Is an ABS tone ring included with the 680416R?
No, the ABS tone ring is not included. The rotor is a vented, conventional-type cast iron design with a non-directional braking surface.
What are signs a brake rotor may need replacing?
Signs include pedal pulsation, vibration or noise when braking, deep scoring, or thickness at or below the 1.122 in (28.5 mm) discard spec. Diagnose the cause before replacing parts.
