Brake Master Cylinder for 2004-2007 Toyota Highlander - Dorman M630322

$133.99

Vehicles this part fits

    Part number: M630322
    UPC: 885484128583
    Condition: New
    Weight: 1.80 LBS
    Item Package Quantity: 1
    $133.99
    Adding to cart… The item has been added

    Have questions?

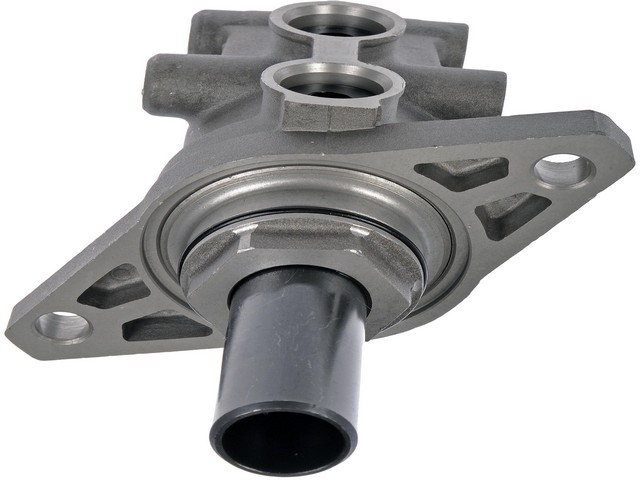

    Dorman - First Stop Brake Master Cylinder P/N:M630322
    Dorman - First Stop Brake Master Cylinder P/N:M630322
    $133.99
    $133.99

    Dorman M630322 brake master cylinder for the 2004-2007 Toyota Highlander turns pedal force into hydraulic pressure for the brakes.

    • Aluminum cylinder housing
    • EPDM rubber components that resist glycol-based brake fluid
    • Made entirely of new materials
    • Made to meet rigorous SAE International standards

    Quick facts

    • Part: Dorman M630322 brake master cylinder
    • Fits: 2004-2007 Toyota Highlander
    • Material: Aluminum
    • Condition: New

    A brake pedal that sinks or feels soft, a falling reservoir level or fluid around the cylinder body can point to a worn master cylinder. If the master cylinder is the cause, this one replaces it. With the engine off, look over the cylinder and nearby brake lines for wet fluid first, since a leaking line or caliper looks similar. A shop can pressure-test the system.

    Fits

    It is a direct-fit replacement for the 2004-2007 Toyota Highlander, which takes one master cylinder.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Bore diameter: 0.875 in
    • Outlets: 2
    • Outlet thread: M10 x 1.0, 1 mm pitch

    Build and materials

    • Material: Aluminum
    • Rubber components: EPDM
    • Condition: New
    • Country of origin: China

    In the box

    One brake master cylinder with its reservoir and sensor. Mounting hardware is not included.

    Interchange: 100-1694 · 13-3243 · 11-3243 · 130.44820 · 355-76163
    NM55329A · NM55340 · MC390861 · 4702848040 · 4702848041 · F142633 · MC142633

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    100-1694, 13-3243, 11-3243, 130.44820, 355-76163, NM55329A, NM55340, MC390861, 4702848040, 4702848041, F142633, MC142633

    Frequently Asked Questions

    Is the Dorman M630322 master cylinder right for the 2004-2007 Toyota Highlander?

    Yes, the Dorman M630322 is a direct-fit replacement for the 2004-2007 Toyota Highlander, and that vehicle takes one master cylinder.

    Does the M630322 master cylinder come with the reservoir and sensor?

    Yes, the Dorman M630322 comes with its reservoir and sensor. Mounting hardware is not included.

    What bore size does this aluminum brake master cylinder have?

    The bore diameter is 0.875 in. The aluminum body has two outlets with M10 x 1.0 threads and a 1 mm thread pitch.

    What can a sinking brake pedal mean with a master cylinder like this?

    A pedal that slowly sinks, fluid at the cylinder body or a low reservoir can mean the master cylinder is worn. A brake shop can test it, and brake problems call for prompt attention.

    Are the rubber parts in this master cylinder made for glycol-based brake fluid?

    Yes, all rubber components in this cylinder are made of EPDM compound, which resists glycol-based brake fluid.
