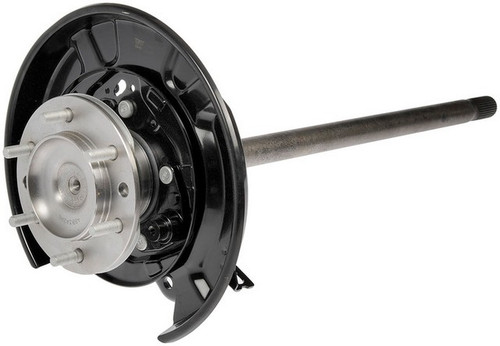

Dorman 926-137 rear left drive axle shaft for the 2010-2024 Toyota 4Runner and other vehicles carries drive torque from the differential to the wheel. Also called a drive axle shaft assembly, it skips the shop press a worn wheel bearing job usually needs.
- Dorman OE FIX loaded axle with the main components already assembled
- New axle shaft, wheel bearing, hub and backing plate pre-assembled and ready to install
- Rust-resistant coating
- Try-on, corrosion and material testing for long service life
Quick facts
- Part: Dorman 926-137 drive axle shaft
- Also called: drive axle shaft assembly
- Fits: 2010-2024 Toyota 4Runner and other vehicles
- Position: Rear left
- Material: Carbon steel
- Condition: New
A hum or growl from the rear wheel, play at the wheel or grease at the axle seal can mean wear. Before you replace this axle, rule out tire, brake and wheel-balance causes. Axles are normally changed as a pair, but this listing is one axle for the rear left; the rear right is a separate part.
Fits
It fits the 2010-2024 Toyota 4Runner, the 2010-2023 Lexus GX460 and the 2010-2014 Toyota FJ Cruiser. On the 2010-2024 Toyota 4Runner, the rear left takes one.
Specifications
Fit and size
- Position: Rear left
- Quantity per position: 1
- Length: 793 mm
- Shaft diameter: 33.6 mm
- Wheel bolt pattern: 6 lug x 139.7 mm
- Wheel stud thread: M12, 1.5 mm pitch
- Splines: 30 inboard, 30 outboard
Build and materials
- Material: Carbon steel
- Differential case design: Semi-float
- Rust-resistant coating: Yes
- ABS tone ring: not included
- Condition: New
- Country of origin: India
In the box
One axle with wheel studs, hub bearing, brake dust shield and backing plate, plus one axle housing seal and one axle housing O-ring. The ABS tone ring and brake hardware are not included.
Interchange: 4246060010 · 4650460091
Frequently Asked Questions
Does the Dorman 926-137 fit the 2010-2023 Lexus GX460?
Yes. Dorman 926-137 is a rear left drive axle shaft for the 2010-2023 Lexus GX460, and it also fits the 2010-2024 Toyota 4Runner and the 2010-2014 Toyota FJ Cruiser.
Does this rear left axle come with a wheel bearing and wheel studs?
Yes. It includes the hub bearing, wheel studs, brake dust shield and backing plate, plus an axle housing seal and O-ring. The ABS tone ring and brake hardware are not included.
What are the length and shaft diameter of the Dorman 926-137 axle?
The axle is 793 mm long with a 33.6 mm shaft and 30 splines at each end. The wheel bolt pattern is 6 lug x 139.7 mm.
Does this loaded axle need a shop press to install?
No. The wheel bearing, hub and backing plate come pre-assembled, so the bearing work that normally calls for a shop press is already done.
Does Dorman 926-137 replace number 4246060010?
Yes. Dorman 926-137 is listed as a replacement for 4246060010 and also for 4650460091.
